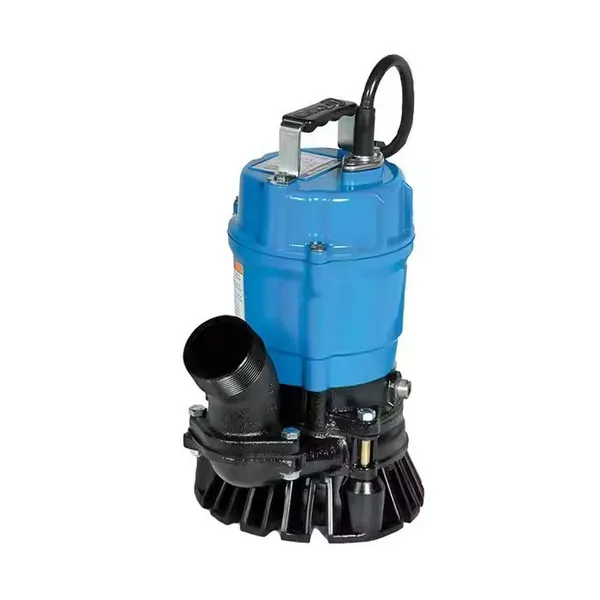

Cast Iron Submersible Trash Water Pump is powerful enough to get the job done and compact to use in almost any setting, whether it's at home, in the office or at a construction site. Made with reliable and innovative materials, and is sure to meet your needs.
Handles sand, debris and solids up to 1/4in.
Ductile cast iron housing for durability and corrosion resistance
Double mechanical seals for long life
Agitator mixes and suspends solids to minimize opportunity for clogging
Tsurumi's patented oil lifter provides lubrication of the seal faces down to 1/3 of normal oil level and extends seal life by ten times
Urethane rubber-coated impeller is more abrasion resistant than cast iron impellers and has a life expectancy three times longer than cast iron impellers
Built-in Thermal Protector
Performance range capacity head: 5ft-34ft.
Max. water temp: 104°F
Stainless steel shaft
Aluminum alloy motor frame
304 stainless steel fasteners
Silicon carbide upper and lower seals
Nitril Buna rubber elastomers
Prelubricated, double-shielded bearings
Class E insulation
Manual operation
Model | Flow (m3/h) | Head (m) | Power (kW) | Voltage (V) | Frequency (Hz) | Speed (r/min) | OutletDia (mm) |
WQD6-16-0.75 | 6 | 16 | 0.75 | 220 | 50 | 2860 | 50 |
WQ6-16-0.75 | 6 | 16 | 0.75 | 380 | 50 | 2860 | 50 |
WQD8-18-1.1 | 8 | 18 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-18-1.1 | 8 | 18 | 1.1 | 380 | 50 | 2860 | 50 |
WQD8-16-1.1 | 8 | 16 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-16-1.1 | 8 | 16 | 1.1 | 380 | 50 | 2860 | 50 |
WQD8-26-1.1 | 8 | 26 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-26-1.1 | 8 | 26 | 1.1 | 380 | 50 | 2860 | 50 |
WQD10-16-1.1 | 10 | 16 | 1.1 | 220 | 50 | 2860 | 50 |
WQ10-16-1.1 | 10 | 16 | 1.1 | 380 | 50 | 2860 | 50 |
WQD12-18-1.5 | 12 | 18 | 1.5 | 220 | 50 | 2860 | 50 |
WQ12-18-1.5 | 12 | 18 | 1.5 | 380 | 50 | 2860 | 50 |
WQD15-18-1.5 | 15 | 18 | 1.5 | 220 | 50 | 2860 | 50 |
WQ15-18-1.5 | 15 | 18 | 1.5 | 380 | 50 | 2860 | 50 |
WQD8-20-1.5 | 8 | 20 | 1.5 | 220 | 50 | 2860 | 50 |
WQ8-20-1.5 | 8 | 20 | 1.5 | 380 | 50 | 2860 | 50 |
WQD15-15-1.5 | 15 | 15 | 1.5 | 220 | 50 | 2860 | 50 |
WQ15-15-1.5 | 15 | 15 | 1.5 | 380 | 50 | 2860 | 50 |
WQD30-10-1.5 | 30 | 10 | 1.5 | 220 | 50 | 2860 | 50 |
WQ30-10-1.5 | 30 | 10 | 1.5 | 380 | 50 | 2860 | 50 |
WQD8-40-1.5 | 8 | 40 | 1.5 | 220 | 50 | 2860 | 50 |
WQ8-40-1.5 | 8 | 40 | 1.5 | 380 | 50 | 2860 | 50 |
