Application:

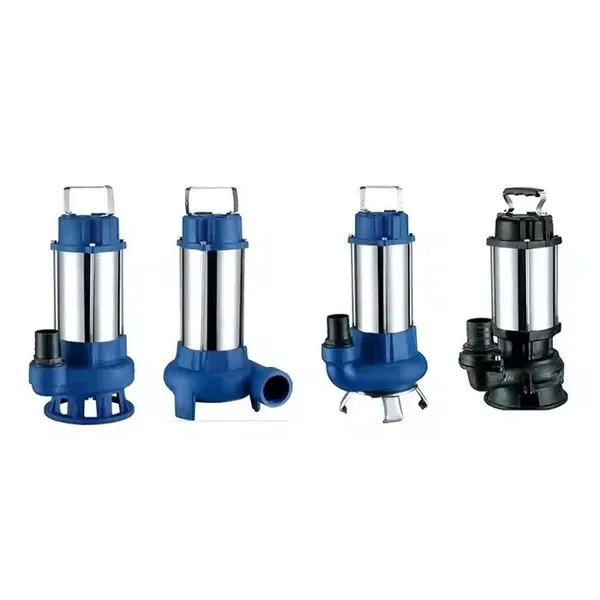

WQDKS type sewage pumps widely used in agriculture, architecture,
mine, environment protection and industry, such as drainage slurry,
waste water, which contained short fibre, long fibre, wastepaper,
sand and so on, it is also an ideal equipment for irrigation.
Operating conditions:
*The maximum deep it is allowed in water is 5m from its center of impeller;
*Max. medium temperature: +40
*Trans medium's PH:4-10;
*Kinematics viscosity of the trans medium is:7*10-7-23*10-8m2/s;
*Density of the trans medium limit;1.2*103kg/m3;*The solid diameter is about35mm.
Motor:
*Closed, externally ventilated
*Insulation Class B
*Protection IP68
Material:
*Pump body: Cast iron
*Impeller: Superior steel / Cast iron
*Shaft with rotor: Superior steel
*Mechanical seal: Stainless steel/Carbon-ceramic
*Thermal protector
*Motor housing:Stainless steel
*Single phase 220V-230V/50Hz
*Three phase 380V/50Hz
*Three phase 220V/440/60Hz if request
Model | Flow (m3/h) | Head (m) | Power (kW) | Voltage (V) | Frequency (Hz) | Speed (r/min) | OutletDia (mm) |
WQD6-16-0.75 | 6 | 16 | 0.75 | 220 | 50 | 2860 | 50 |
WQ6-16-0.75 | 6 | 16 | 0.75 | 380 | 50 | 2860 | 50 |
WQD8-18-1.1 | 8 | 18 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-18-1.1 | 8 | 18 | 1.1 | 380 | 50 | 2860 | 50 |
WQD8-16-1.1 | 8 | 16 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-16-1.1 | 8 | 16 | 1.1 | 380 | 50 | 2860 | 50 |
WQD8-26-1.1 | 8 | 26 | 1.1 | 220 | 50 | 2860 | 50 |
WQ8-26-1.1 | 8 | 26 | 1.1 | 380 | 50 | 2860 | 50 |
WQD10-16-1.1 | 10 | 16 | 1.1 | 220 | 50 | 2860 | 50 |
WQ10-16-1.1 | 10 | 16 | 1.1 | 380 | 50 | 2860 | 50 |
WQD12-18-1.5 | 12 | 18 | 1.5 | 220 | 50 | 2860 | 50 |
WQ12-18-1.5 | 12 | 18 | 1.5 | 380 | 50 | 2860 | 50 |
WQD15-18-1.5 | 15 | 18 | 1.5 | 220 | 50 | 2860 | 50 |
WQ15-18-1.5 | 15 | 18 | 1.5 | 380 | 50 | 2860 | 50 |
WQD8-20-1.5 | 8 | 20 | 1.5 | 220 | 50 | 2860 | 50 |
WQ8-20-1.5 | 8 | 20 | 1.5 | 380 | 50 | 2860 | 50 |
WQD15-15-1.5 | 15 | 15 | 1.5 | 220 | 50 | 2860 | 50 |
WQ15-15-1.5 | 15 | 15 | 1.5 | 380 | 50 | 2860 | 50 |
WQD30-10-1.5 | 30 | 10 | 1.5 | 220 | 50 | 2860 | 50 |
WQ30-10-1.5 | 30 | 10 | 1.5 | 380 | 50 | 2860 | 50 |
WQD8-40-1.5 | 8 | 40 | 1.5 | 220 | 50 | 2860 | 50 |
WQ8-40-1.5 | 8 | 40 | 1.5 | 380 | 50 | 2860 | 50 |
