High Accuracy Fast Photosynthetic Testing Plant Photosynthesis Meter

High Accuracy Fast Photosynthetic Testing Plant Photosynthesis Meter thumbnail-1
High Accuracy Fast Photosynthetic Testing Plant Photosynthesis Meter photo-1
US$ 3560 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Model Number:
NY-1020
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NANBEI
Place of Origin China
Model Number NY-1020

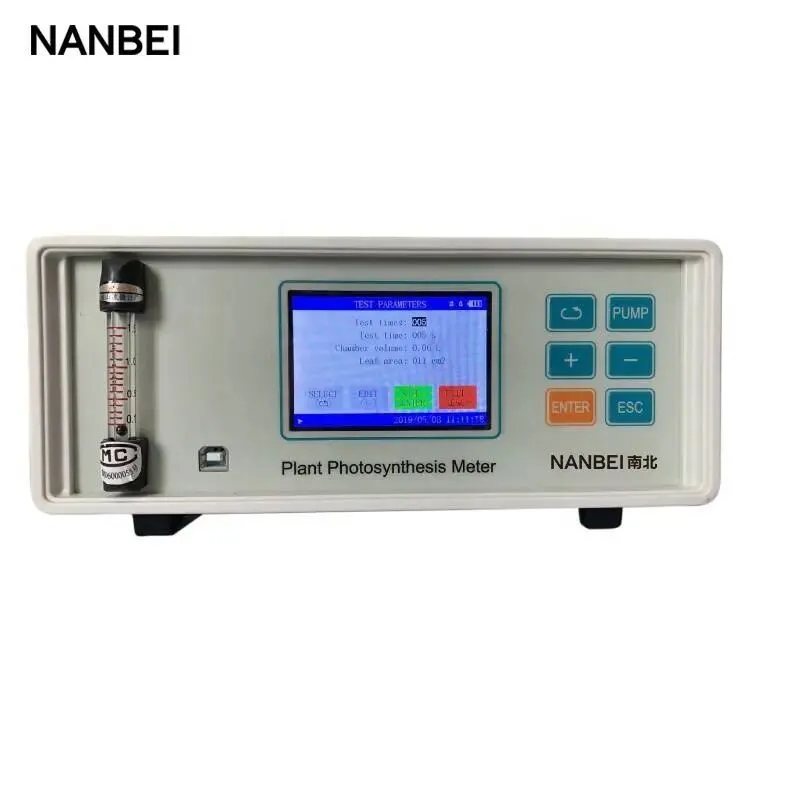

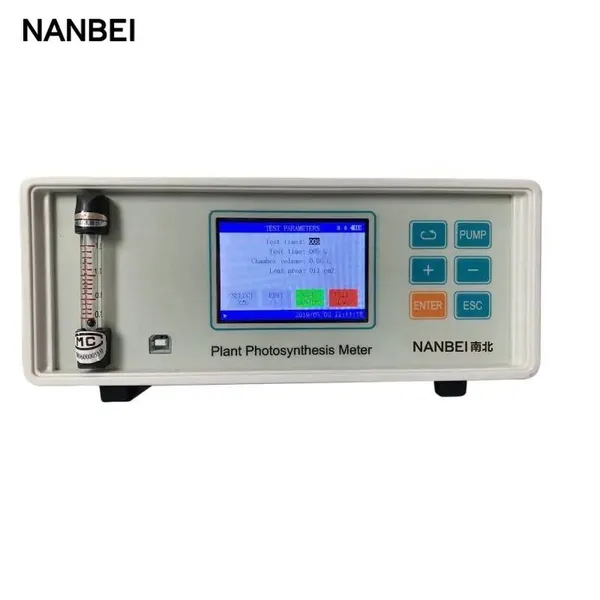

Portable Plant Photosynthesis Meter

NY-1020 Plant photosynthesis meter can test CO2,Air temperature/humidity,plant leaf temperature,illumination,air flow etc parameters,then calculate plant photosynthetic rate,inspiration rate,cell CO2 concentration and stomatal conductance these four main plant photosynthesis index,widely used in biology,agriculture,garden,forestry,insect,microbiology,animals fields.

Specification

Test parameter：

CO2

Leaf temperature

PAR

Leaf chamber temperature

Leaf chamber humidity

Calculation：

Leaf photosynthetic rate

Leaf transpiration rate

Cell CO2 concentration

Stomatal conductance

Water use efficiency

Parameters

CO2 analysis
Non disersive infrared CO2 analysis，measuring range：0-2000ppm，Resolution：0.1ppm；
Accuracy＜0.5ppm when 300ppm, Accuracy 1ppm when 300-800ppm，
Accuracy 3ppm when 800-2000ppm
Leaf chamber temperature
Germany Hareaus high arrucate digital temperature sensor,
measuring range ：0-60℃，
Resolution：0.1℃，Error : ±0.2℃
Leaf temperature
Platinum resistor，
measuring range：0-60℃，Resolution：0.1℃，Error :±0.2℃
Humidity
Measuring range : 0-100%，Resolution：0.1%，Error≤ 1%
PAR
With a fixed filter silicon photocell, measuring range：0-2850µmolm ㎡/s
Respond wavelength range
400～700nm
Flow measuring
glass rotor flow meter,
air pumo flow≤1.5L.
Error：3%，
leaf chamber size
55×20mm，
other size can be customized
Operation environment
Temperature : 0℃—60℃，
Relative humidity：0-100%（No water vapor condensation）
Powr supply
DC8.4V Li-ion battery，7-9hours contineously work
Datum storage
2GB SD card,can be extended to 4G SD card,can stock thousands of data
Display
320×160 dot-matrix
Size
260×260×130mm
