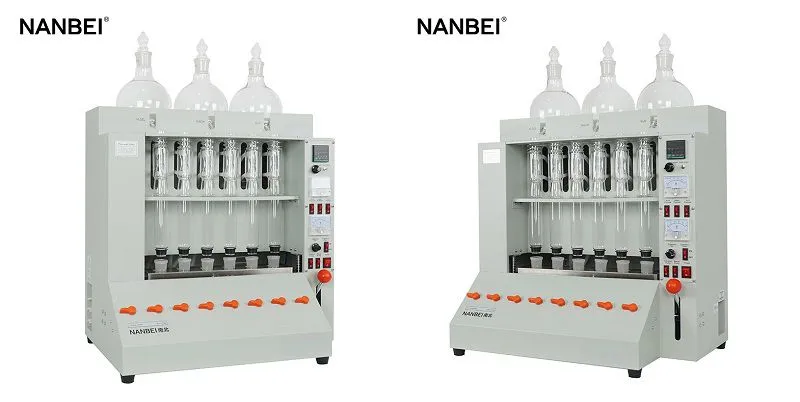

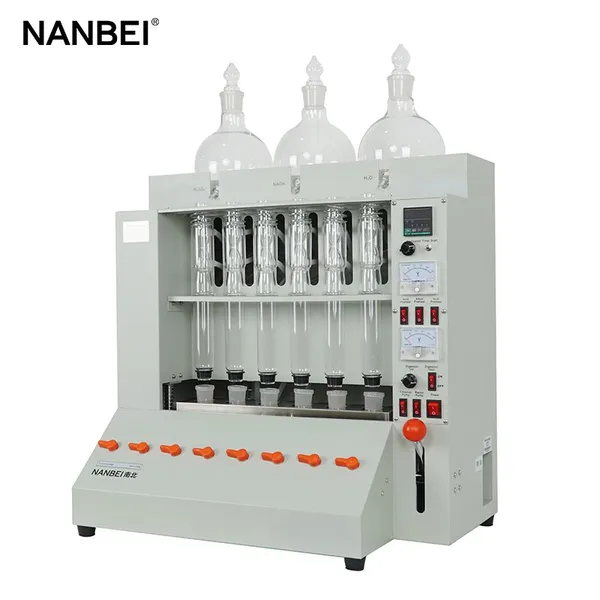

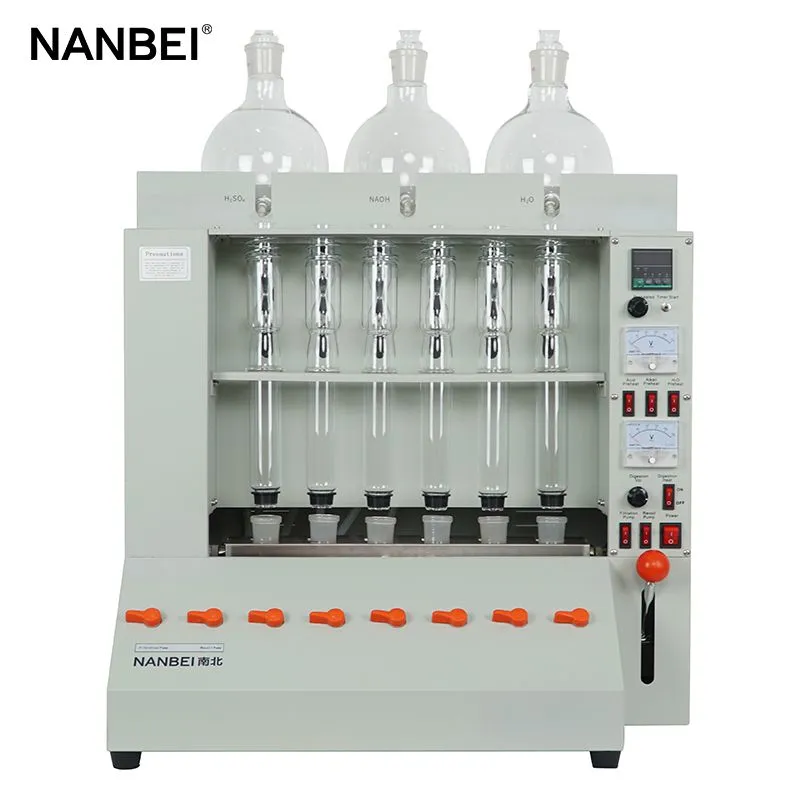

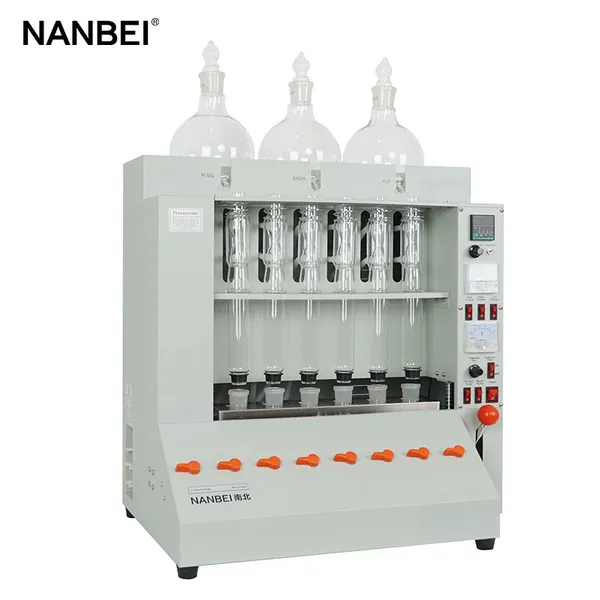

Agriculture Laboratory Food Grain Crude Fiber Analyzer

Agriculture Laboratory Food Grain Crude Fiber Analyzer

CXC-06 Raw Fiber Analyzer assimilates samples based on the common acid & alkali assimilation method, and gets raw fiber content by weight determination which is suitable for testing raw fiber content of all kinds of feed, foodstuff, grain, food and so on.

The instrument adopts acid and alkali of accurate concentration and assimilates under certain conditions. After removing the soluble substance by alcohol and burning the rest solution at high temperature, the residue minus the mineral is called raw fibre.

However, it’s not an actual chemical substantiality, while it is only a measured compendium ingredient under legal compelled regulation. Fiber is its main content, while a little fiber and xylogen are also contained

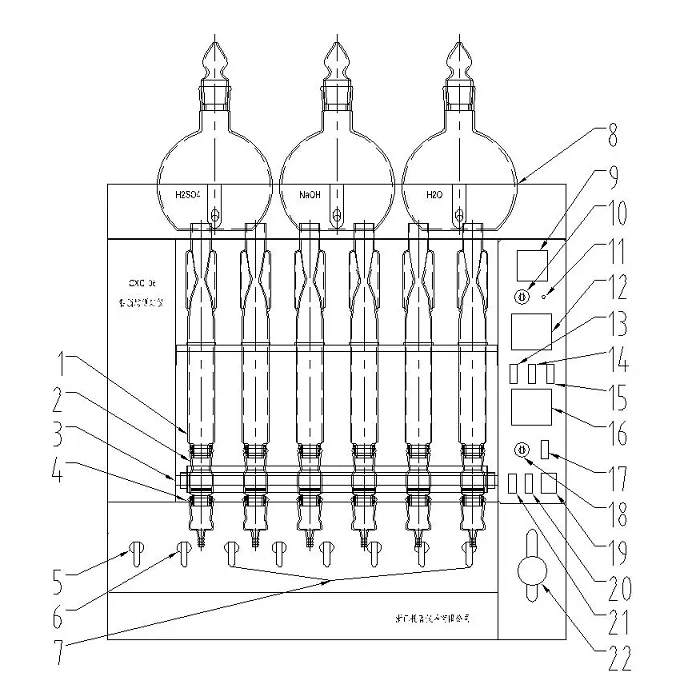

Specification

1.Assimilation pipe       2. Glass sand core crucible    3. calefaction tube

4. Filtration bottom cup    5. Filtration valve           6. Recoil valve

7. Corresponding valve     8. Flask with valve           9. Timer

10. Preheat voltage adjustment knob   11. Timer start    12. Preheat voltmeter

13. Acid preheat switch                         14. Alkali preheat switch

15. H2O preheat switch                         16.assimilation voltmeter

17. Digestion heat switch                   18.digetion voltage adjustment knob

19. Power switch on/off                        20.Recoil pump switch

21. Filtration pump switch                      22. Up &down handle

(Turn on the filtration switch by lift and pull, while turns off it by pull it to the bottom and press)
