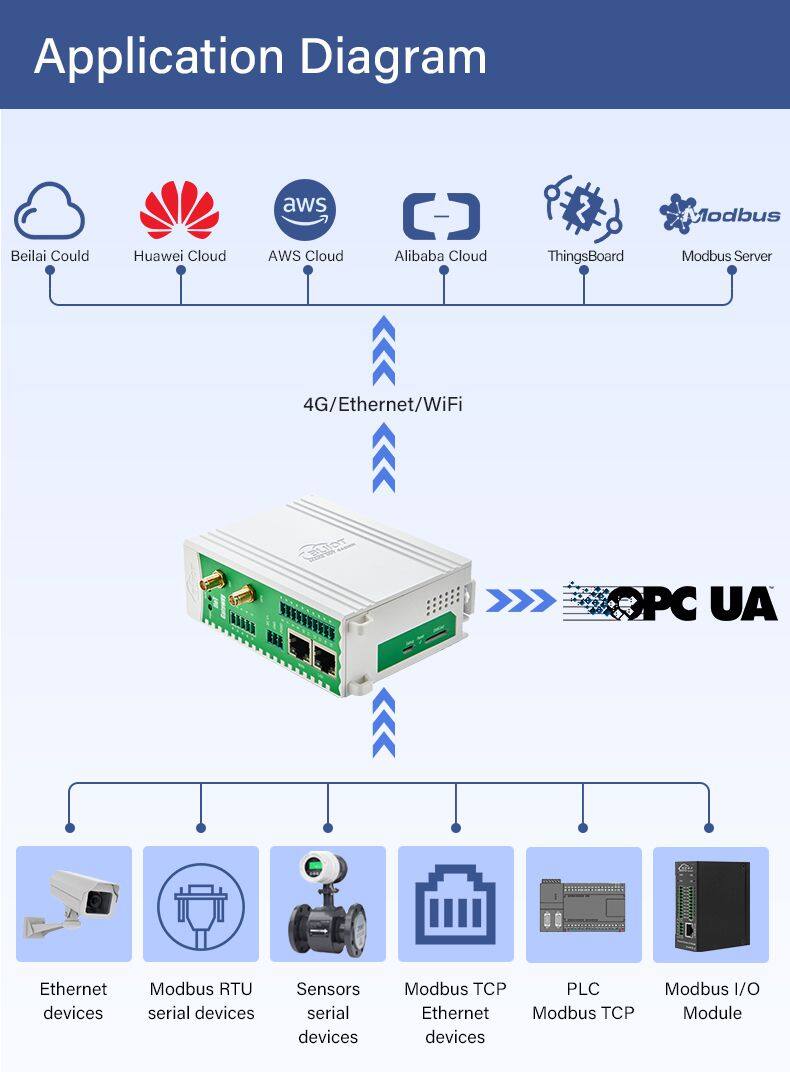

PLC to OPC UA Industrial IoT Gateway

System

Processor

Clock speed 300Mhz

Storage

128MB

Flash memory

64MB

Power Supply

Input voltage

DC 9~36V

Power consumption

Normal: 85mA@12V, MAX: 117mA@12V

Wiring

Anti-reverse connection

Ethernet Ports

Specification

2CH RJ45, 10/100Mbps, adaptive MDI/MDIX

Protection

ESD: ±6kV(Contact), ±8kV(Air)

EFT: 1kV, 5kHz

Serial Ports

QTY

2CH RS485 or RS232

Baud Rate

2400bps-115200bps

Data Bit

7, 8

Parity Bit

None, Even, Odd

Stop Bit

1, 2

Protection

ESD: ±6kV(Contact), ±8kV(Air)

EFT: 1kV, 5kHz

SIM Card Slot

QTY

1

Specification

Drawer type slot, support 1.8V/3V SIM/UIM card (NANO)

Protection

Built-in 15KV ESD Protection

USB Ports

QTY

1CH program downloading, 1CH program debugging

Specification

Micro USB OTG

Protection

Over Current Protection

4G(Optional)

Antenna QTY

1

Antenna type

SMA

L-E

GSM/EDGE:900,1800MHz

WCDMA:B1,B5,B8

FDD-LTE:B1,B3,B5,B7,B8,B20

TDD-LTE:B38,B40,B41

L-CE

GSM/EDGE:900,1800MHz

WCDMA:B1,B8

TD-SCDMA:B34,B39

FDD-LTE:B1,B3,B8

TDD-LTE:B38,B39,B40,B41

L-A

WCDMA:B2,B4,B5

FDD-LTE:B2,B4,B12

L-AU

GSM/EDGE:850,900,1800MHz

WCDMA:B1,B2,B5,B8

FDD-LTE:B1,B3,B4,B5,B7,B8,B28

TDD-LTE:B40

L-AF

WCDMA:B2,B4,B5

FDD-LTE:B2,B4,B5,B12,B13,B14,B66,B71

CAT-1

GSM:900,1800

FDD-LTE:B1,B3,B5,B8

TDD-LTE:B34,B38,B39,B40,B41

GPS(Optional)

Antenna QTY

1

Antenna type

SMA

Tracking sensitivity

> -148 dBm

Plane position accuracy

2.5m

Protocol

NMEA-0183 V2.3

WiFi(Optional)

Antenna QTY

1

Antenna type

SMA

Protocol

802.11a/b/g/n(mixed)

Mode

Client mode

Signal path

2.4G Channel 1 - 13, 5G Channel 36 - 165

Security

Open, WPA, WPA2

Encryption

AES, TKIP, TKIPAES

Speed

150Mbps(Max)

Transmission distance

Outdoor open area, up to 20 meters

SSID

Support

Indicator

PWR

Always on when device powered on

Off when device lose power

RUN

Flickering when system running

Off when system shutdown

LINK

Flickering when Ethernet communication; Always on when 4G or WiFi communication; OFF when Ethernet, 4G, WiFi are all disconnected.

Software

Internet Protocol

IPV4, TCP/UDP, DHCP, DNS

IP Retrieving

Static IP/DHCP

Transmission

Support Transparent Transmission

DNS

Support Domain Name Resolution

Configuration

PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10

Internet Cache

Transmitting: 8Kbyte; Receiving: 8Kbyte

Login Package

Support custom login package

Heartbeat Package

Support custom heartbeat package

Safety Certification

MTBF

≥100,000 hours

EMC

EN 55022: 2006/A1: 2007 (CE &RE) Class B

IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3

Others

CE, RoHS, FCC

Environment

Working

-40~55℃, 5~95% RH

Storage

-40~70℃, 5~95% RH

Others

Shell

Plastic

Dimension

30mm×83mm×110mm(LxWxH)

IP Grade

IP30

Net Weight

133g

Installation

DIN-Rail Mounting, Wall-Mounting

BL104

1

1

2

×

×

×

BL104L

1

1

2

×

√

×

BL104LG

1

1

2

×

√

√

BL104W

1

1

2

√

×

×
