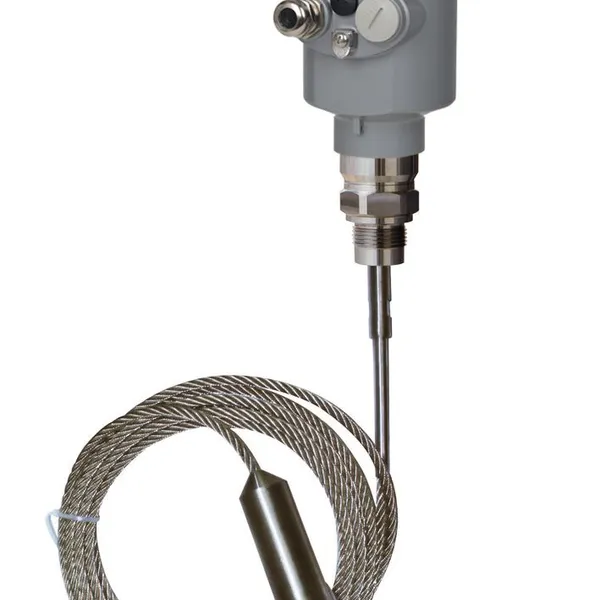

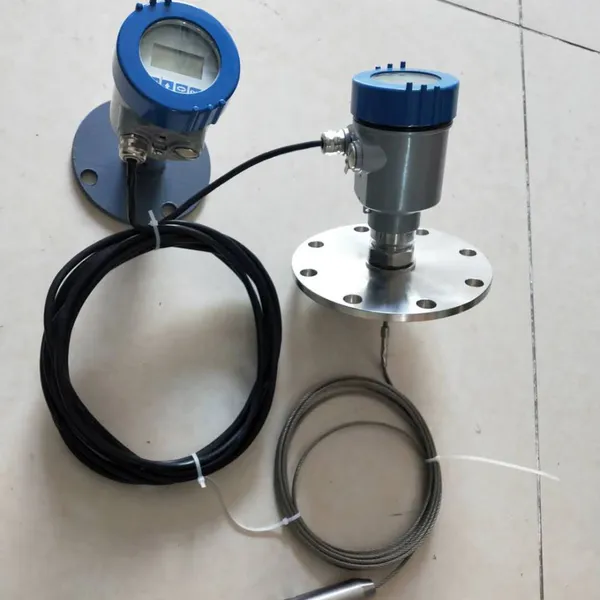

Guided Wave Radar Level Transmitter
US$ 200 - 350
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hongguang instrument
Place of Origin:
China
Model Number:
HGRD700
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
Brand Name
Hongguang instrument
Place of Origin
China
Model Number
HGRD700
Guided Wave Radar Level Transmitter is the kind of measuring instrument that is based on the principle of time travel. The radar wave travels at the speed of light, and its running time can be converted into a level signal by the electronic components. The probe emits high-frequency pulses which spread along the cable, and the pulses are reflected back when they encounter the material surface and received by the receiver inside the meter. The distance signal is then converted to the level signal.
Medium: solid or liquid
Range: 0-30m
Process connection: thread or flange
Temperature range: -40 to 250 Deg. C
Pressure: max 40 bar
Accuracy: +/-1 mm
Output: 4-20mA, HART
Power supply: 24V DC
