Working Principle

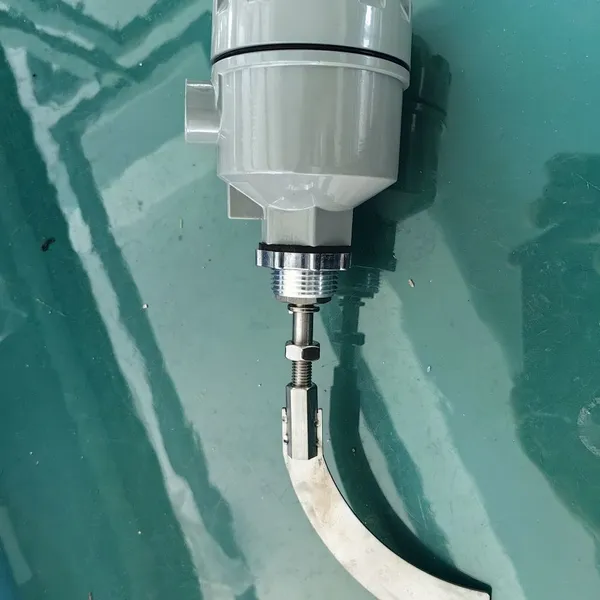

The rotary paddle level switch has an instrument motor installed in the junction box, which uses a clutch device to connect the transmission shaft with blades at the other end. When there is no contact with the material, the blade and the motor rotate coaxially along the transmission shaft. When the blade contacts the material, the shaft is blocked, causing the motor to stop rotating and an alarm signal is issued.
Product Features
It has a good shaft sleeve seal design, which eliminates the phenomenon of fine powder stuck on the shaft and makes the measurement more reliable.
The sturdy shell is suitable for any environment in the field.
A variety of customized products are available, and the selection is no longer difficult.
Four torque adjustment gears, suitable for most specific gravity mediums.
Applicable Places
Due to its solid and firm structure, it is very suitable for measuring powdery and granular mediums such as cement, sand and gravel, grain, feed, and pharmaceuticals.
