Fitness Puller Testing Machine，Fitness Tension Rope Testing Equipment

Fitness puller testing machine，Fitness tension rope testing equipment

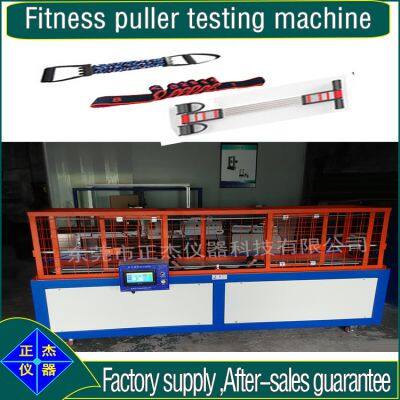

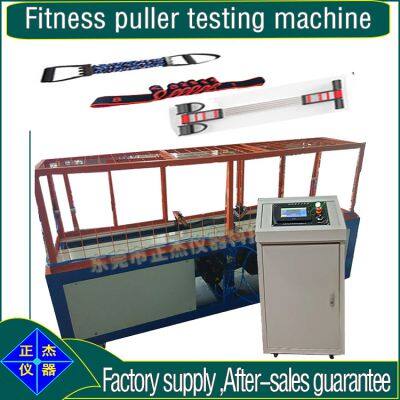

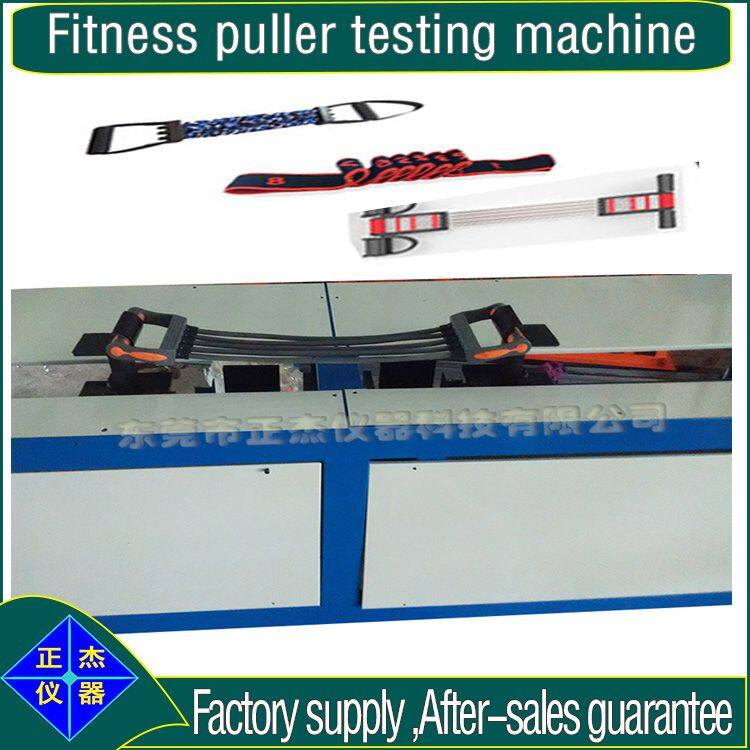

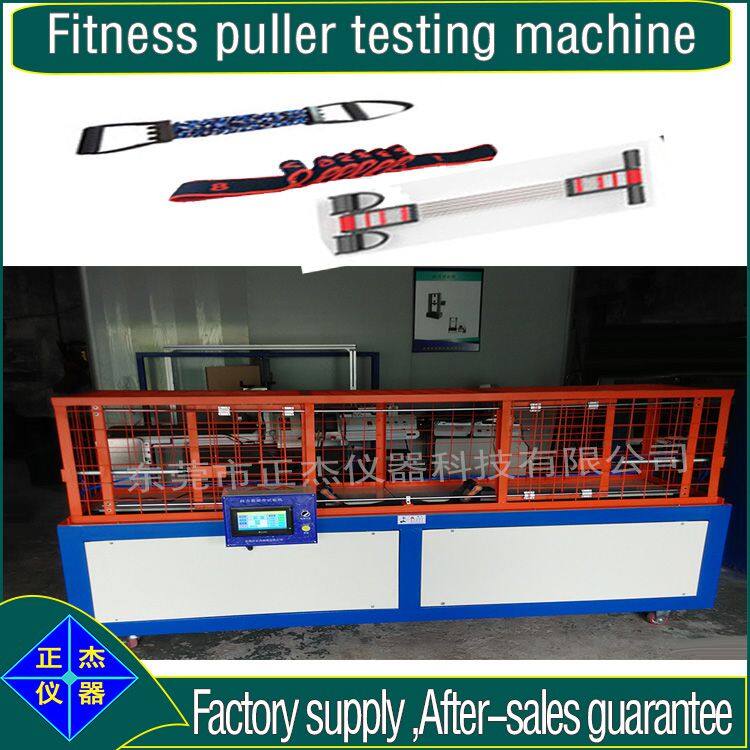

ZJ-608 repeated tensile life testing machine is used for repeated tensile durability test of tensile apparatus by relevant manufacturers and quality inspection departments. The machine adopts the touch screen full Chinese display, PLC program control, easy to use, real-time display of tensile force value, test times, test speed and frequency. The hardware adopts stepper motor + driver +PLC + touch screen + force sensor with high precision. Controlled by the program, you can set the stretch length, set the number of stretches, reach the set number of automatic stop, pull off automatic stop. The synchronous wheel and synchronous belt drive can be used to stretch to both sides, with low noise and ensure the test speed.

Power supply: AC 220V/50Hz

Configuration: Stepper motor + driver + PLC + LCD screen mode

Force sensor: 0-200KG, accuracy 1%;

Equipment load: 0-100KG;

Test stroke: 0-1500mm on both sides; '

Test speed: 0-60 times/min adjustable. Once per second
