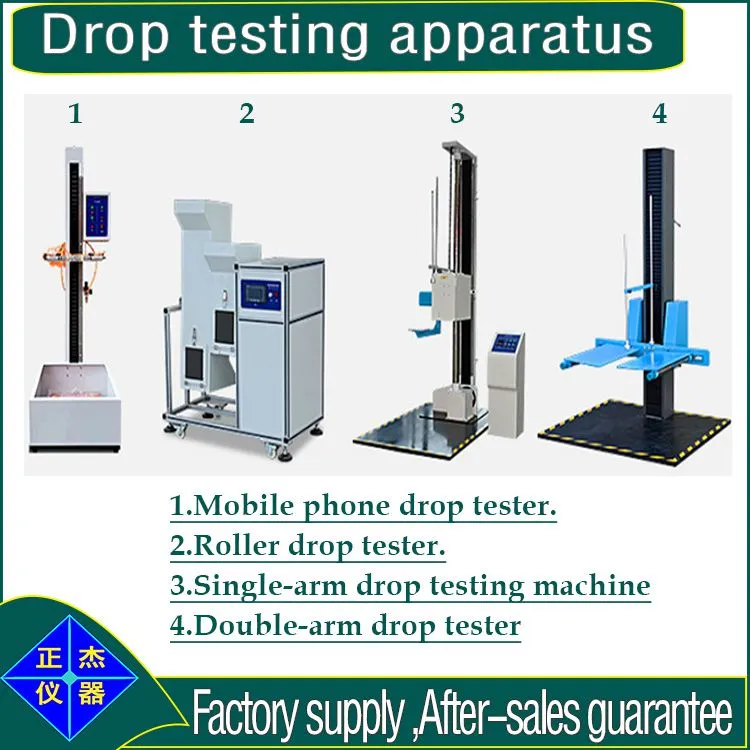

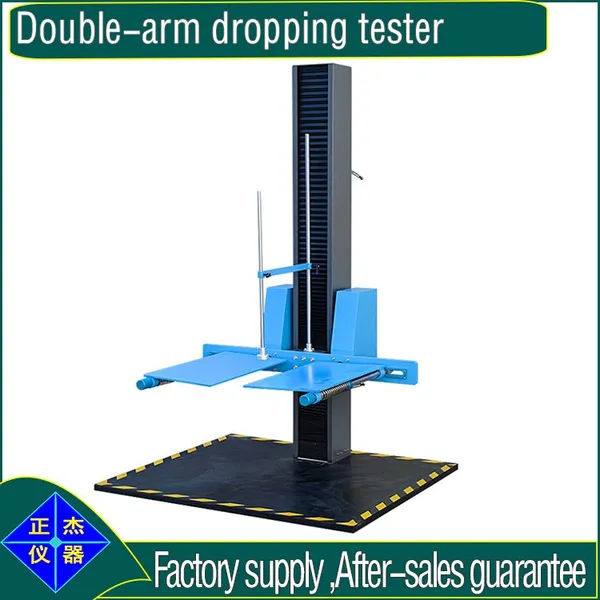

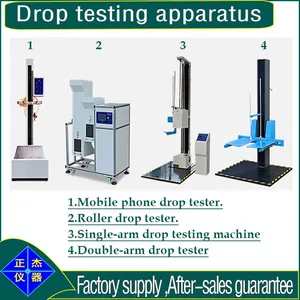

Help CenterMobile Phone Drop Tester Roller Drop Tester Single-arm Drop Testing Machine Double-arm Drop Tester
Related Products
-
Universal Testing Machine，Tension Tester， Pressure Measuring InstrumentCNY 1000 - 2000MOQ: 1 Piece -

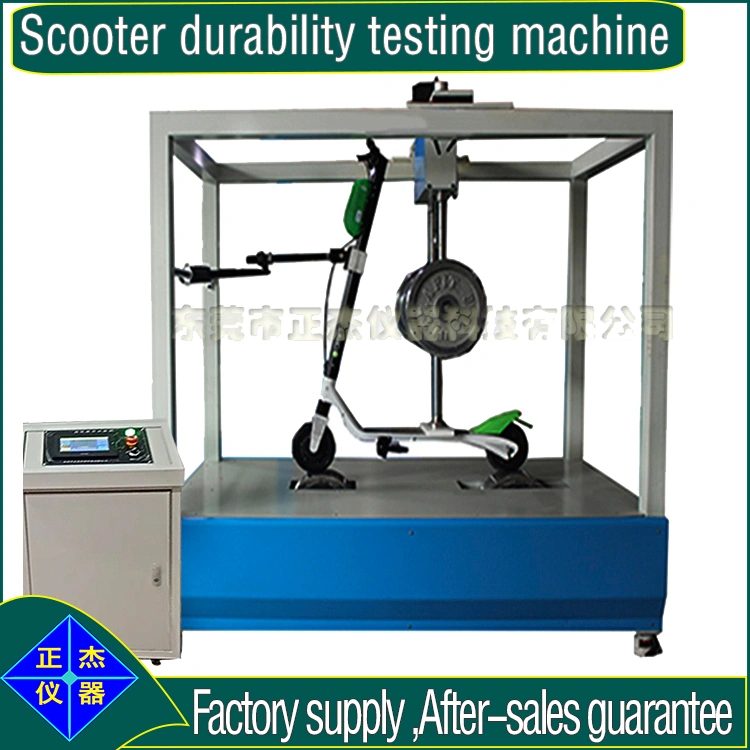

Scooter Durability Testing Machine EN 14619：2015CNY 50000 - 60000MOQ: 1 Piece
-
Children's Scooter Testing Equipment，Scooter Dynamic Testing MachineUS$ 20000 - 50000MOQ: 1 Piece
-
Electric Unicycle Dynamic Testing Machine，Single Wheel Sensing Car Detection EquipmentCNY 10000 - 20000MOQ: 1 Piece
-
Fitness Puller Testing Machine，Fitness Tension Rope Testing EquipmentCNY 10000 - 20000MOQ: 1 Piece
-
This machine is specially designed to test the damage of product packaging by falling, and to evaluate the impact strength during transportation.
2. Applicable design standards:
ISO2248 JISZ0202-87 GB/T4857.5-92
3. Introduction Editor:
Single-wing drop testing machine can be free drop test on the surface, Angle and edge of the package, using single-arm double-column structure, with electric reset, electronic control drop and electric lifting device: easy to use; Unique hydraulic buffer device greatly improves the service life of the machine, stability and safety single-arm setting, can easily place the product, drop Angle impact surface and bottom plane Angle error is less than or equal to 5°.
1, drop height mm: 300-1500 adjustable
2, the maximum weight of the specimen kg: 0-80Kg;
3. Bottom plate thickness: 10mm (solid iron plate)
4, the maximum size of the specimen mm: 800 x 800
5, impact panel size mm: 1700 x 1200
6. Arm size mm: 160*250
7, drop height error: ±10mm
8, the test bench dimensions mm: about 1700 x 1200 x 2315
9, height display; LED instrument digital display
10, test mode: face, Angle, edge all-round drop
11. Transmission mode: electric drive
12. Impact panel parallel error: ≤1 degree
13. The Angle error between the falling surface and the level in the falling process: ≤1 degree
14. Power supply: 380V1, AC380V 50HZ
15. Power: 1.85KWA
16. Net weight kg: about 300kg.
