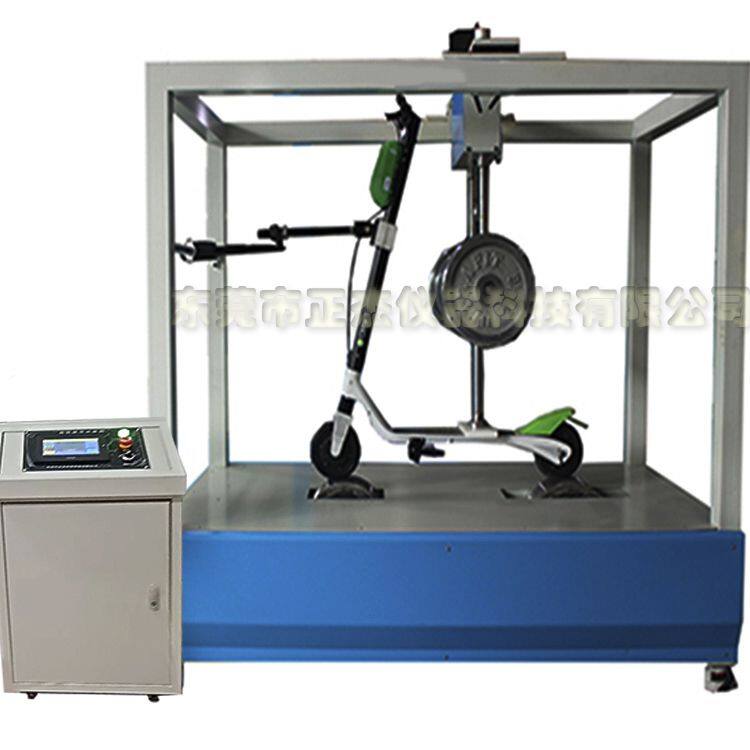

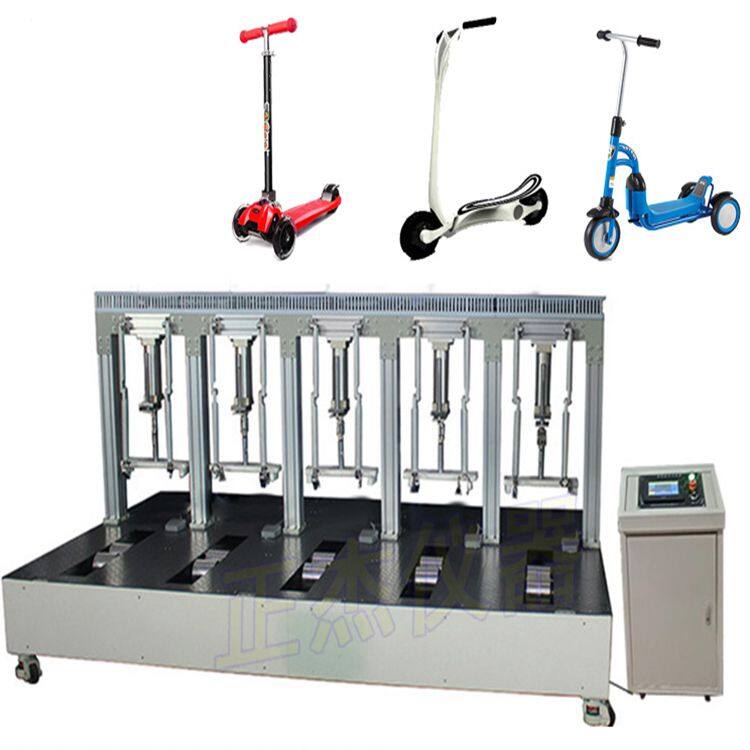

Scooter fatigue Tester (Double drum)
1. Scope of use:
It is mainly used to test the degree of damage to various parts such as wheels and frames after a certain time at a certain speed of scooters. Provide for manufacturers
The basis for improvement.
2. Design basis: EN17128
Three test methods:

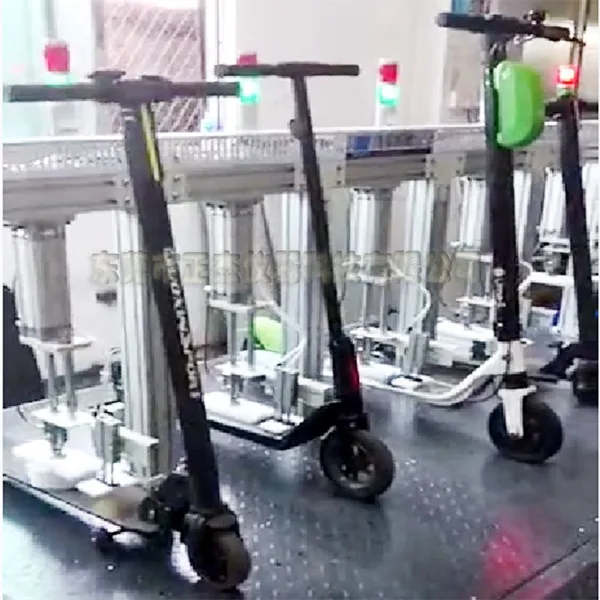

1) During the test, the scooter is fixed on the test machine in accordance with the standard method, and the position of the rear wheel can be manually adjusted by the fixture
Position to fit the size of the frame;
2) Fix the rear wheel on the special fixture, adjust the state of the various components of the scooter, so that the state of the frame is the same as the actual riding;
3) Adjust the position of the loading cylinder to meet the standard requirements,
4) Fix each adjustable part of the scooter to prevent loosening during the test and affect the test.
5) Start the test procedure to start the test, the test reaches the set mileage or the specimen is damaged, the machine will automatically stop the test and retain the test results.
6) The driving range can be measured in the active mode of the scooter.
Iv. Main technical indicators:

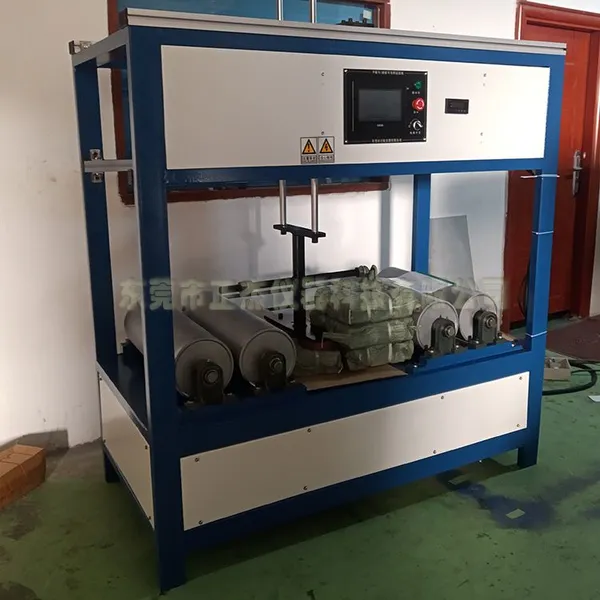

1) Drum diameter: Φ320mm
2) Beating block specifications: 10*30 5*25
3) Number of beating blocks: 6
4) Driving mode: the car itself
5) Loading mode: cylinder loading, loading force
7) Control mode: digital display speed, number of impacts, mileage
8) Applicable scooter size specification: wheel base 500mm----13000mm
9) Test mileage: 0-999999km can be set, automatically retain the test results
10) Database function: automatically record each measurement result to facilitate analysis and provide evidence
11) Power supply: AC220V
12) Can test the climbing function, equipped with 25Nm magnetic powder brake
13) Real-time monitoring range and speed detection
14) The foot wheel is installed at the bottom of the equipment to facilitate moving
15) The main body of the machine is a steel component, high strength, not easy to deformation.
16) The base of the machine is solid steel, with good stability, equipped with reinforcing bars and water transfer flat feet.
17) Electrostatic spraying of machine appearance, electroplating of other parts, high rust prevention ability, beautiful appearance
