Help CenterOPC UA IO System BL206Pro for Digital Transformation Supports MQTT /Modbus TCP/OPC UA Protocol Data Collection and Upload to Cloud Platform
Related Products
-
MQTT Intelligent I/O System BL206 With Programmable Logic Control for IoT SolutionsUS$ 84.24 - 126.35MOQ: 1 Piece -
BACnet/IP I/O System BL207 for Smart Building SystemsUS$ 86.07 - 127.27MOQ: 1 Piece
-
BACnet/IP IO System BL207 for BAS Management and Control of Building SystemsUS$ 86.07 - 127.27MOQ: 1 Piece
-
BACnet/IP IO System BL207 for HAVCUS$ 86.07 - 127.27MOQ: 1 Piece
-
BACnet/IP IO System BL207 for Building Automation SystemsUS$ 86.07 - 127.27MOQ: 1 Piece

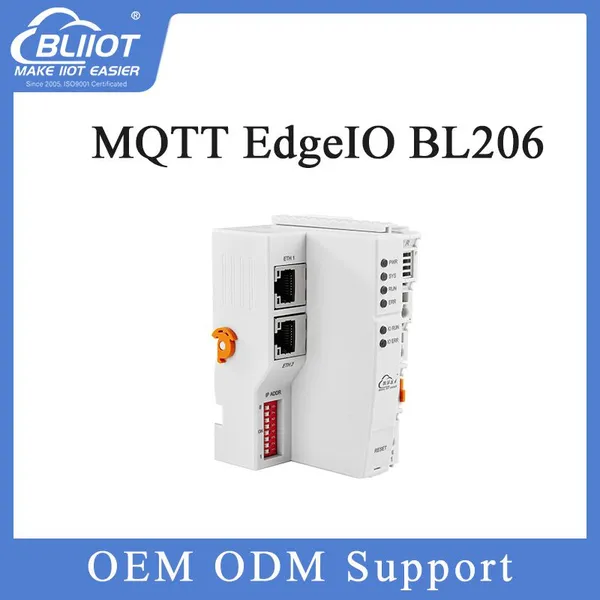

The BL206Pro EdgeIO controller is a data acquisition and control system based on a powerful 32-bit microprocessor design with Linux operating system, supports Modbus, MQTT, OPC UA protocols for quick access to on-site PLC, DCS, PAS, MES, Ignition, and SCADA as well as ERP systems, as well as quick connectivity to a number of cloud platforms such as AWS Cloud, Thingsboard, Huawei Cloud, and Ali Cloud.
The I/O system supports programmable logic control, edge computing, and customized applications, it is widely applicable to a variety of IIoT and industrial automation solutions.
The BL206Pro distributed I/O system consists of 3 parts: Controller, I/O modules and terminal module.
The communication between the I/O and the field devices (eg PLC) takes place via the Ethernet port of the controller, and the communication between the controller and the I/O modules takes place via the local bus. The two Ethernet ports are internally integrated with a switch function, which can establish a linear topology without the need for additional switches or hubs.
The system needs to use the power module to provide 24VDC system voltage and 24VDC field voltage. Since two independent power supplies are used, the field voltage input interface and system voltage input interface of BL206Pro controller are electrically isolated from each other.
When assembling fieldbus node modules, each I/O module can be arranged in any combination, and it is not required to be grouped by module type.
A terminal module must be plugged into the end of a fieldbus node to ensure correct data transmission.
High reliability, easy expansion, easy setting, and convenient network wiring, these capabilities let users efficiently adapt the BL206Pro I/O system to a variety of complex industrial solutions.
The I/O system is widely applicable to a variety of industrial solutions, such as Internet of Things, smart factories, smart cities, smart medical care, smart homes, smart transportation, data center power environment monitoring, electric power, oil monitoring, automobiles, warehousing and logistics and other industries.
Description |
Model |
Channel |
Type |
Modbus-TCP I/O Coupler |
BL200 |
/ |
/ |
Profinet I/O Coupler |
BL201 |
/ |
/ |
EtherCAT I/O Coupler |
BL202 |
/ |
/ |
Ethernet/IP I/O Coupler |
BL203 |
/ |
/ |
OPC UA EdgeIO Controller |
BL205 |
/ |
/ |
MQTT EdgeIO Controller |
BL206 |
/ |
MQTT |
MQTT+OPC UA+Modbus TCP |
BL206Pro |
/ |
MQTT, OPC UA, MQTT |
BACnet/IP I/O Coupler |
BL207 |
/ |
/ |
BACnet/IP+MQTT+OPC UA |
BL207Pro |
/ |
/ |
8CH DI |
M1081 |
8 |
NPN (low level trigger) |
8CH DI |
M1082 |
8 |
PNP (high level trigger) |
16CH DI |
M1161 |
16 |
NPN (low level trigger) |
16CH DI |
M1162 |
16 |
PNP (high level trigger) |
4CH DO |
M2044 |
4 |
Relay |
8CH DO |
M2081 |
8 |
PNP |
8CH DO |
M2082 |
8 |
NPN |
16CH DO |
M2161 |
16 |
PNP |
16CH DO |
M2162 |
16 |
NPN |
4CH AI Single-Ended |
M3041 |
4 |
0-20mA/4-20mA |
4CH AI Single-Ended |
M3043 |
4 |
0-5V/0-10V |
4CH AI Differential |
M3044 |
4 |
0-5V/0-10V |
4CH AI Differential |
M3046 |
4 |
±5V/±10V |
4CH AO |
M4041 |
4 |
0-20mA/4-20mA |
4CH AO |
M4043 |
4 |
0-5V/0-10V |
4CH AO |
M4046 |
4 |
±5V/±10V |
2CH RTD |
M5021 |
2 |
3Wire PT100 |
2CH RTD |
M5022 |
2 |
3Wire PT1000 |
2CH RTD |
M5023 |
2 |
4Wire PT100 |
2CH RTD |
M5024 |
2 |
4Wire PT1000 |
4CH TC |
M5048 |
4 |
TC(B/E/J/K/N/R/S/T) |
2CH RS485 |
M6021 |
2 |
RS485 |
2CH RS232 |
M6022 |
2 |
RS232 |
1CH RS485, 1CH RS232 |
M6023 |
2 |
RS485+RS232 |
Power module |
M7011 |
/ |
/ |
Terminal module |
M8011 |
/ |
/ |
Name |
Description |
24V |
System Power 24VDC |
0V |
System Power 0VDC |
+ |
Connections Field Supply 24 VDC |
+ |
Connections Field Supply 24 VDC |
- |
Connections Field Supply 0 VDC |
- |
Connections Field Supply 0VDC |
PE |
Grounding |
PE |
Grounding |
