8CH Digital Input/Output PNP/NPN Profinet Distributed I/O Module for S7-1500 PLC

1. Overview

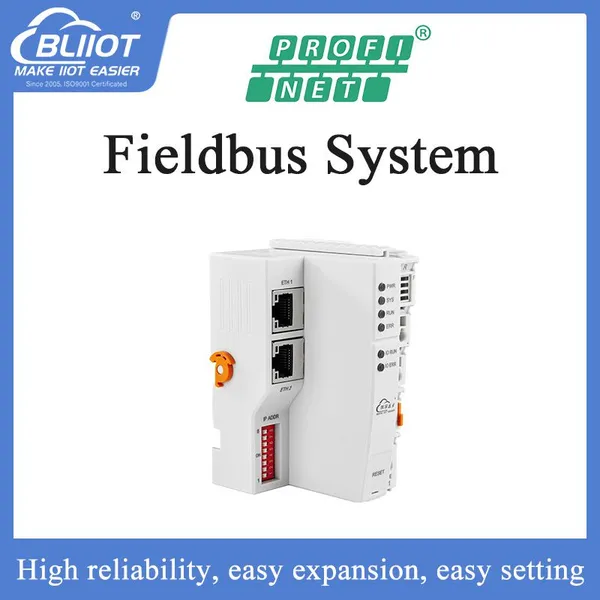

The BL201 coupler is a data acquisition and control system based on a powerful 32-bit microprocessor design with a Linux operating system.

The BL201 distributed I/O system consists of 3 parts: Coupler, I/O modules and terminal modules.

The communication between the node and the field devices (eg PLC) takes place via the Ethernet interface of the fieldbus coupler, and the communication between the fieldbus coupler and the I/O modules takes place via the local bus. The two Ethernet interfaces are internally integrated with a switch function, which can establish a linear topology without the need for additional switches or hubs.

The system needs to use the power module to provide 24VDC system voltage and 24VDC field voltage. Since two independent power supplies are used, the field voltage input interface and system voltage input interface of BL200 series couplers are electrically isolated from each other.

When assembling fieldbus node modules, each I/O module can be arranged in any combination, and it is not required to be grouped by module type.

A terminal module must be plugged into the end of a fieldbus node to ensure correct data transmission.

2. Typical Application

High reliability, easy expansion, easy setting, and convenient network wiring, these capabilities let users efficiently adapt the BL201 I/O system to a variety of industrial application.

3. Features

Ø Each I/O system can have a maximum of I/O 32 modules.

Ø Support Profinet master connection.

Ø The field side, the system side and the bus side are electrically isolated from each other.

Ø Support 2 X RJ45 interface, integrated switch function, can establish line topology,  without the need for additional switches or hubs.

Ø Convenient wiring connection technology, screw-free installation.

4.Model List
