High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation

High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation thumbnail-1
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation thumbnail-2
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation thumbnail-3
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation thumbnail-4
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation thumbnail-5
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation photo-1
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation photo-2
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation photo-3
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation photo-4
High-Performance DVP Series to OPC UA IoT Gateway BL121PO With RS485/RS232 and Ethernet Ports for Digital Transformation photo-5
US$ 42.55 - 49.64 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIoT
Place of Origin:
China
Model Number:
BL121PO
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIoT
Place of Origin China
Model Number BL121PO

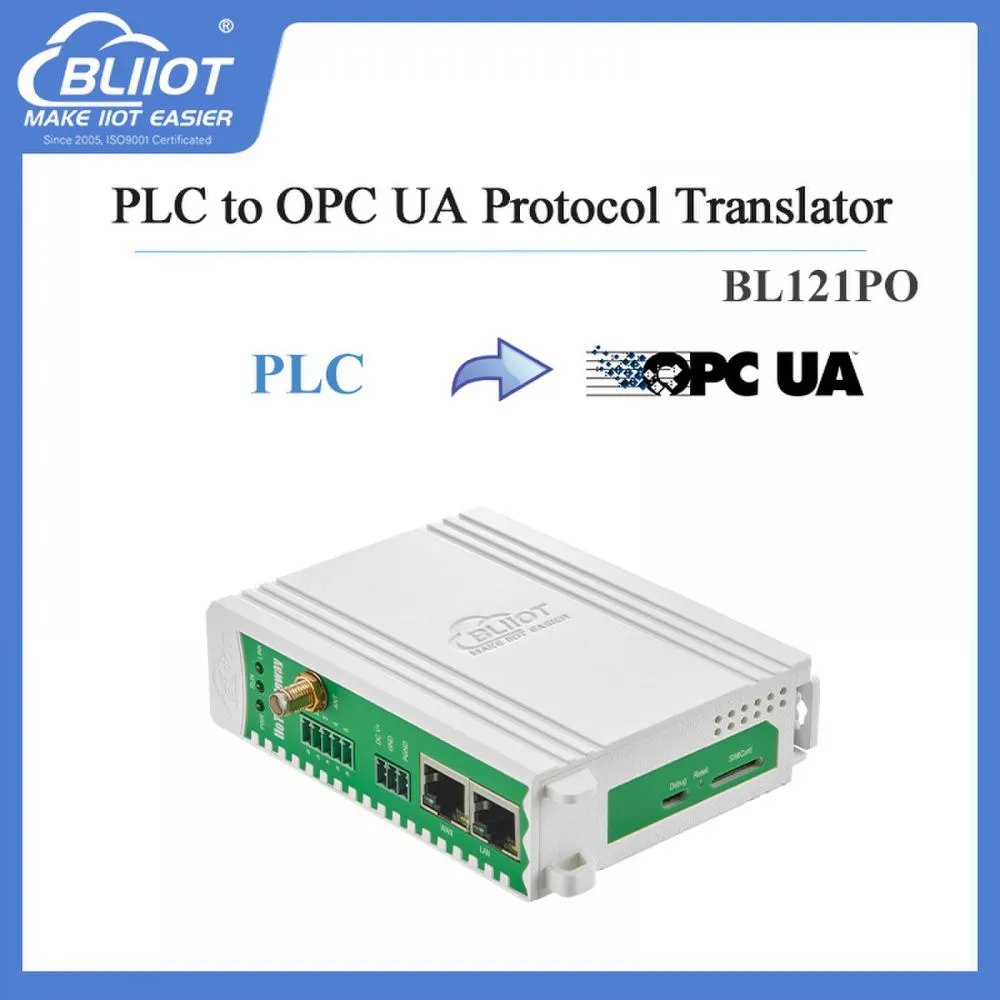

PLC to OPC UA Protocol Translator BL121PO

Item No.: BL121PO
BLIIoT BL121PO gateway supports Siemens, Mitsubishi, Omron, Delta, and other PLC protocols converting to OPC UA Protocol.

BL120ML IEC104, DLT645, BACnet to Modbus protocol converter supports IEC104, DL/T645, BACnet/IP, Modbus MS/TP protocols converting to Modbus RTU, Modbus TCP protocols. This protocol gateway is widely used in building automation management system.

Downlink Supports S7-200,S7-200SMART,FX3U,FX5U,DVP series and other PLC protocols
Uplink Supports OPC UA
Supports SNMP V1/V2
Supports transparent transmission
RJ45 Ethernet ports
RS-485/232 serial ports
Supports OpenVPN
PLC remote debugging, upload and download
Supports routing functions and cascading switch
Supports remote configuration and firmware upgrade

All BL12x series gateways support 4G/WIFI/GPS/, and the number of serial ports can be selected from 2 serial series or 6 serial ports. The selection table is shown in Table 1 below.

Model WAN LAN COM(RS485/RS232) WiFi
BL121PO 1 1 2 ×
BL121POW 1 1 2 √
BL121POP 1 1 6 ×
BL121POPW 1 1 6 √

OPC UA Gateway Model Downlink Protocol
Uplink Protocol:     OPC UA BL121 Modbus RTU,Modbus ASCII,Modbus TCP
BL121PN Profinet
BL121EC EtherCAT
BL121EP Ethernet/IP
BL121CK CC-LINK,OPC UA
BL121CN CANOPEN JAE1939 DeviceNet
BL121PK Power Link
BL121PL S7-200,S7-200SMART,S7-300,FX1S ,FX2N,FX3S,FX3U,FX5U,CJ/CS/CP/CP1H/CP1L series,PLC Protocols
BL121NC Various CNC protocols
BL121AC Various air conditioning protocols
BL121DT DLT645,IEC104
BL121EN IEC61850
BL121DN DNP3.0
BL121BN BACnet MSTP,BACnet/IP
BL121LK Lonworks
BL121KN KNX
BL121ML


Modbus RTU,Modbus TCP,DLT645,IEC104,BACnet,Lonworks,IEC61850


Parameter Description
System Processor Clock speed 300Mhz
Storage 128MB
Flash memory 64MB
Power Supply Input voltage DC 9~36V
Power consumption Normal: 85mA@12V, MAX: 117mA@12V
Wiring Anti-reverse connection
Ethernet Ports Specification 2CH RJ45, 10/100Mbps, adaptive MDI/MDIX
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
Serial Ports QTY 2CH RS485 or RS232
Baud Rate 2400bps-115200bps
Data Bit 7, 8
Parity Bit None, Even, Odd
Stop Bit 1, 2
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
USB Ports QTY 1CH program downloading, 1CH program debugging
Specification Micro USB OTG
Protection Over Current Protection
WiFi(Optional) Antenna QTY 1
Antenna type SMA
Protocol 802.11a/b/g/n(mixed)
Mode Client mode
Signal path 2.4G Channel 1 - 13, 5G Channel 36 - 165
Security Open, WPA, WPA2
Encryption AES, TKIP, TKIPAES
Speed 150Mbps(Max)
Transmission distance Outdoor open area, up to 20 meters
SSID Support
Indicator PWR Always on when device powered on
Off when device lose power
RUN Flickering when system running
Off when system shutdown
LINK Flickering when Ethernet communication; Always on when WiFi communication, OFF when Ethernet, WiFi are all disconnected.
Software Internet Protocol IPV4, TCP/UDP, DHCP, DNS
IP Retrieving Static IP/DHCP
Transmission Support Transparent Transmission
DNS Support Domain Name Resolution
Configuration PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10
Internet Cache Transmitting: 8Kbyte; Receiving: 8Kbyte
Login Package Support custom login package
Heartbeat Package Support custom heartbeat package
Safety Certification MTBF ≥100,000 hours
EMC EN 55022: 2006/A1: 2007 (CE &RE) Class B

IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3
Others CE, RoHS, FCC


Environment Working -40~55ºC, 5~95% RH
Storage -40~70ºC, 5~95% RH
Others Shell Plastic
Dimension 30mm×83mm×110mm(LxWxH)
IP Grade IP30
Net Weight 133g
Installation DIN-Rail Mounting, Wall-Mounting

Packaging & Shipping

Box ,Shipping by air, land ,sea
