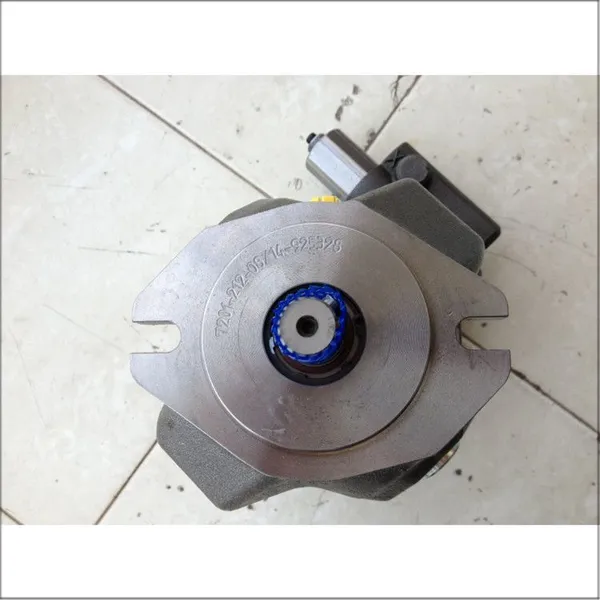

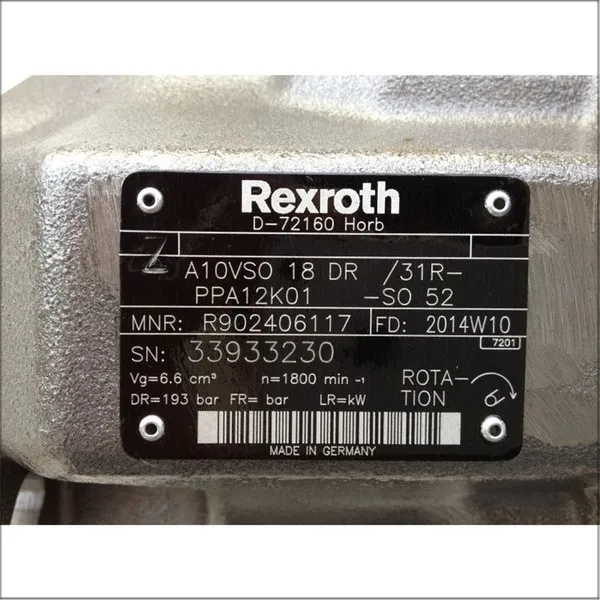

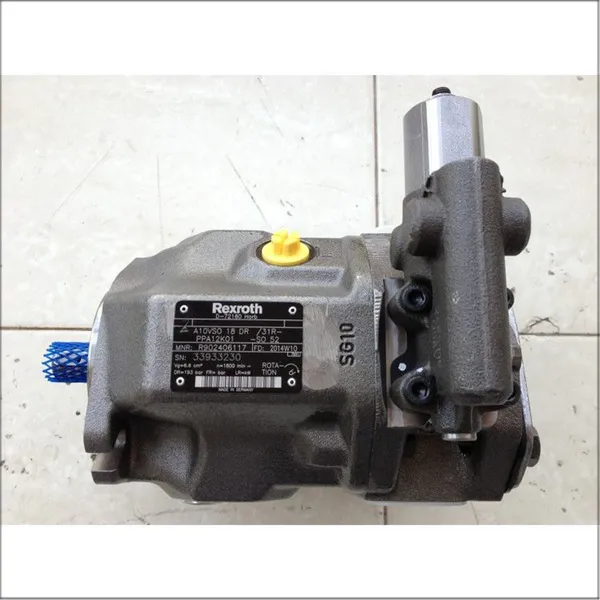

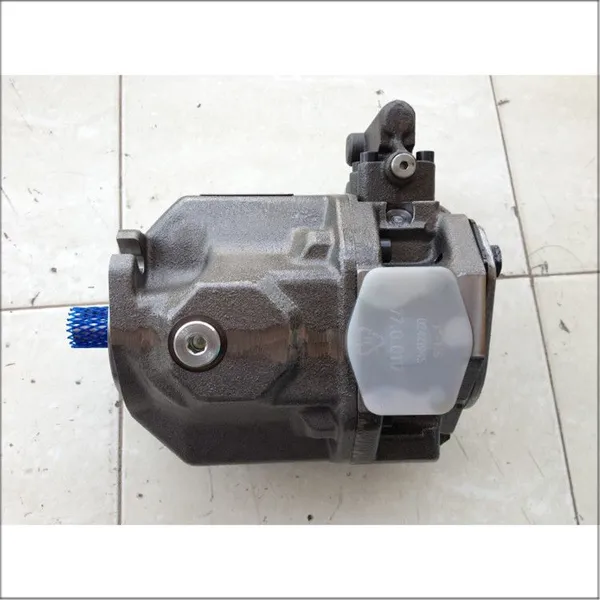

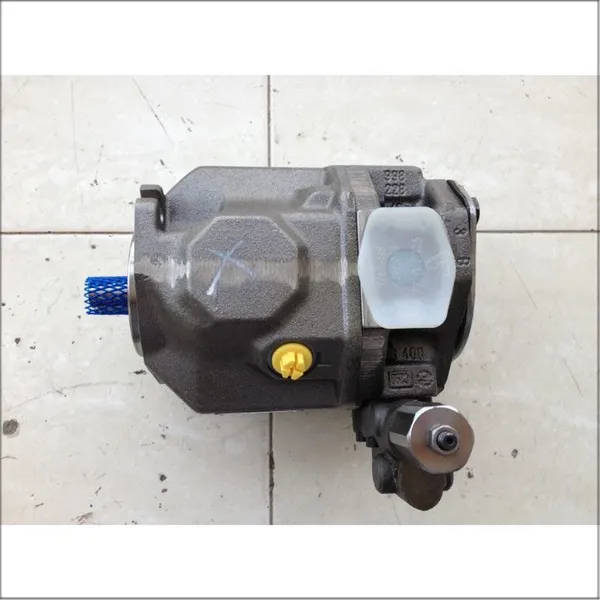

Rexroth Fast Response High Durability High Efficiency Plunger
Pump A10VSO18DR/31R-PPA12K01-SO52
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, sunhydraforce, Hawe, Vickers, Siemens ,Skf and other European and American brands.
Products
Plunger pump, solenoid valve, gear pump, vane pump, direction valve, servo valve,proportional valve, hydraulic
Advantages
High-Performance Parameters
Rated pressure 280 bar, peak pressure up to 350 bar, maximum flow rate 59.4 L/min, maximum speed 3300 rpm
Precise Stepless Variable Flow
Flow rate is proportional to drive speed and displacement; stepless flow rate variation can be achieved by adjusting the swashplate angle, resulting in high control precision.
Excellent Suction Performance
Equipped with two housing drain ports, providing excellent self-priming capability and cavitation resistance.
Low-Noise Operation
Optimized design results in low operating noise, suitable for applications with high environmental requirements.
High Durability
The drive shaft can withstand axial and radial loads, has a long service life, weighs only 12 kg, and has a high power-to-weight ratio.
Fast Response
Short control response time and excellent system dynamic performance.
Flexible Control Methods
DR type indicates pressure control; the series also offers DRG, DFR, DFR1, and DFR2. Multiple control options including DFE1
Through-Shaft Drive Design
Supports 100% through-shaft drive, allowing for combination with other gear pumps or piston pumps of the same specifications to achieve multi-loop systems
Standardized Interfaces
Complies with ISO and SAE installation standards; flange connections conform to SAE metric standards for easy integration
Application Areas
Mobile Machinery
Such as construction machinery, agricultural machinery, material handling equipment, etc.
Industrial Hydraulic Equipment
Including machine tools, plastic processing machinery, die-casting machines, etc.
Heavy Machinery
Metallurgical equipment, forging machinery, mining machinery, and hoisting machinery, especially suitable for high-power hydraulic transmission systems
Other Fields
Chemical, environmental protection, and other industries requiring precise hydraulic control.
