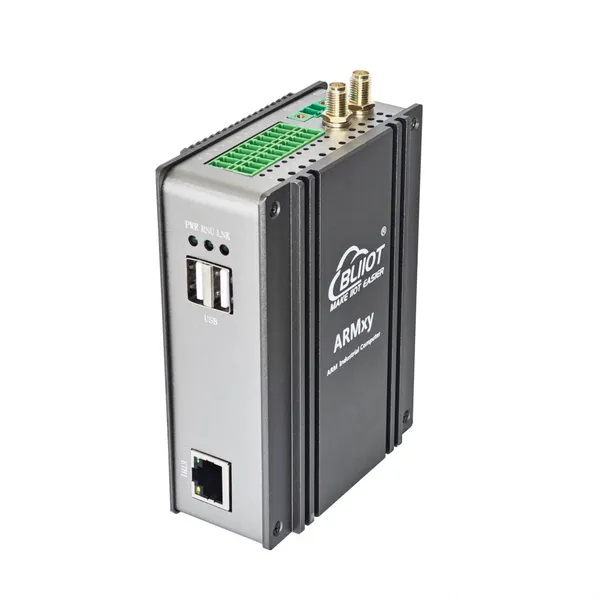

ARMxy Industrial Computer T113-i Dual-Core ARM Cortex-A7 Supports Node-Red RS485 CAN DI DO AI AO GPIO for Industrial Control

The ARMxy BL330 series is a versatile industrial ARM controller designed for flexible I/O configuration. It is based on the  T113-i dual-core ARM Cortex-A7 + XuanTie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor. This industrial-grade computer features an ARM Cortex-A7 processor with clock speed of up to1.2GHz. It is equipped with either 256Mbyte NAND Flash or 4/8GByte eMMC storage options and offers various combinations of 128M/256M/512M/1GByte DDR3 RAM and ROM.

The BL330 series ARM embedded computer offers a rich array of interfaces including

1 x 1000Mhz Ethernet port, 2 x optional 100Mhz Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series IO board, 2 x optional Y series IO boards. These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL330 also supports hardware decoding of 1080P@60fps videos.

Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.

The BL330 series ARM embedded computer supports a range of operating systems anddevelopment tools, including Linux-5.4.61 and Linux-RT-5.4.61 kernels, Ubuntu 20.04 operating system, Docker containers, Node-Red, Qt-5.12.5 and Qt-5.11.3 for graphical interface development. In addition, BL330 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamless integration withvarious mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL330 embedded computer. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL330.

The BL330 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.

This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.

 Typical Application Areas

u Industrial Control

u Edge Computing

u Data Acquisition

u Energy Storage Systems

u Photovoltaic Power Generation

u IoT Gateway

u Rail Transportation

u Smart Devices

 Product Selection

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.

Product naming convention

Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number

For example, if we had a specific product configuration:

Host Model: BL330

SOM Model: SOM330

X Board Model: X10

The complete product name would be:

BL330-SOM330-X10

Means 1 Ethernet port, 256MB NAND Flash, 256MB DDR3 RAM, and 2 RS485 ports.

If you need to add WiFi, then you would append "W" to the host model number.

For example: BL330W-SOM330-X10

If you need to add a 4G module, you would append "L" to the host model number.

For example: BL330L-SOM330-X10

ARMxy BL330 Model List

ARMxy BL330 SOM Model List

You can select the appropriate ROM, RAM, and temperature grade based on your requirements.

X Series IO Board Model List

You can select the appropriate X series IO board based on your requirements, ensuring that the number of pins on the X series IO board is compatible with the industrial computer's casing.

Y Series IO Board Model List

You can select the appropriate Y series IO board based on your requirements, as the Y series IO modulesare compatible with all Y slots.
