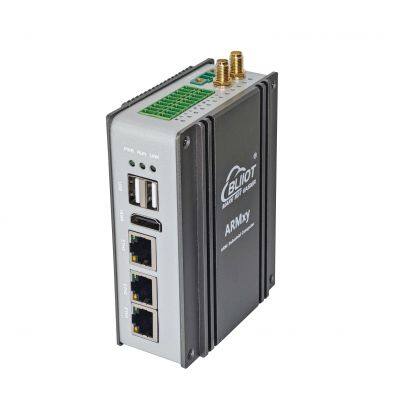

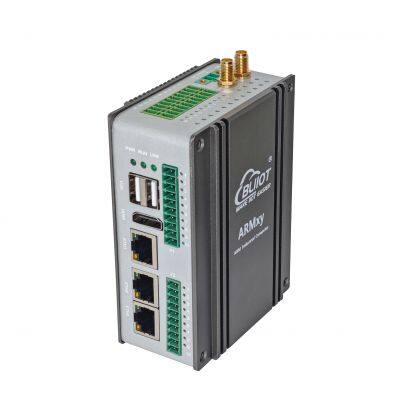

ARMxy Series RK3568J/RK3568B2 4*A55 64-Bit Supports Node-Red PWM With CAN GPIO for Water Treatment IoT

FOB Price

US$ 157 - 245 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BLIIOT		Place of Origin	China
Model Number	BL410

Product Description

The ARMxy BL410 series is a versatile industrial ARM controller designed for flexible I/O configuration. It is based on the RK

Typical Application Areas

Industrial Control

Edge Computing

Data Acquisition

Energy Storage Systems

Photovoltaic Power Generation

IoT Gateway

Rail Transportation

Smart Devices

for industry 4.0

for smartcities

for AGV

for Edge Computing Gateway

For energy IoT

for watertreatment IoT

for industrial iot

for MES

for EV charger

for remote monitoring

for measurement equipments

for smart factory

for aiot

Hardware	Parameters
CPU	RK3568J/RK3568B2, 22nm
	ARM Cortex-A55 cores (64-bit) with a clock speed of 1.4GHz in normal mode and up to 1.8GHz in overdrive mode.
	RK3568B2 clock speed 2.0GHz
	NPU: 1 TOPS Supports INT8/INT16/FP16/BFP16 Supports TensorFlow/PyTorch/Caffe/MXNet deep learning frameworks
	Encoder: Supports 4K@60fps H.265/H.264 video decoding
	Decoder: Supports 1080P@60fps H.265/H.264 video encoding
ROM	8/16/32GByte eMMC
RAM	1/2/4GByte LPDDR4X
ETH	RJ-45, 1~3, 1x1000M, 2x100M, ESD Level 3, EFT Level 3
USB	2x USB2.0 HOST(USB1, USB2), supports high-speed 480Mbps, ESD Level 3
HDMI	1x HDMI2.0a, support 1080P@120fps, 4K@60fps
IO Slot	X series IO board slot: 1, X series IO board, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc; Y series IO board slot: 2, Y series IO board, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc.
LED	1x power indicator light
LED	2x user-programmable indicator light
Mini PCIE	1, Supports Bluetooth, WiFi, 4G module, etc.
SIM Slot	1 slot, NANO
Antenna	2, For 4G/WIFI/GPS
Debug	1x Micro USB debug port
SD Slot	1
Reset	1 reset button
Watchdog	Onboard independent hardware watchdog
Power	Rated DC 24V, supports wide voltage range of 9-36VDC Equipped with reverse polarity protection and overcurrent protection 3-pin terminal block with screw terminals
Grounding	1-pin GND terminal
Installation	DIN35 rail mounting, wall mounting
Material	Aluminum alloy casing + stainless steel
Dimension	1108342mm or 1108348mm

Software	Parameters
Kernel	Linux-4.19.232, Linux-RT-4.19.232, and SylixOS V2.3.12.
File System	Buildroot-201802 Debian-10.13 Android 13 SylixOS (also known as TpsFs) KylinOS Embedded Linux V10 SP1
GUI development tool	Qt-5.15.2
Protocol Conversion Software	BLIoTLink, used for protocol conversion, such as Modbus,PLC, BACnet, IEC104, MQTT, OPC UA, support AWS IoTCore, Thingsboard, IgnitionSCADA, IoT, HUAWEI IoT.
Remote Access Tool	BLRAT, enables remote device access for convenient remote maintenance.
Other Software	Node-Red, Python, Docker, C#, MySQL, SQLite

Product Selection

The ARMxy series ARM embedded controllers adopt a flexible design concept, allowing users to customizeROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.

Product naming convention

Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number

For example, if we had a specific product configuration:

Host Model: BL410

SOM Model: SOM410

X Board Model: X10

The complete product name would be:

BL410-SOM410-X10

Means 1 Ethernet port, 8GB eMMC storage, LPDDR4X is 1GByte, and 2 RS485

If you need to add WiFi, then you would append "W" to the host model number.

For example: BL410W-SOM410-X10

If you need to add a 4G module, you would append "L" to the host model number.

For example: BL410L-SOM410-X10

ARMxy BL410 Model List

Model	ETH	USB	HDMI	X board IO Slot	Y board IO Slot	Dimension
BL410	1x1000Mhz	2	X	1x6PIN	X	42x83x110mm
BL410A	1x1000Mhz	2	X	1x20PIN	X	42x83x110mm
BL410B	1x1000Mhz	2	X	1x20PIN	2	48x83x110mm
BL410C	1x1000Mhz	2	X	1x10PIN	X	42x83x110mm
BL411	1x1000Mhz, 1x100Mhz	2	X	1x6PIN	X	42x83x110mm
BL411A	1x1000Mhz, 1x100Mhz	2	X	1x20PIN	X	42x83x110mm
BL411B	1x1000Mhz, 1x100Mhz	2	X	1x20PIN	2	48x83x110mm
BL412	1x1000Mhz, 2x100Mhz	2	1	1x6PIN	X	42x83x110mm
BL412A	1x1000Mhz, 2x100Mhz	2	1	1x20PIN	X	42x83x110mm
BL412B	1x1000Mhz, 2x100Mhz	2	1	1x20PIN	2	48x83x110mm

ARMxy BL410 SOM Model List

You can select the appropriate ROM, RAM, and temperature grade based on your requirements.

Model	MCU	Clock Speed	Kernel	NPU	eMMC	DDR4	Temperature
SOM410	RK3568J	1.8GHz	4 x A55	1TOPS	8GByte	1GByte	-40~85°C
SOM411	RK3568J	1.8GHz	4 x A55	1TOPS	16GByte	2GByte	-40~85°C
SOM412	RK3568J	1.8GHz	4 x A55	1TOPS	32GByte	4GByte	-40~85°C
SOM413	RK3568B2	2.0GHz	4 x A55	1TOPS	4GByte	1GByte	0~70°C
SOM414	RK3568B2	2.0GHz	4 x A55	1TOPS	8GByte	2GByte	0~70°C
SOM415	RK3568B2	2.0GHz	4 x A55	1TOPS	8GByte	4GByte	0~70°C

X Series IO Board Model List

You can select the appropriate X series IO board based on your requirements, ensuring that the number of pins on the X series IO board is compatible with the industrial computer's casing.

Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	x	x	x	x	6PIN
X11	1	1	x	x	x	6PIN
X12	x	x	2	2	x	6PIN
X13	x	x	4	x	x	6PIN
X14	x	x	x	4	x	6PIN
X15	x	x	x	x	4	6PIN
X20	4	x	x	x	x	10PIN
X21	2	2	4	4	x	20PIN
X22	4	x	4	4	x	20PIN
X23	2	x	8	8	x	20PIN
X24	2	x	16	x	x	20PIN
X25	2	x	x	16	x	20PIN
X26	x	x	x	x	16	20PIN
X27	8	x	x	x	x	20PIN

Y Series IO Board Model List

You can select the appropriate Y series IO board based on your requirements, as the Y series IO modulesare compatible with all Y slots.

Model	Description	Model	Description
Y01	4DI+4DO, NPN	Y41	4AO, 0/4~20mA
Y02	4DI+4DO, PNP	Y43	4AO, 0~5/10V
Y03	4DI+4DO, Relay	Y46	4AO, ±5V/±10V
Y11	8DI, NPN	Y51	2RTD, 3-Wire PT100
Y12	8DI, PNP	Y52	2RTD, 3-Wire PT1000
Y21	8DO, PNP	Y53	2RTD, 4-Wire PT100
Y22	8DO, NPN	Y54	2RTD, 4-Wire PT1000
Y24	4DO, Relay	Y56	Resistance measurement
Y31	4AI, single-ended, 0/4~20mA	Y57	Voltage measurement
Y33	4AI, single-ended, 0~5/10V	Y58	4TC
Y34	4AI, differential, 0~5/10V	Y91	4 high-speed counting module
Y36	4AI, differential, ±5V/±10V	Y61	4 RS485 or RS232
		Y62	1CAN+3RS485 or RS232
