Support MQTT Modbus TCP Protocol for Tower Light Monitoring SMS Alarm Controller with RS485 DI DO AI

Name: Support MQTT Modbus TCP Protocol for Tower Light Monitoring SMS Alarm Controller with RS485 DI DO AI
Brand: BLIIOT
Availability: InStock

FOB Price

USD $148 - $195 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BLIIOT		Place of Origin	China
Model Number	S275

Product Description

Model	DI	AI	DO	Tem& Hum	Storage	USB	RS485	I/O data points
Model	DI	AI	DO	Tem& Hum	Storage	USB	RS485	bool	16Bit	32Bit	64Bit
S270	2	2	2	1	2M	1	x	x	x	x	x
S271	4	4	4	1	2M	1	x	x	x	x	x
S272	8	6	4	1	32G	1	1	64	64	x	x
S274	4	x	4	1	32G	1	1	64	128	64	64
S275	8	6	4	1	32G	1	1	64	128	64	64

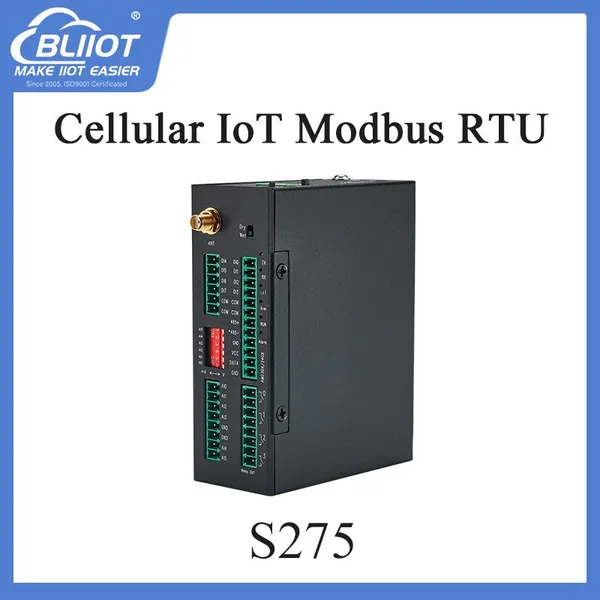

The Industrial 4G Wireless Cellular RTU S275 features 8 digital inputs, 6 analog inputs, 4 relay outputs, 1 temperature and humidity input, and 1 RS485 serial port. The RTU supports Modbus RTU over TCP, Modbus TCP, MQTT protocol.
The remote monitoring module is designed for remote measurement and control system and remote data acquisition telemetry systems, such as smoke, liquid, water, flow, flood, electricity, power, energy remote monitoring and remote control.

Inbuilt inter-lock logic programmer and powerful timer program function;
When alarm occurs, the RTU will notify users by SMS, dialing, and also uploading data to cloud platform, monitoring center. The RTU also can be used as a remote switch, remote I/O, remote smart PLC, timer switches.

The RTU supports BLIIoT IoT RTU protocol, Modbus RTU over TCP protocol, Modbus TCP protocol, MQTT protocol, which can communicate directly with the server, cloud platform or SCADA.

Category	Parameter	Description
Power	Input Voltage	DC 9~36V
	Power Consumption	Normal: 50mA@12V, Max: 150mA@12V
	Output	1 Channel; Voltage: 9~36V DC; Current: 1500mA@12V(Max)
	Protection	Reverse wiring prevention; ESD Air: 15KV; Surge: 4KV
	Backup Battery	3.7V/850mA (It is optional. Default: Without battery)
USB	USB	1xMini USB
Serial Port	QTY	1xRS485
	Baud Rate	1200bps-115200bps
	Data Bit	8
	Parity Bit	None, Even, Odd
	Stop Bit	1, 2
	Protocol	Modbus RTU(slave), Modbus RTU(master)
	Protection	ESD Contact: 8KV; Surge: 4KV(8/20us)
Digital Input	QTY	8 Channel
	Type	Support both Wet contact and Dry contact
	Dry Contact	Close: Short circuit; Open: Open circuits
	Wet Contact	Close: 10~30V; Open: 0~3V
	Others	DIN0 as a high-speed pulse counter, sampling frequency: 1MHz; DIN1~3 as low-speed pulse counter, anti-shake time can be set 1~2000ms, default 1ms; DIN1 with arm and disarm function;
	Protection	2KVrms
Digital Output	QTY	4 Channel
	Type	Relay output (5A@30VDC, 5A@250VAC)
	Others	The first DO can set time to control by authorize number; Custom setting close and open times
	Protection	2KVrms
Analog Input	QTY	6 Channel
	Type	Differential Input, 4-20mA/0-20mA/0-5V
	Resolution	12Bit
	Accuracy	±0.1% FSR @ 25°C ±0.3% FSR @ -10 and 60°C ±0.5% FSR @ -40 and 75°C
	Sampling Rate	200ms
	Input Impedance	>1M ohms
Temperature&Humidity (AM2301)	Resolution	16bit(0.1%RH, 0.1°C)
	Sampling Rate	200ms
	Temperature Range	-40 to +80°C
	Accuracy	0.5°C
	Humidity Range	0 to 99RH%
	Accuracy	3%RH
4G	SIM	Drawer type, Support 1.8V/3V SIM/UIM card, Built-in 15KV ESD protection
4G	SIM Slot	1
Software	Internet Protocol	IPV4, TCP/UDP, Modbus RTU, Modbus TCP, MQTT, BLIIoT IoT RTU
	Indicator	4G signal, running, arming and disarming, 485 transmit-receive
	Configuration	PC software configuration, support WIN XP, WIN 7, WIN 8 and WIN 10
	Slave Connection	16 devices, Max 320 I/O data points(Bool, 16bit, 32bit, 64bit)
	Transparent Transmission	Support
	SMS Command	Support
	Login Package	Support custom login package
	Heartbeat Package	Support custom heartbeat package
	Storage	Built in 32G SD card, capable of storing up to 100,000 historical records
Safety	MTBF	≥100,000 hours
	EMC	EN 55022: 2006/A1: 2007 (CE &RE) Class B
		IEC 61000-4-2 (ESD) Level 4
		IEC 61000-4-3 (RS) Level 4
		IEC 61000-4-4 (EFT) Level 4
		IEC 61000-4-5 (Surge)Level 3
		IEC 61000-4-6 (CS)Level 4
		IEC 61000-4-8 (M/S) Level 4
	Others	CE, FCC, RoHS
Environment	Working	-45~85°C, 5~95% RH
Environment	Storage	-45~105°C, 5~95% RH
Others	Shell	Metal
	Size	108x82x40mm
	Protection	IP30
	Installation	Wall-mounting or DIN Rail mounting.
