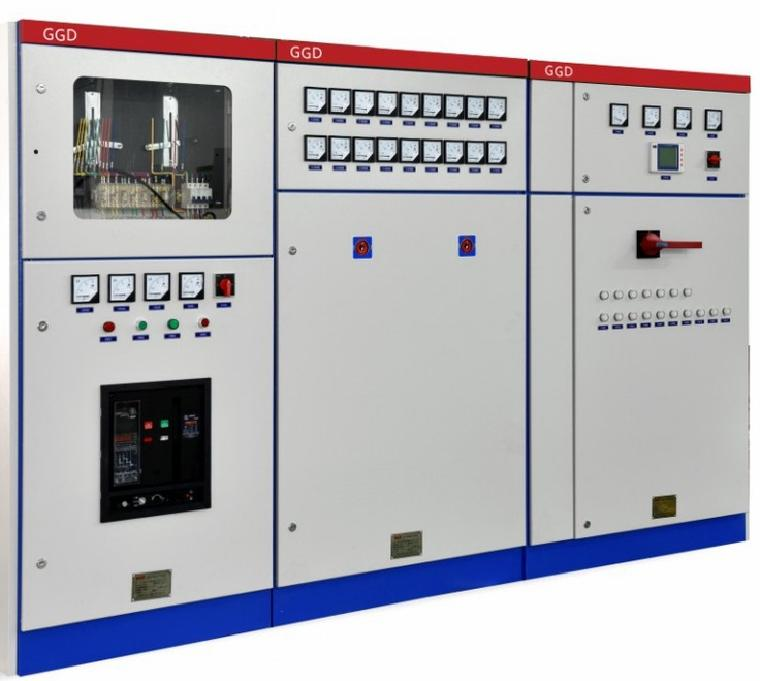

GGD type AC low voltage distribution cabinet
GGD type AC low-voltage distribution cabinet has the characteristics of high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, series, practical, novel structure, high protection level, which not only shorts the production cycle, improves efficiency, but also saves social resources. Can be used as low-voltage switchgear replacement products.
Main uses:
The GGD low-voltage AC power distribution cabinet is suitable for low-voltage power supply systems with AC 50Hz, rated operating voltage 400V, cut-off voltage 690V, and rated current 3150A or lower. Can be used in power plants, power conversion, industrial and mining enterprises, buildings, hotels, airports, terminals and other power users, as power generation, transmission and distribution, power conversion and control
PRODUCT FEATURES
The cabinet body adopts the form of general cabinet, and the frame is assembled with 8MF section steel after partial welding. The frame parts and special supporting parts are supplied by the section steel fixed point production factory to ensure the accuracy of the cabinet body And quality;
Cabinet design fully consider the problem of heat dissipation in operation. The upper and lower parts of the cabinet are provided with a different number of heat dissipation slots, so that the closed cabinet forms a natural ventilation channel from the bottom up to achieve dispersion
The purpose of heat;
According to the requirements of industrial product design, the golden section ratio method is used to design the shape of the cabinet and the partition size of each part, so that the whole cabinet is beautiful and elegant.
The cabinet door is connected with the frame by rotating shaft movable hinge, easy to install and disassemble;
The top cover of the cabinet can be removed when necessary to facilitate the assembly and adjustment of the main bus line on site. The four corners of the top of the cabinet are equipped with hanging rings for lifting and loading;
With blocking function, self-casting function, maintenance status function;
Communication function: The system can be equipped with RS485 or RS232 communication interface, support MODBUS communication protocol (optional);
Intelligent monitoring function (optional).
