ChinaHome > Products > generator set > 1500kVA standby power Diesel Generator powered

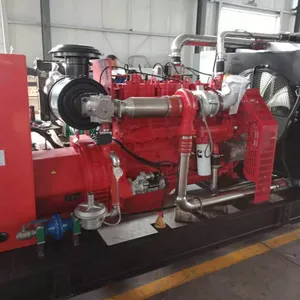

1500kVA standby power Diesel Generator powered
- 10 Set / Sets per Month
- T/T L/C
You May Like
Product Details
| Brand Name | wisdom | Place of Origin | China | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 year | Weight | 700kg | |
| Dimension(L*W*H) | 2.5*2*2m | Condition | New | |
| Voltage | 415 | Power(W) | 1500kva |
Product Description
1500kVA Standby power Diesel Generator powered by CUMMINS engine:
DIESEL GENERATOR SET | |
Genset Model | SC1500GF |
Prime Power(kW/kVA) | 1090/1363 |
Standby Power(kW/kVA) | 1200/1500 |
Output voltage | 415V |
Speed | 1500rpm |
Frequency | 50HZ |
Fuel type | Diesel |
Steady-state voltage regulation（%） | ≤±1 |
Voltage fluctuation rate（%） | ≤±1 |
Transient voltage regulation（%） | ＋20～－15 |
Frequency fluctuation rate（%） | ≤±0.5 |
Transient frequency adjustment rate（%） | ＋10～－7 |
ENGINE SPECIFICATIONS | |
Model | KTA50-GS8 |
Type | water-cooled, in line, 4-stroke, direct injection |
Rated Power(kW) | 1287 |
Intake Type | Turbocharged |
No.of Cylinder | 16.V |
Bore x Stroke(mm) | 159x159 |
Compression Ratio | 13:9:1 |
Mechanical Governor Rate | ≦5% |
Electronic Governor Rate | ≦1% |
Noise Level (dBA) | ≦103 |
Lub oil Capacity(L) | 204 |
Rated Fuel Consumption(L/h) | 261 |
Displacement(L) | 50.3 |
Governing Type | Electrical |
Start method | Electric start |
ALTERNATOR SPECIFICATIONS | |
Brand | Copy Stamford |
Model | WHI7D |
Rated Power(kW/kVA) | 1056/1320 |
Rated voltage | 415V |
Excitation Type | Brushless |
Insulation Class | H |
Protection level | IP22 |
Output factor | COSΦ=0.8 |
2. Control system
The monitoring and protection cabinet of the control system is installed on the unit base.
The control system configuration is as follows:
Ø Control cabinetü
Ø Cabinet componentsü
Ø Electrostatic battery chargerü
Ø Emergency stop button
Ø ATS(automatic transfer switch)
Ø DSE7320 controller
3. A.Scope of supply
1. Brand new CUMMINS diesel engine.
2. Brand new copy Stamford alternator.
3. 50HZ,1500RPM, three Ph, 0.8PF, H insulation class.
4. Control panel
5. Weather proof canopy
6. Anti-Vibration elements between engine/alternator and base frame.
7. Radiator with engine driven fan.
8. Battery with battery cables and rack,loose silencer, elbow pipe, supplied with the expansion joint, battery and battery connections
9. Genset with 8 hours running fuel tank with fuel gauge integrated in the base frame of generating set.
10. English operation/maintenance manuals/test report for engine, alternator and genset.
11. Standard tools kit.
B. Payment Terms
By telegraphic transfer: 70% deposit on signing of Proforma Invoice; and 30% balance before dispatch.
C. Delivery
4 weeks with receipt of deposit. If need special delivery, pls inform us to special arrangement.
D. Warranty
1 year or 1500 running hours, whichever coming first.
