Tunnel Type Multi-layer Dryer

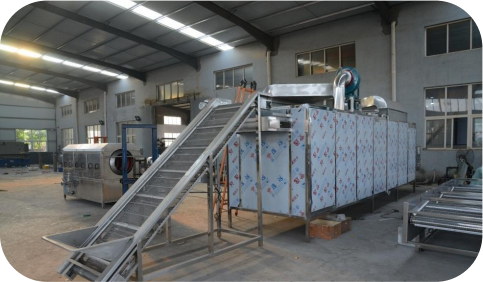

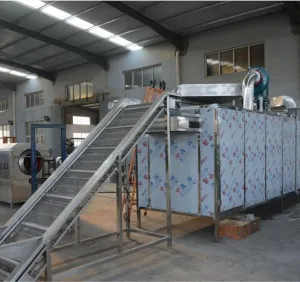

Tunnel type multi-layer dryer

Including the frame, the upper side of the frame is provided with thermal insulation trough,

The upper side of the thermal insulation tank is provided with thermal insulation cover plate.

The upper left side of the heat preservation tank is provided with a feeding port.

The upper left side of the feed port is provided with a buffer plate,

There is a return air system on the left side of the heat preservation tank.

The right side of the return air system is equipped with a centrifugal fan.

The right side of the centrifugal fan is provided with a waste heat recovery device,

The right side of the waste heat recovery device is provided with a return air pipeline.

The discharge port is provided on the right side of the thermal insulation trough.

A heat exchanger is arranged on the upper side of the discharge port.

The right side of the heat exchanger is provided with an axial fan.

The right end of the return air pipeline is connected with the heat exchanger.

There are five layers of mesh belt conveyor in the heat preservation tank,

The tightening device is provided on the left side of the mesh belt conveyor.

The right side of the mesh belt conveyor is provided with a bearing sprocket seat,

The upper right side of the heat preservation tank is provided with a frequency conversion motor.

The variable frequency motor is connected with the bearing sprocket seat by a chain.

The utility model has the advantages of small floor area, continuous drying in a closed environment, and no human contact during the whole drying process.

Equipment features:

◆ The equipment is made of SUS304 stainless steel, the equipment has beautiful appearance, good structural strength and good performance

Stable delivery, stable and safe material operation

◆ The equipment is transported by 304 stainless steel chain plate, which is high temperature resistant, non-toxic, wear-resistant and easy to disassemble

Discharge advantage

◆ Transmission speed variable frequency, can be adjusted according to different customer needs,

◆ Conveyor belt support is made of special wear-resistant strip; The lower part of the conveyor belt is provided with a belt roller, which is realized

The smooth transition of the conveyor belt effectively reduces the conveying friction and extends the conveying life;

◆ The drying medium is steam, and the electric heating can also be used according to the requirements, and the heat exchange device is equipped.

And equipped with drainage fan and guidance air plate to make the drying room temperature zone uniform;

◆ Low noise, easy operation, small footprint, easy maintenance;

Scope of application:

This machine is especially suitable for high and low temperature meat products, vegetable products, agricultural products, medicinal materials, fish products and other bagged products surface drying treatment; Recommended based on raw material feed rate of 2 tons per hour

Design: The overall size of the equipment is about

13000*1500*1900mm mesh belt 1200mm width

Equipment power: 248kw

Steam: about 300kg

Fob usd 78684/set

The equipment contains:

1 Provide the corresponding technical information of the equipment, including product certificate, warranty, installation, use and maintenance manual and transportation packing list.

2. During the warranty period, the supplied equipment is guaranteed free of charge. If there is a small fault, the response will be 5 minutes and the problem will be in place or solved within 48 hours.

3. Provide equipment user training, simple maintenance, etc.
