10 Ton body straightener for car
- QINGDAO
- T/T PayPal
- 15 days
You May Like
Product Details
| Brand Name | DOOCAR | Place of Origin | China | |
| Model Number | Y-02 | Weight | 345kg | |
| Warranty | 3 | Worktable Width | 270mm | |
| Worktable Length | 3245mm | Bench Height | 1600-2320mm |
Product Description

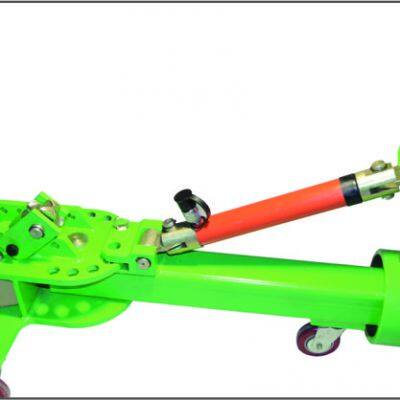

10Ton auto body frame straightener for car with swivel post
Key Features
1. The body straightener is a mobile and quick straightening system to repair bent, distorted auto frames and bodies by utilizing powerful and concentrated loads at key points.
2. The kits Made of high-quality structural steel and have a maximum pulling capacity of 10 tons.
3. Easily repair auto bodies at various damage and straighten independent twist damages.
4. 180 degree swivel pulling post
5. 130 degree swivel pulling beam
Specification
| Model | Y-01 | Y-02 |
| Frame length | 3000mm | 3245mm |
| Frame Width | 270mm | 170mm |
| Frame Height | 600mm | 2210mm |
| Pulling arm swivel angle | 135° | 135° |
| Pulling post swivel angle | 180° | 180° |
| Pulling tower height | 1600-2320mm | 1600-2320mm |
| Hydraulic pressure | 70Mpa | 70Mpa |
| Ram capacity | 10 Ton | 10 Ton |
| Machine Weight | 345kg | 345kg |
