Home > Products > Auto body frame machine > auto body frame puller straightener
auto body frame puller straightener
- 500 Set / Sets per Month
- Qingdao
- T/T
- 30 days
Product Details
Brand Name: | Doocar | Place of Origin: | China | Model Number: | Y01 |
Warranty: | 3 |
Product Description

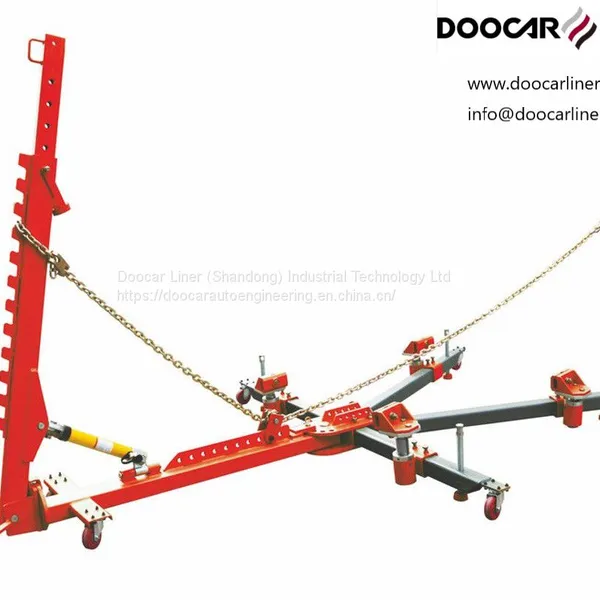

portable auto body frame puller Y-01 description:
1. This frame machine is portable puller straightener for auto body quick straigthening.
2. Patented design, movable fixed straightening equipment.
3. The position and height of the main clamp can be adjusted, and it is easy to use. The jaw is made of 35CrMo alloy steel and has been quenched by high frequency, so it has a long service life.
4. The unique support arm system greatly improves the support strength of the equipment.
5. Pneumatic hydraulic pump, effective oil output can reach 140cu, in.. strong power.
Key Features:
1. The body straightener is a mobile and quick straightening system to repair bent, distorted auto frames and bodies by utilizing powerful and concentrated loads at key points.
2. The kits Made of high-quality structural steel and have a maximum pulling capacity of 10 tons.
3. Easily repair auto bodies at various damage and straighten independent twist damages.
4. 180 degree swivel pulling post
5. 135 degree swivel pulling beam
Specification:
Model Y-01
Frame length 3000mm
Frame width 270mm
Frame Height 600mm
Pulling arm swivel angle 135°
Pulling post swivel angle 180°
Pulling tower height 1600-2320mm
Hydraulic pressure 70Mpa
Pneumatic pressure 0.8Mpa
Ram capacity 10 Ton
Machine Weight 345kg
