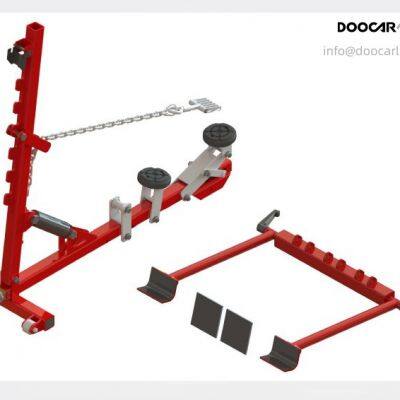

Car Body Repair Draw Aligner FAST-D3
- QINGDAO
- T/T
- 30 days
You May Like
Product Details
| Brand Name | DOOCAR | Place of Origin | China | |
| Model Number | FAST-D3 | Weight | 49kg | |
| Warranty | 3 | Worktable Width | 650mm | |
| Worktable Length | 1005mm | Max. Tension (N) | 100KN | |
| Max. Lifting Capacity | 5 T | Max. Hydraulic Pressure | 70Mpa | |
| Bench Height | 900mm |
Product Description
The draw aligner FAST-D3 is perfect for pulling out large dents for fast car body repair. Fully adjustable and easy to move, this innovative device can be used for straightening out a car's underbody, wings and quarter panel.
Draw aligner FAST-D3 features:
1. Auto cosmetic straightener for small to medium collision repair
2.It can be used to repair the depression of automobile lower side beam, sheet metal parts
with ribbed plate waist line and other parts.
3. Dents can be repaired at different heights of body panels
4. The 3-ton oil cylinder is adopted, with strong hydraulic power, and the repair of
reinforcement line is easy and fast.
5. Replace the traditional slide hammer and use it more efficiently

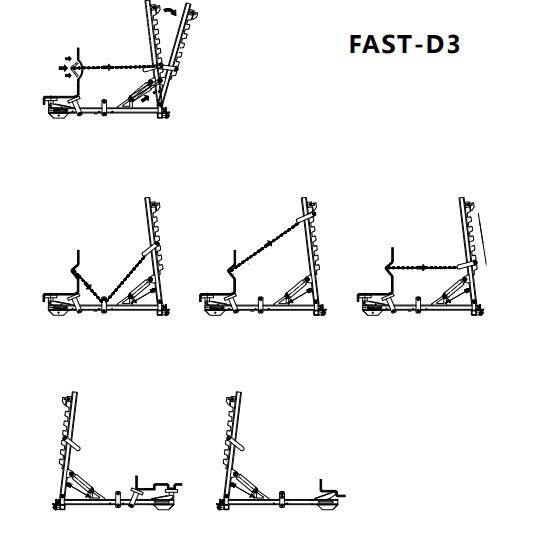

6. Multi angle stretching repair, multi-directional stretching repair can be carried out through
pulley
7. Take the vehicle body as the fulcrum and fix it quickly for tensile repair
Specification
| Length | 1005mm |
| Width | 650mm |
| Height | 900mm |
| Net Weight | 49kg |
| Gross Weight | 51kg |
| Hydraulic Pressure | 70Mpa |
| Pulling Capacity | 5 T |
