High Precision Power Chuck DK208
- Ningbo
- T/T PayPal
- 20 days
You May Like
Product Details
| Brand Name | CROVIT | Place of Origin | China | |
| Model Number | DK208 | Number of Jaws | 2 | |
| Power | Hydraulic |
Product Description
1. Specifications
Model | DK208 |
Thru Hole Dia. [mm] | 52 |
Plunger Stroke [mm] | 16 |
Jaw Stroke Dia. [mm] | 7.4 |
Max RPM [r.p.m.] | 5000 |
Max Draw Bar Pull Force [kgf(kN)] | 2240（22） |
Max Gripping Force [kgf(kN)] | 5710（56） |
Max. Hydraulic Pressure [kgf/cm2(MPa )] | 17（1.7） |
Weight [kg] | 23.0 |
Matching Cylinder | DC-1552 |
Gripping Range [mm] | Φ13～Φ210 |

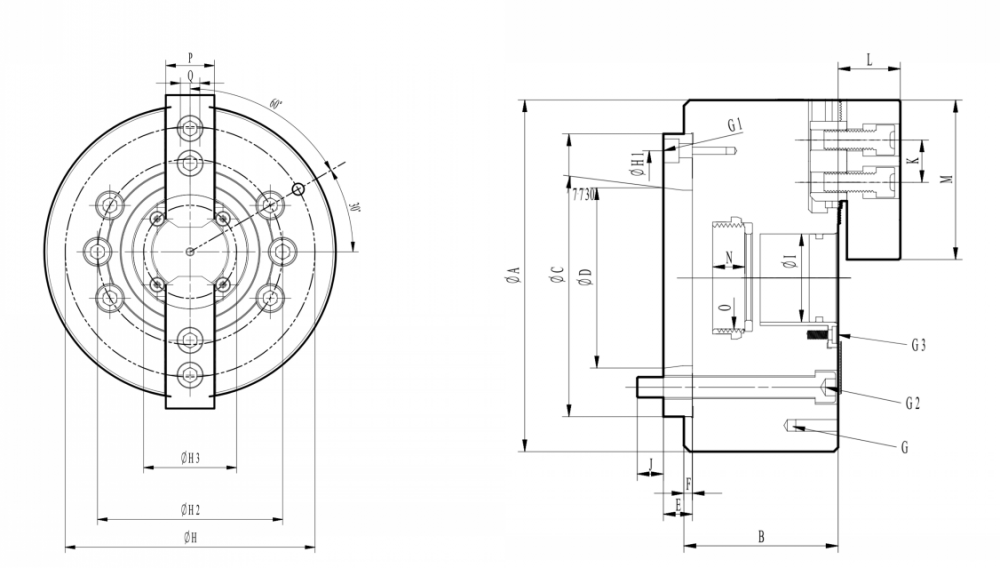

2.Dimension[mm]
Model | DK208 |
Spindle Nose No. | A2-6(A2-5) |
A | 210 |
B | 91 |
C(h6) | 170 |
D | 106.375 |
E | 17 |
F | 5 |
G | 6-M10x1.5P |
G1 | 3-M6 |
G2 | 6-M12x1.75P |
G3 | 4-M5 |
H | 180 |
H1 | 150 |
H2 | 133.4 |
H3 | 67 |
I | 52 |
J | 18 |
K | 25 |
L | 39 |
M | 95 |
N | 20.5 |
O | M60x2P |
P | 35 |
Q | 14 |
