3 Jaw 8 Inch Through Hole Power Chuck
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CROVIT
Place of Origin:
China
Model Number:
DK308
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
20 days
Related Products
Brand Name
CROVIT
Place of Origin
China
Model Number
DK308
Number of Jaws
3
Power
Hydraulic
1. Specifications
Model |
DK308 |
Thru Hole Dia. [mm] |
52 |
Plunger Stroke [mm] |
16 |
Jaw Stroke Dia. [mm] |
7.4 |
Max RPM [r.p.m.] |
5000 |
Max Draw Bar Pull Force [kgf(kN)] |
3360（33） |
Max Gripping Force [kgf(kN)] |
8360（82） |
Max. Hydraulic Pressure [kgf/cm2(MPa )] |
26（2.5） |
Weight [kg] |
21.9 |
Matching Cylinder |
DC-1552 |
Gripping Range[mm] |
Φ13～Φ210 |

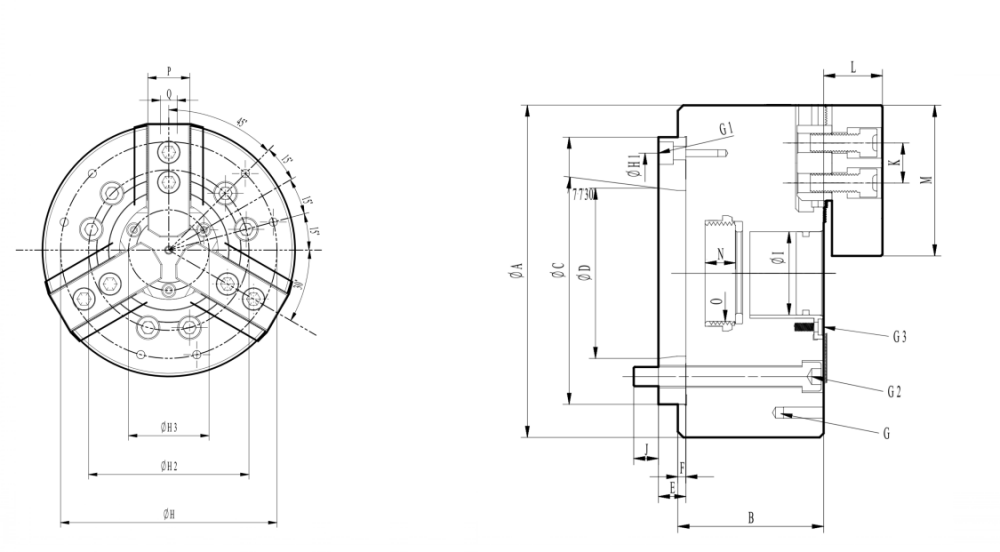

2. Dimension [mm]
Model |
DK308 |
Spindle Nose No. |
A2-6(A2-5) |
A |
210 |
B |
91 |
C(h6) |
170 |
D |
106.375 |
E |
17 |
F |
5 |
G |
6-M10X1.5P |
G1 |
3-M6 |
G2 |
6-M12X1.75P |
G3 |
3-M5 |
H |
180 |
H1 |
150 |
H2 |
133.4 |
H3 |
67 |
I |
52 |
J |
18 |
K |
25 |
L |
39 |
M |
95 |
N |
20.5 |
O |
M60X2P |
P |
35 |
Q |
14 |
