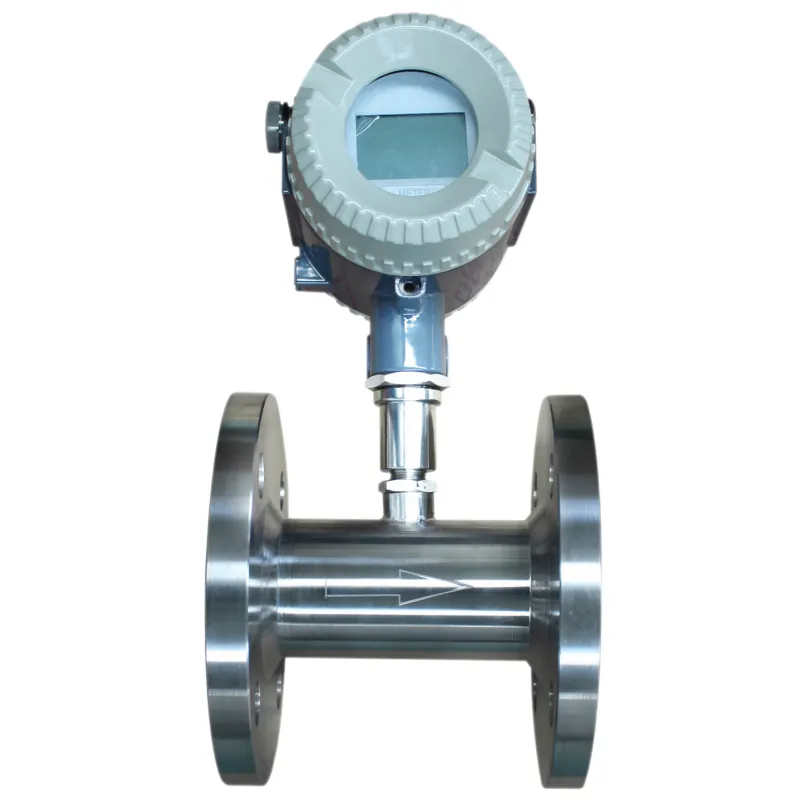

Help CenterHigh-Precision Turbine Flowmeter ±0.5% Accuracy for Water Treatment
Product Spotlights
Related Products
-
Explosion-Proof Turbine Flowmeter ATEX Certified for Hazardous AreasNegotiableMOQ: 1 Piece -

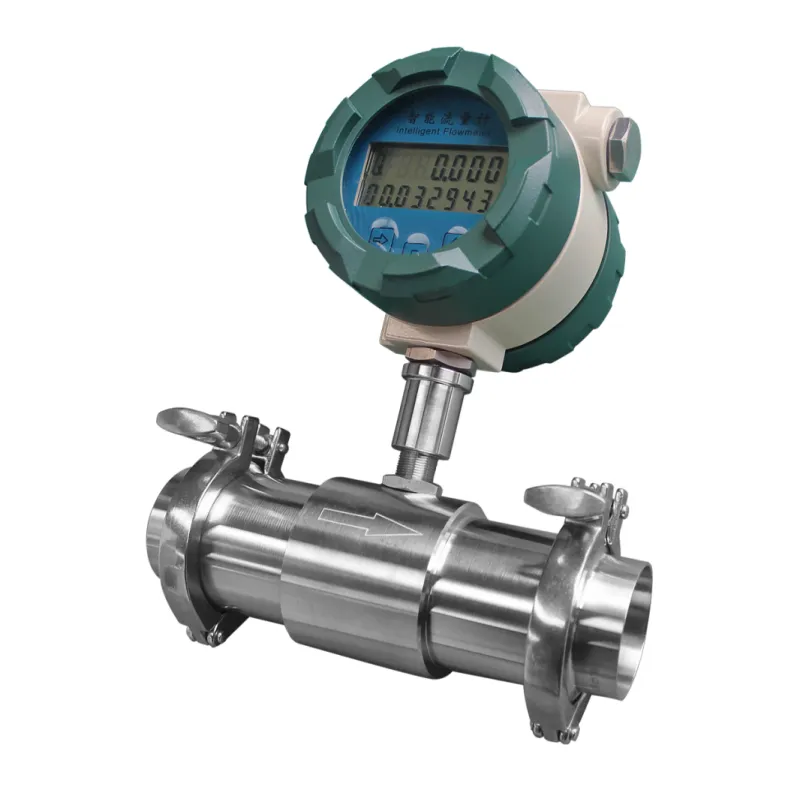

Food-Grade Turbine Flowmeter With CIP Cleaning for Beverage ProductionNegotiableMOQ: 1 Piece
-
DN50 Turbine Flowmeter With PTFE Bearings for Chemical ProcessingNegotiableMOQ: 1 Piece
-
Turbine Flowmeter With NIST-Traceable Calibration for Custody TransferNegotiableMOQ: 1 Piece
-
Low-Flow Turbine Flowmeter 0.1-10 L/min for Laboratory UseNegotiableMOQ: 1 Piece
Shanghai CAMP Environmental Protection Technology Co., Ltd., established in 2015, specializes in providing precision measurement solutions for global water treatment facilities. As a trusted agent with extensive reach across North America, South America, Eastern Europe, and beyond, we introduce our High-Precision Turbine Flowmeter engineered for exceptional ±0.5% accuracy. This instrument delivers reliable volumetric flow data critical for process control and resource management in industrial and municipal applications.
Core Technical Specifications:
Calibrated for water-based liquids including potable water and wastewater
Mechanical durability with stainless steel rotor and bearings
Low-pressure drop design minimizes energy consumption
Bi-directional flow measurement capability
| Parameter | Specification |
| Pipe Size Compatibility | DN15 to DN200 |
| Repeatability | ≤0.2% |
| Viscosity Range | 1-10 cSt |
Operational benefits include minimized maintenance requirements through self-cleaning rotor design and compatibility with SCADA systems via configurable output signals. The flowmeter's construction ensures long-term stability even in aggressive water treatment environments, reducing total cost of ownership.
Frequently Asked Questions:
Q: How does temperature affect measurement accuracy?
A: Built-in temperature compensation maintains specified accuracy across the operating range.Q: Is it suitable for abrasive fluids?
A: Not recommended for slurries; optimal for clean or lightly contaminated liquids.Q: What upstream straight-pipe length is required?
A: Minimum 10 pipe diameters upstream, 5 downstream for optimal performance.Q: Can it interface with existing PLC systems?
A: Yes, through standard 4-20mA or pulse output options.Q: What is the typical service interval?
A: 24-month calibration cycle under normal operating conditions.Q: Is chemical resistance testing available?
A: Material compatibility data provided upon request.
With established partnerships across 15 global markets including Oceania, Africa, and Western Europe, Shanghai CAMP brings you field-proven instrumentation backed by technical support. Our flow measurement solutions help water treatment facilities achieve precise process control while meeting regulatory compliance requirements. Contact our engineering team today for application-specific configuration guidance.
Send Inquiry to This Supplier
You May Also Like
-
Turbine Flowmeter With 2-Year Warranty and Calibration CertificateNegotiableMOQ: 1 Piece
-
316L SS Turbine Flowmeter With Pulse Output for Oil & Gas ApplicationsNegotiableMOQ: 1 Piece
-
CE Certified 304 Stainless Steel LED Digital Turbine Flowmeter for Liquids and FuelNegotiableMOQ: 10 Units
-
Explosion-Proof Heavy Duty Turbine Flowmeter for High Temperature ApplicationsNegotiableMOQ: 10 Units
-
High Accuracy LPG Liquid Turbine Flow Meter With Good Repeatability for Industrial UseNegotiableMOQ: 10 Units
-
Intelligent Explosion-Proof Gas Turbine Flowmeter With On-Site Standard DisplayNegotiableMOQ: 10 Units
-

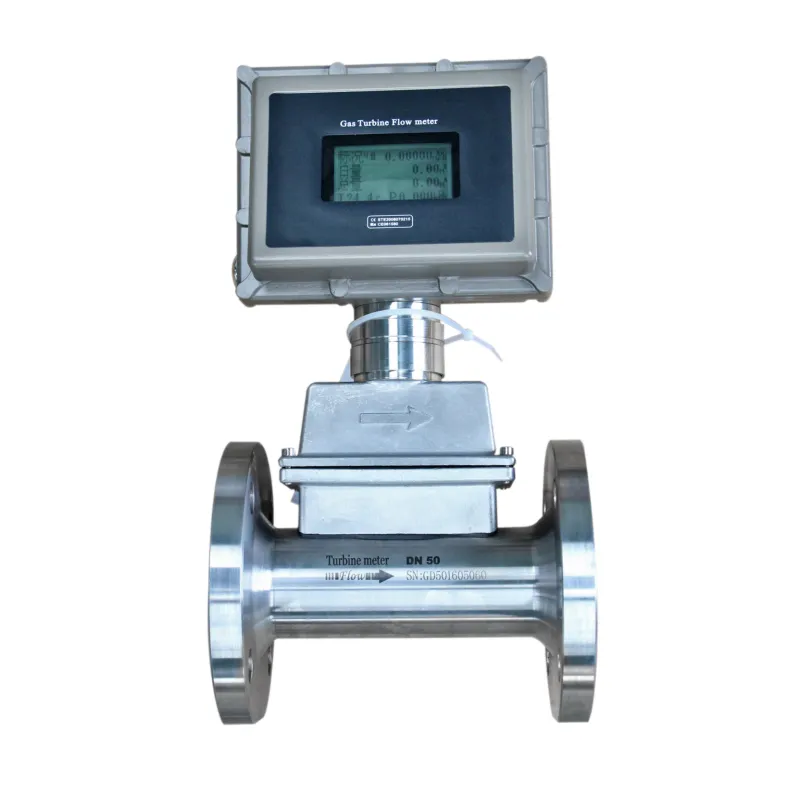

Precision Gas Turbine Flow Meter for Natural Gas, LPG, and Fuel GasNegotiableMOQ: 10 Units
-
