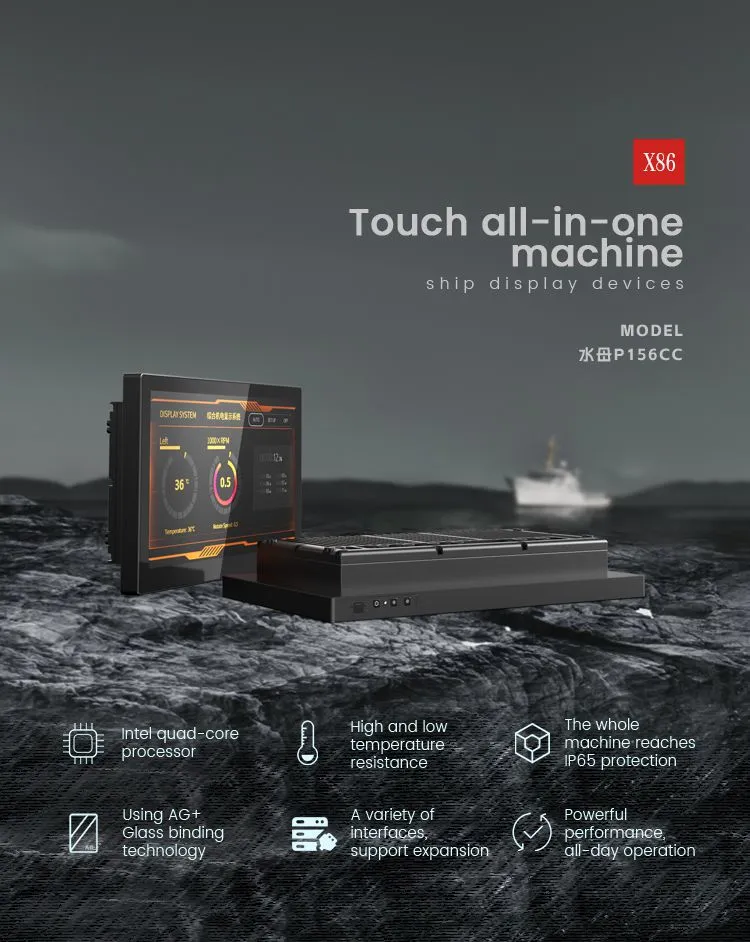

Help Center15.6 Inch Industrial Computer Full Body IP65 Rated Dustproof Waterproof Anti-Glare Anti-fogging Function Outdoor High Brightness 1000 Nits
Related Products
-
Marine Full Body IP65 Waterproof 15.6-Inch Touchscreen Industrial Control All-in-Ones Embedded Tablet Anti-Glare Anti-fog MEKTUS$ 1335 - 2000MOQ: 1 Unit -
13.3 Inch Android 11 Touch All-in-one Embedded Wall-Mounted Desktop Computer 1920*1080 Resolution Outdoor 1000 NitsUS$ 448 - 500MOQ: 1 Unit
-
XC9016 Dual Ethernet Embedded Industrial Control Computer POE Industrial Control Computer I3/i5/i7 Embedded Industrial Control Host-MEKTmingyikeUS$ 425 - 550MOQ: 1 Unit
-
19 Inch Capacitive Touch Screen Monitor High Brightness Lcd Monitor-MEKTmingyikeUS$ 405 - 410MOQ: 1 Unit
-
Industrial Touch One Computer10.1inch Multimedia Touch One Machine Highlight Outdoor MonitorUS$ 505 - 508MOQ: 1 Unit
Display Pane |
Brand |
HAOFCC |
Model |
P156CC |
|
Size/Proportion |
15.6 inch 16:9 |
|
discrimination rate |
1920*1080 |
|
Brightness |
1000cd/㎡（Button dimming can control 0%~100%) |
|
Contrast |
1000:1 |
|
Display color |
16.7m |
|
Response time |
2-5ms |
|
Visible angle |
85/85/85/85(Typ.CR≥10) |
|
Pixel pitch(mm) |
0.17925×0.17925 mm [141PPI] |
|
Draw quality |
3D noise reduction, high-definition signal, progressive scan |
|
Touch Function |
Touch screen |
Capacitive touch screen (10 points) |

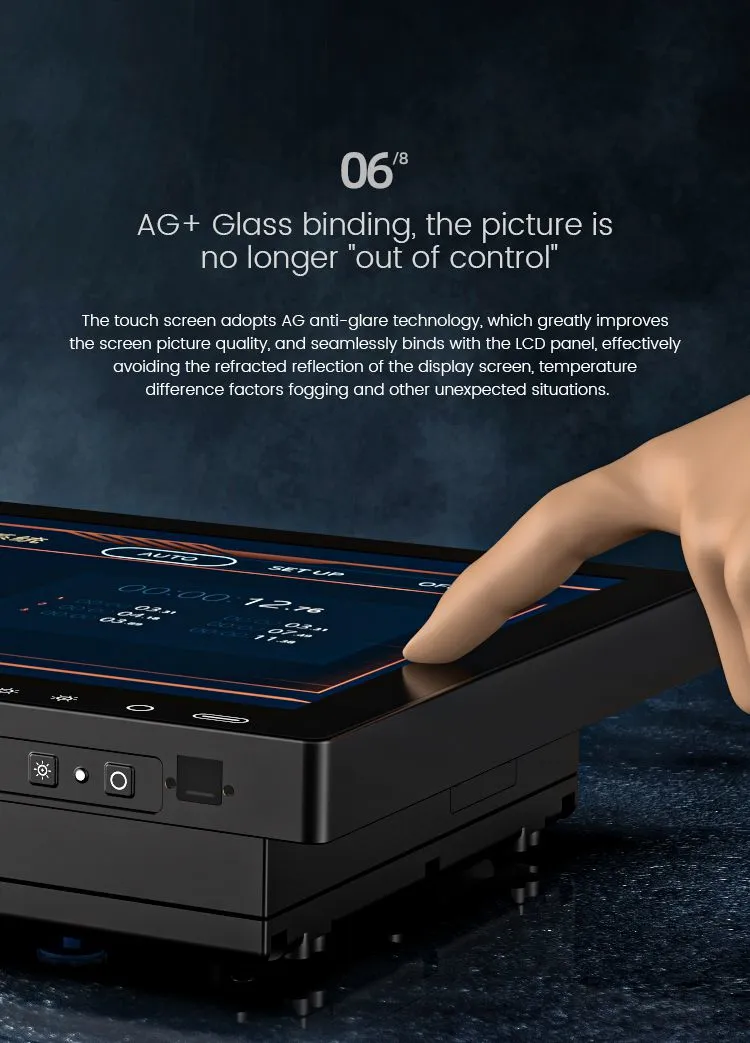

AG Anti-Glare+ Optical full fit |
||
Surface hardness |
≥6h |
|
Transmittance |
＞95% |
|
Positioning accuracy |
less than 2mm |
|
Click lifetime |
> 60 million times |
|
Touch medium |
Current sensing, capacitive touch pen, finger |
|
Right-click function |
click on a certain point and press for more than 3 seconds |
|
Touch interface |
USB |
|
|
Motherboard Function |
Mainboard |
HAOFCC industrial motherboard |
CPU |
Intel Celeron J6412 Quad-core |
|
the cpu frequency is 2.0ghz，Max Speed Up to 2.6GHz |
||
Secondary cache 1.5 MB L2 Cache |
||
integrated graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
fundamental frequency |
400MHz |
|
dynamic frequency |
800MHz |
|
System |
Windows 10 IoT Enterprise（Support Windows11，Linux） |
|
RAM |
4GB (optional 8G/16G/32G) |
|
SSD |
128GB(optional 256G/512G/1T/2T) |
|

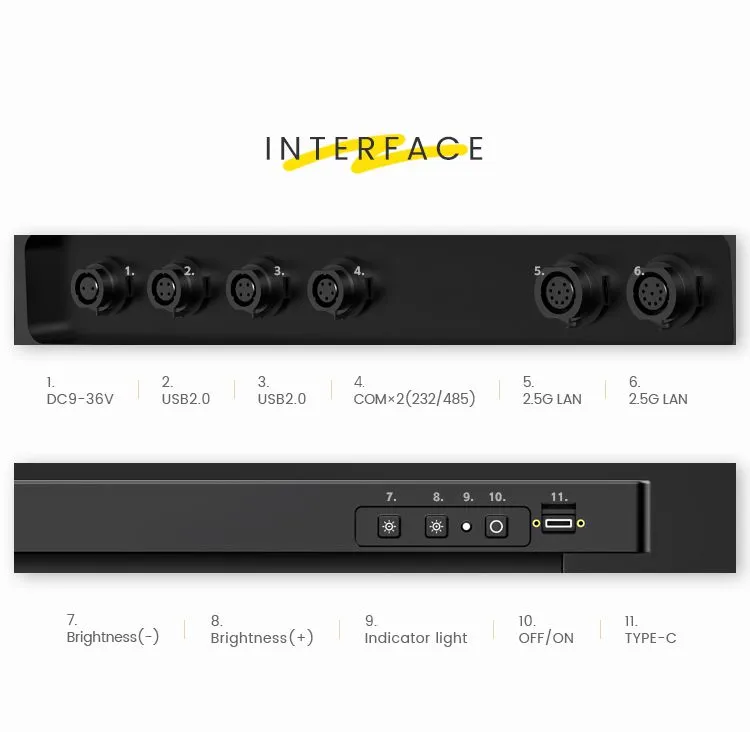

USB |
USB2.0*2 |
|
COM |
COM*2 RS232(485)*1、RS485*1 （Customizable RS422） |
|
LAN |
LAN*2 Intel® 10M/100M/1000M/2.5Gbps adaptive |
|
Type-C |
Type-C*1 |
|
Wireless Network |
Wireless card |
/ |
Open Close |
Power |
Power*1 (power-on and power-on function can be set) |
Power Input |
AC/DC |
DC9-36V |
Watchdog |
Watch dog timer |
0-255 seconds, providing watchdog routine |
|
Product Power |
Power |
≤20W |
|
Work Environment |
Operating Temperature/humidity |
-20℃ to +70℃/ 0-80% relative humidity, no condensation |
|
Storage Temperature/humidity |
-40℃ to +80℃/ 0-90% relative humidity, no condensation |
|
|
Product Service |
After service |
one-year warranty and lifelong maintenance |
Customized service |
OEM/ODM is available for material, appearance, dimensions, wide temperature, outdoor highlight, wide voltage, etc. |
