VACUUM CENTRIFUGAL CONCENTRATOR

NEWMEEN SERIES VACUUM CENTRIFUGAL CONCENTRATOR

Suzhou Newmeen Scientific Instruments Co., Ltd. is a company specializing in the production of various of centrifugal evaporation and concentration equipment. And products are widely used in life science, chemistry, analysis and other fields.

Working principle:

The boiling point of the solvent decreases with the decreases of the pressure. When the pressure drops to a certain level, the solvent can boil and evaporate at a relatively low temperature. In order to avoid sample evaporation and cross-contamination, high-speed centrifugal rotation technology is used to ensure that the sample is in the sample tube and will not be ejected.

Technical advantages:

High-throughput : Dozens to hundreds of samples can be processed at the same time without cross-contamination.

Low-temperature concentration : avoid sample loss, denaturation, activity decline, and oxidation.
Less loss: The sample does not produce foam, so that the loss is less and the yield is high.

Safe and simple : One-key operation, safe and convenient, avoid misoperation.

Scope of application:

⊙Oligomers and peptides ⊙Synthesis and separation of organic substrates

⊙RNA/DNA research      ⊙Clinical diagnostics

⊙ADMET (Drug Metabolism Research) ⊙Protein Crystallography

⊙Pharmaceutical analysis, medicinal chemistry ⊙General laboratory enrichment

A Vacuum Centrifugal Concentrator is a sophisticated laboratory instrument designed for the rapid and efficient concentration of samples through the application of vacuum and centrifugal force. This cutting-edge device finds widespread application in diverse scientific fields, including chemistry, biochemistry, and molecular biology.

Equipped with a robust vacuum system, this concentrator operates by creating a controlled low-pressure environment, enabling the swift removal of solvents from liquid samples. Its centrifugal component enhances the process by exerting force on the samples, expediting the concentration of target analytes. This dual-action mechanism ensures a faster and more precise sample concentration compared to traditional methods.

The Vacuum Centrifugal Concentrator is invaluable in sample preparation for various analytical techniques such as chromatography and spectroscopy. It is particularly useful in the removal of solvents from biological or chemical samples, leading to increased analyte concentration and improved sensitivity in downstream analyses.

Key features often include adjustable parameters for temperature and vacuum level, ensuring versatility in accommodating a wide range of sample types. This instrument streamlines workflows in research and diagnostic laboratories, making it an indispensable tool for scientists seeking enhanced efficiency and reliable results in sample concentration processes.

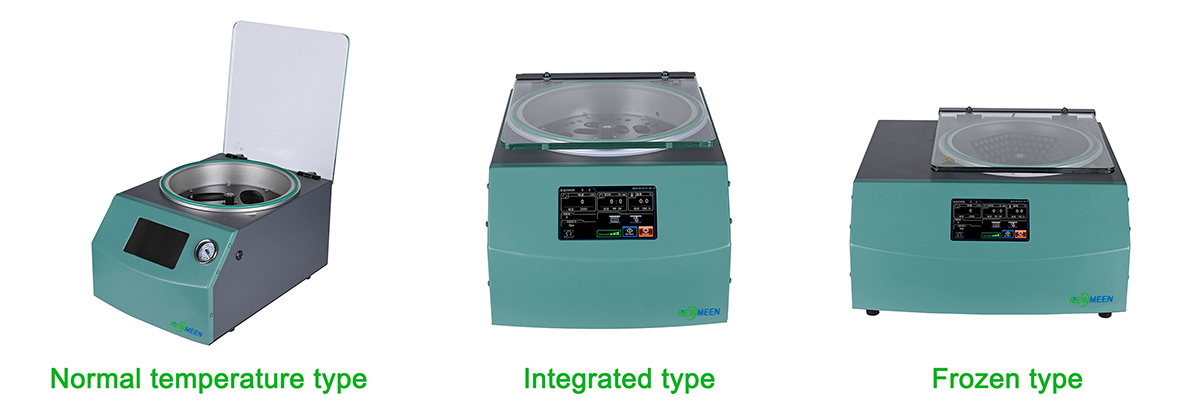

There are four types of newmeen series vacuum centrifugal thickeners: Normal temperature type, Integrated type, Frozen type.

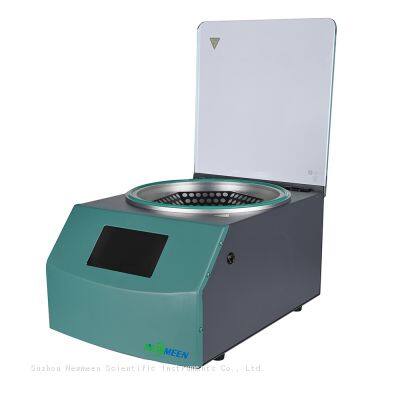

NEWMEEN Normal Temperature Type Vacuum Centrifugal Concentrator

The NEWMEEN Normal temperature type vacuum centrifugal concentrator is suitable for evaporating solvent samples with small volume and medium boiling point. It has the function of quickly and safely evaporating water and organic solvents in the sample. EP tubes, glass test tubes, A variety of centrifuge tubes, chromatography bottles, centrifuge bottles or 96-well plates are suitable use in it.

Normal temperature type model selection guide:

NMNS-1200PT: The host (solid pressure gauge) can be equipped with all rotors as an option

NMNS-1200PT+: The host (electronic pressure gauge) can be equipped with all rotors as an option.

NMNS-1200PT3L: The set (including NMNS-1200PT host, 3L cryotrap, DVP-8 oil pump, large flux hexagon rotor) can match all rotors.

NMNS-1200PT+3L: The set (including NMNS-1200PT+ host, 3L cryotrap, DVP-8 oil pump, large flux hexagon rotor) can match all rotors.

NMNS-1200PT+5L: The set (including NMNS-1200PT+ host, 5L cryotrap, DVP-8 oil pump, large flux hexagon rotor) can match all rotors.

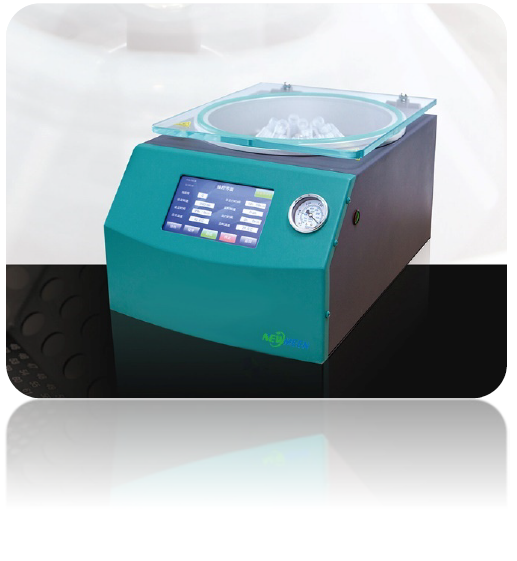

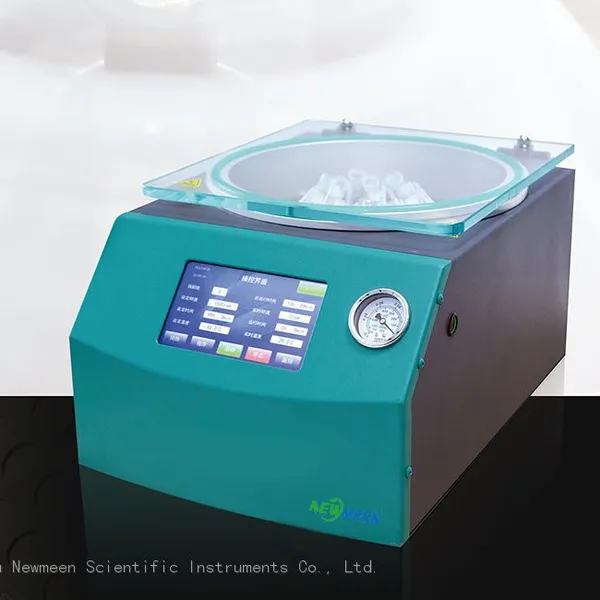

NEWMEEN NMNC-1200PT Vacuum Centrifugal Concentrator (Pressure gauge)

Product features:

1. Support normal temperature concentration, temperature range: room temperature ~ 100 ℃, 0.1 ℃ increment.

2. Anti-chemical corrosion centrifugal chamber of acid and alkali resistance which is one-piece molding of R angle arc design that would be easy to clean.

3. The original internationally renowned brand pressure reducing valve automatically releases the vacuum, which is easy and safe to operate, and has the function of automatic switch.

4. Modular design, the centrifugal chamber, vacuum chamber, vacuum pump and cryotrap are all in one body, which can be freely assembled.

5. AC frequency conversion maintenance-free induction motor that has an electromagnetic drive centrifugal system, which can make less noise and maintenance-free.

6. Built-in vacuum delay function to effectively protect samples and prevent splashing.

7. Built-in 32 sets of different programs, which can be called arbitrarily according to different samples.

8. 7-inch touch screen displays: equipment operating status, program group number, set and actual speed, set and actual temperature, set time and running time.

9. The air inlet is equipped with a HEPA high-efficiency air filter, which can be filled with nitrogen, and the vacuum will be automatically released after power failure to protect the sample.

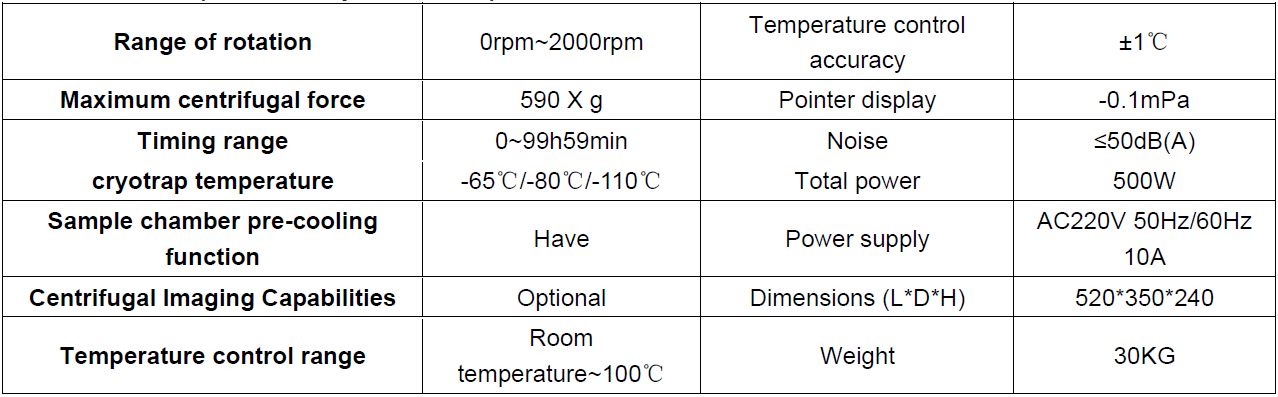

NMNS-1200PT (Technical parameters)

Remark: You can use voltage converters or customize according to regional differences.

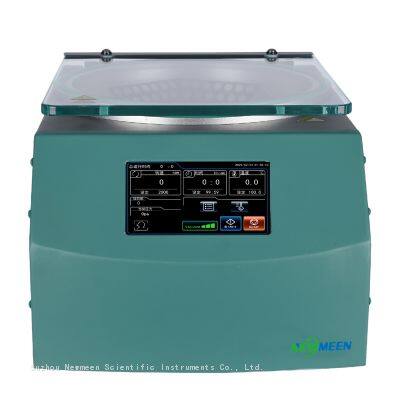

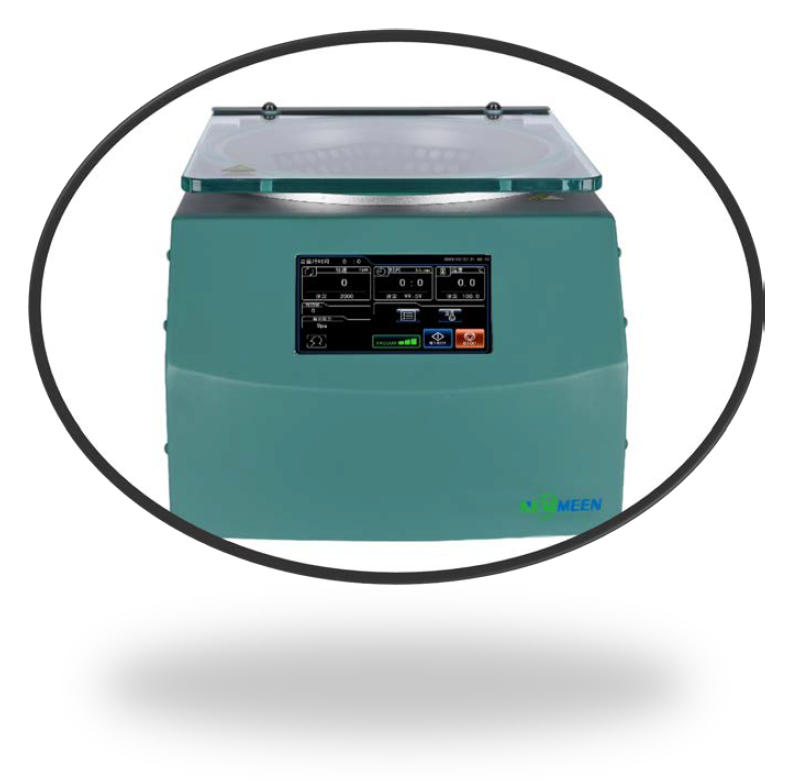

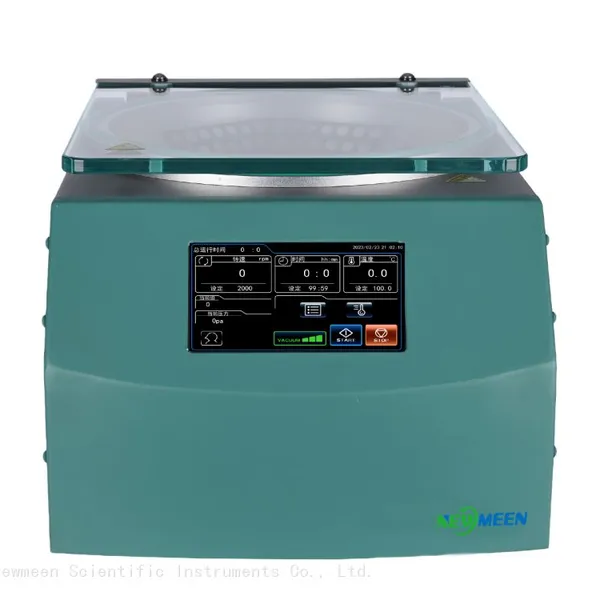

NEWMEEN NMNC-1200PT+ Vacuum Centrifugal Concentrator (Electron pressure)

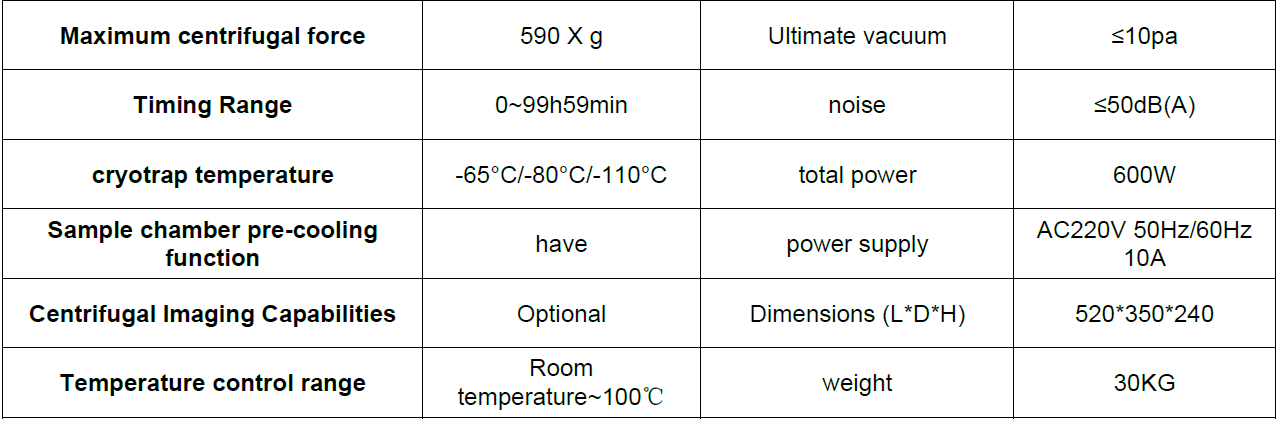

NMNS-1200PT+ (Technical parameters)

Remark: You can use voltage converters or customize according to regional differences.

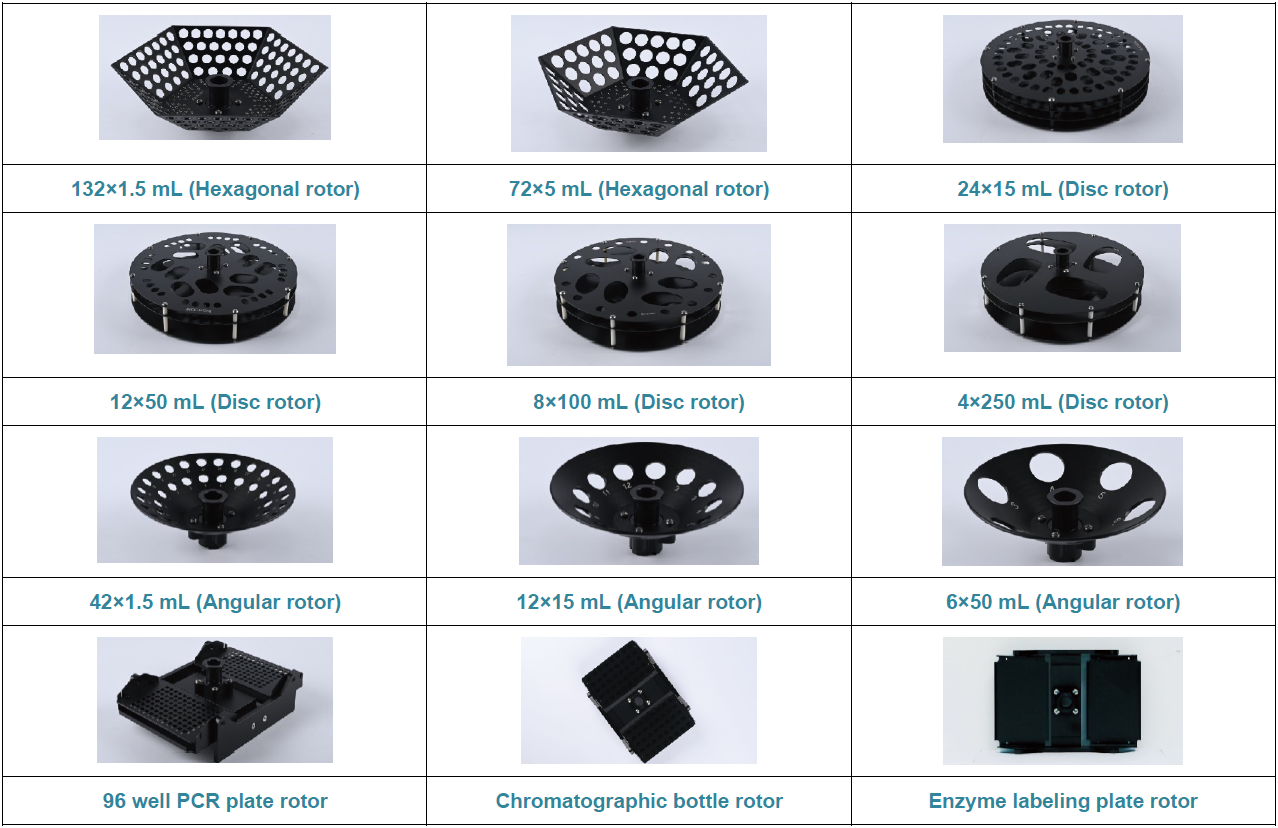

Vacuum refrigerated centrifugal concentrator accessories - Rotor
