SP-UV 500 Ultraviolet and Visible Spectrophotometer UV-VIS Spectrophotometer

Manufactured by PerkinElmer Inc's wholly-owned factory, our spectral products (atomic absorption spectrophotometers, UV visible spectrophotometers) have been widely used in the petrochemical industry, environmental monitoring, food safety, biopharmaceutical, mining, scientific research, education, and variable related fields Exported to more than 30 countries and regions such as Europe, North America, South America, Africa, and Southeast Asia The products are well recognized by experts and professional from all over the world.

Professional UV visible spectrophotometer, cost-effective choice.

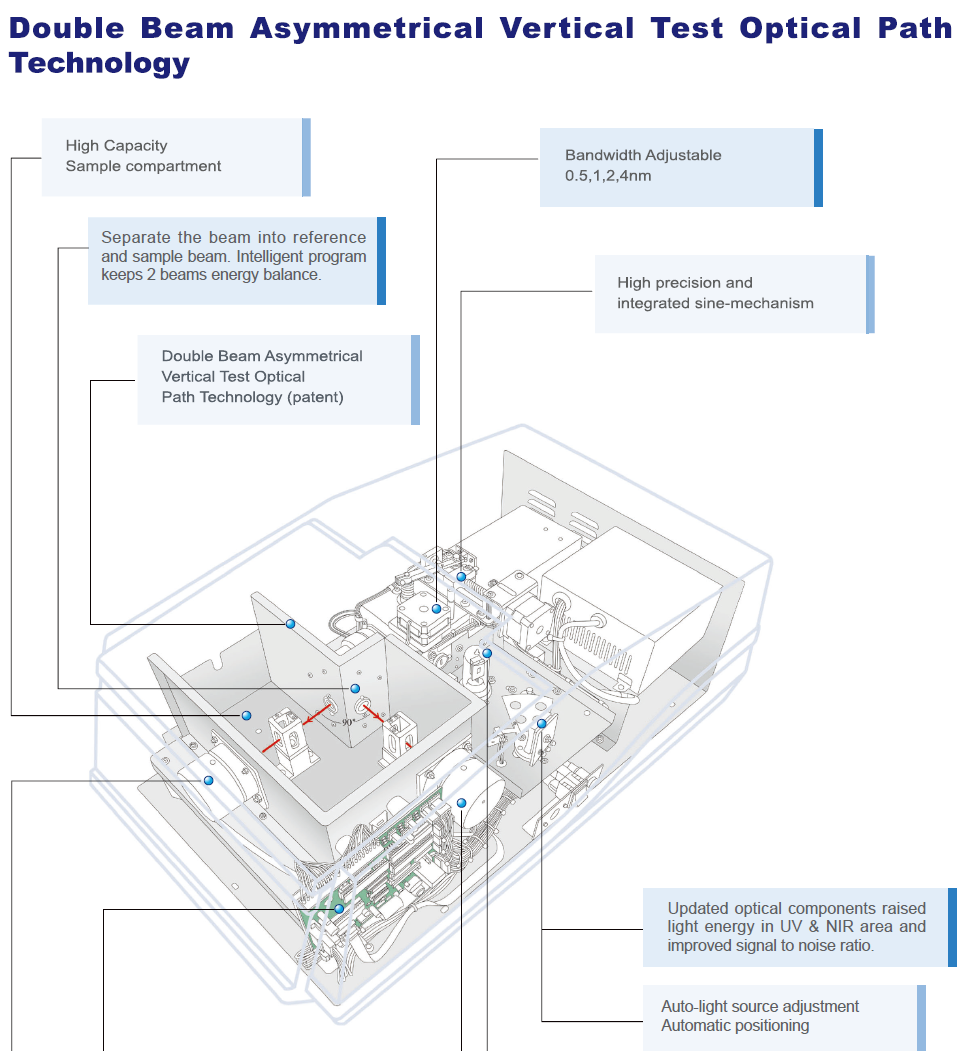

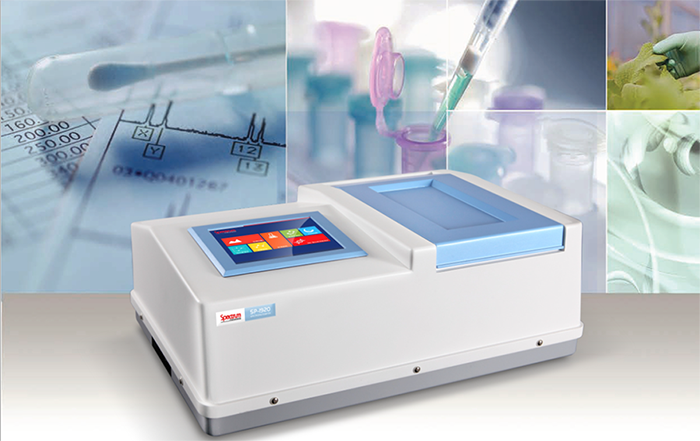

The SP-UV 500 (SP-UV500DB / SP-UV 500VDB) series is a double beam spectrophotometer in the production series of Spectrum Instruments It gets a technology patent - "space separated double beam, Non Symmetric vertical optical path" Compared with traditional double beam technology, simplified optical path improves reliability The "width narrow and depth deep" design saves placement room.

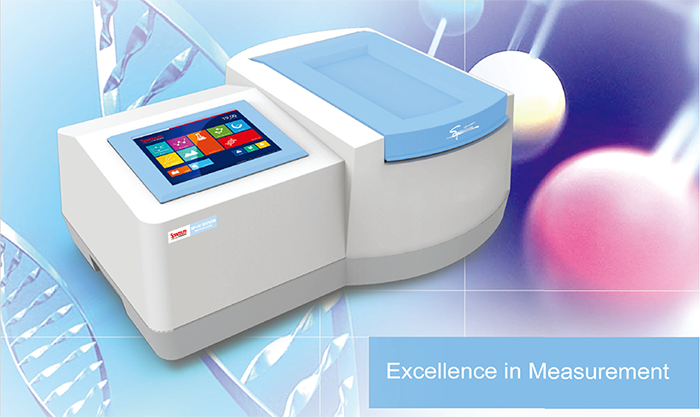

Original Touch Screen of SP-UV 500 (SP-UV500DB / SP-UV 500VDB), the end users can control the instrument by the touch screen without the keypress Streamline appearance and pretty colors express a new style fashion.

Recommended Application: Universities, Medicine, Food, Agriculture, Environment Protection, Petroleum, Chemical Industry, Research and Development, QA&QC Etc.

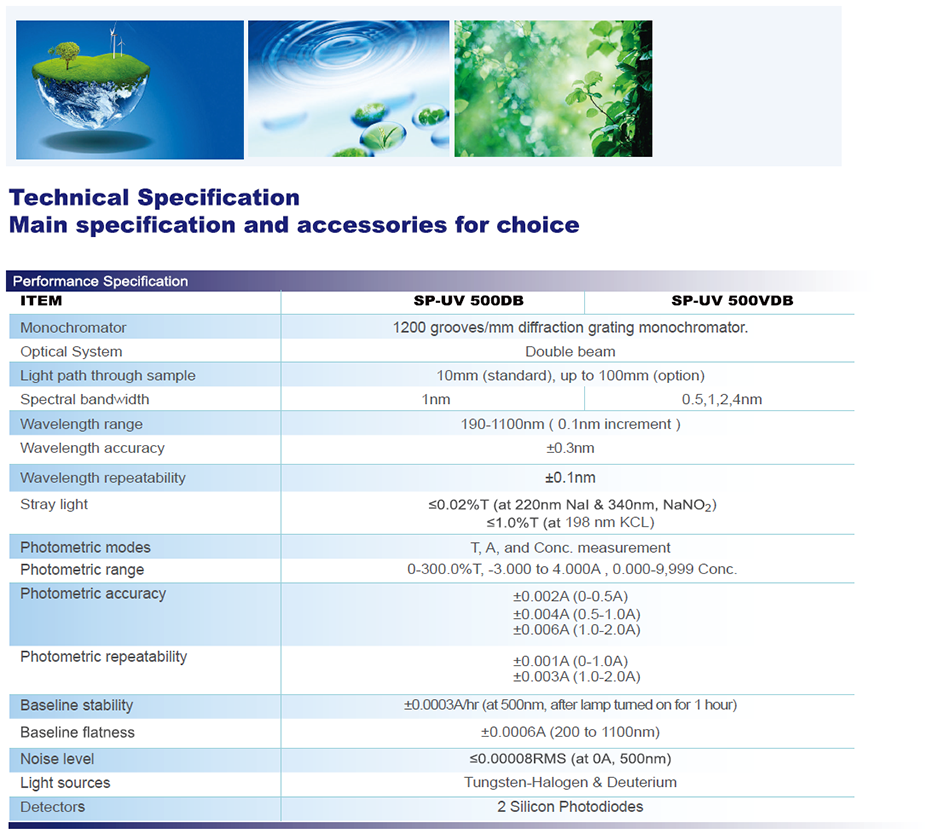

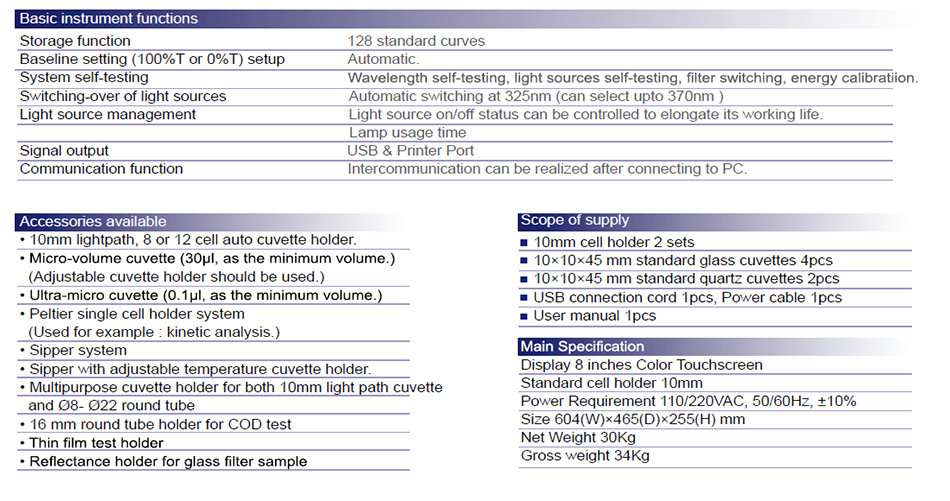

Specification of SP-UV 500 Series:

SP-UV 500VDB

Bandwidth adjustable 0.5, 1, 2, 4nm

8 inches touch screen for operation

SP-UV 500DB

Bandwidth fix at 1nm

8 inches touch screen for operation

General spectrophotometer workstation software Standard, Drug test, Biochemistry, Chemical Residue, Environment.

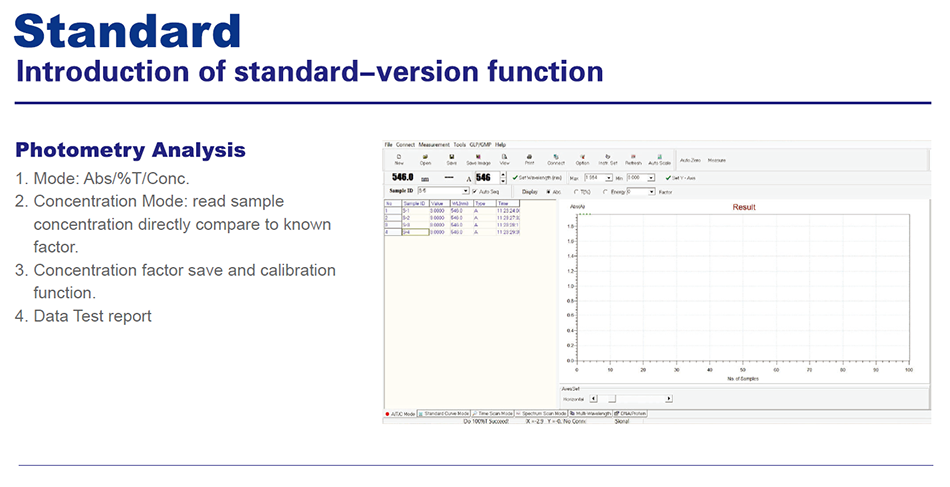

Standard Function:

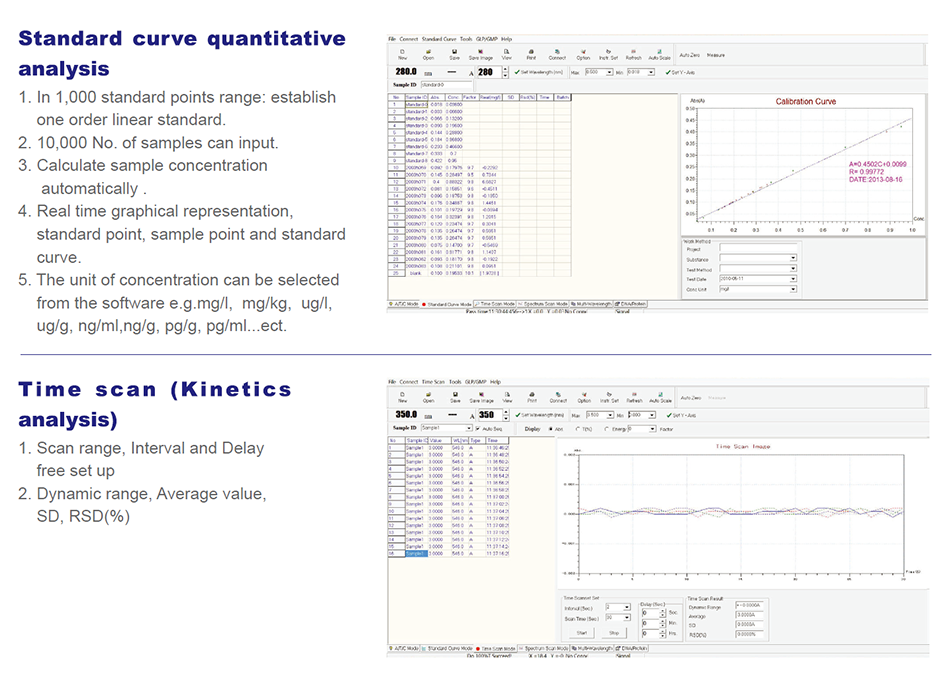

Photometric Analysis+Standard Curve Quantitative Analysis+Spectral Analysis+Time Scan.

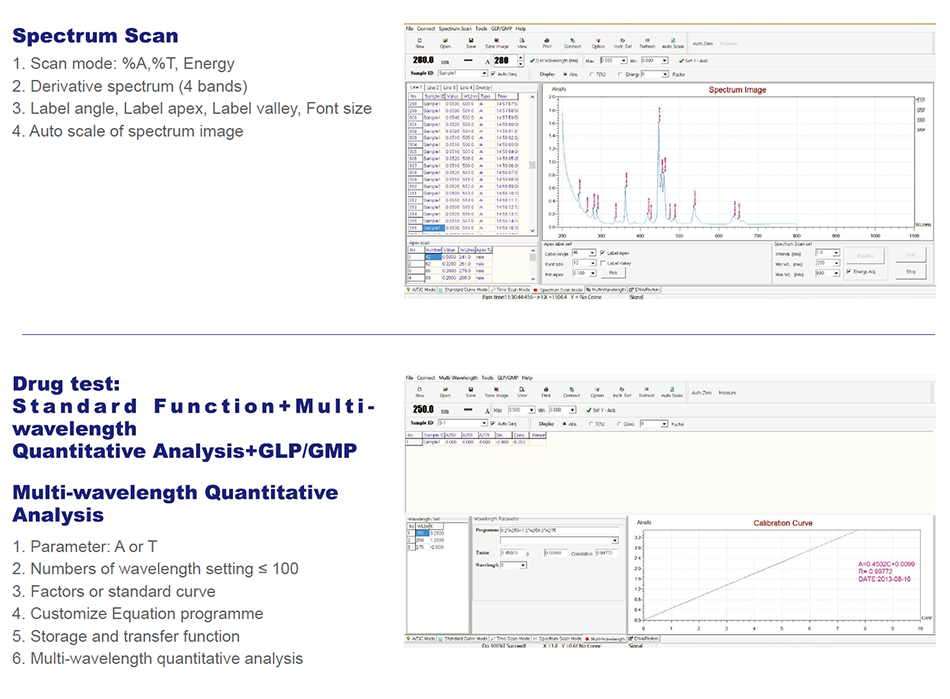

Drug Test Function:

Standard Function+Multi-wavelength Quantitative Analysis+GLP/GMP.

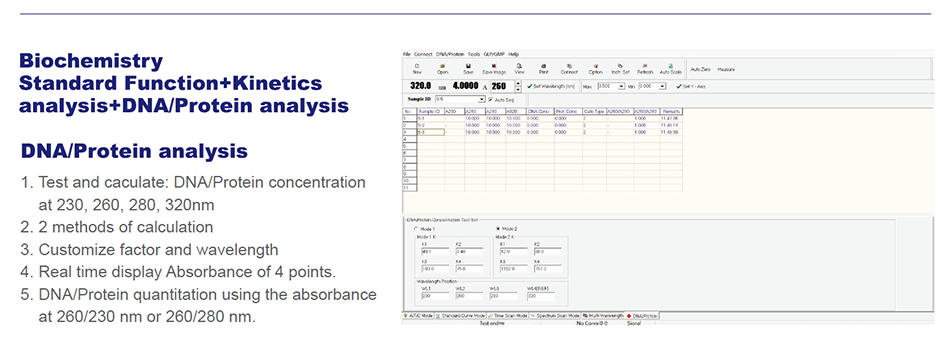

Biochemistry:

Standard Function+Kinetics Analysis+DNA/Protein Analysis.

Pesticide Residue:

Standard Function+Fast Pesticide Residue Test.

Environment:

Standard Function+ Formaldehyde/Nitrogen Test.

Characteristic

- Operation software: Win-spec SP-5.0EN can run on Windows XP, Windows 7/8

- Data sharing: test data can be shifted to word,excel program or other application software.

- Data processing and graphical representation function include:

Calculation, Automatic peak search, Feature point, Mathematical statistics, Free remark and so on.

- Professional application function: Data processing function, Standard curve,Time scan, Spectrum scan,Multi-wavelength analysis, DNA/Protein analysis.

- QA/QC function, automatic calculation of linear correlation coefficient.

- GLP/GMP support.

- Data encryption and E-mail function.

- Standard and graceful test report & graphic output.
