Home > Products > Farm Machinery Parts > Retrofitting Large Tractors With Triangular Track Wheels for Anti Slip and Anti Sinking

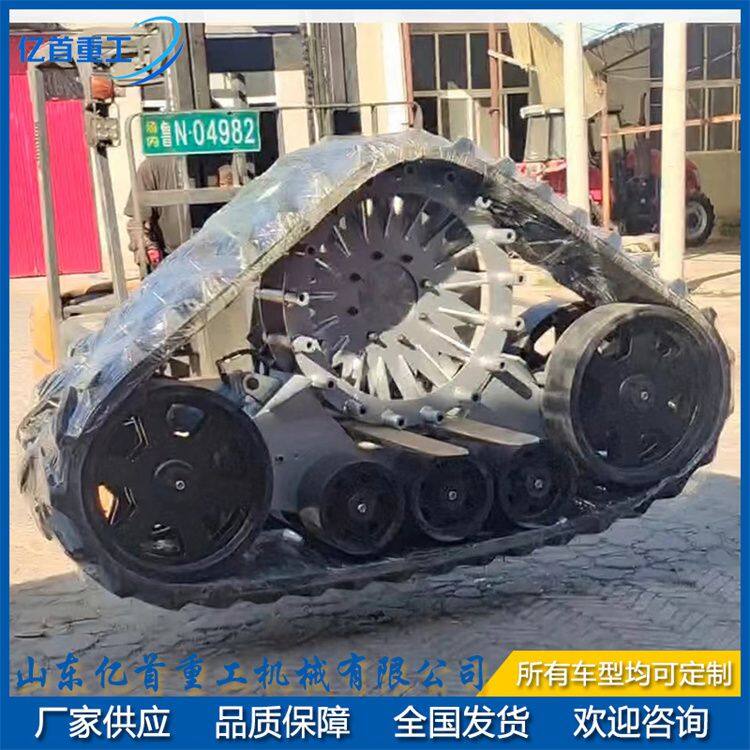

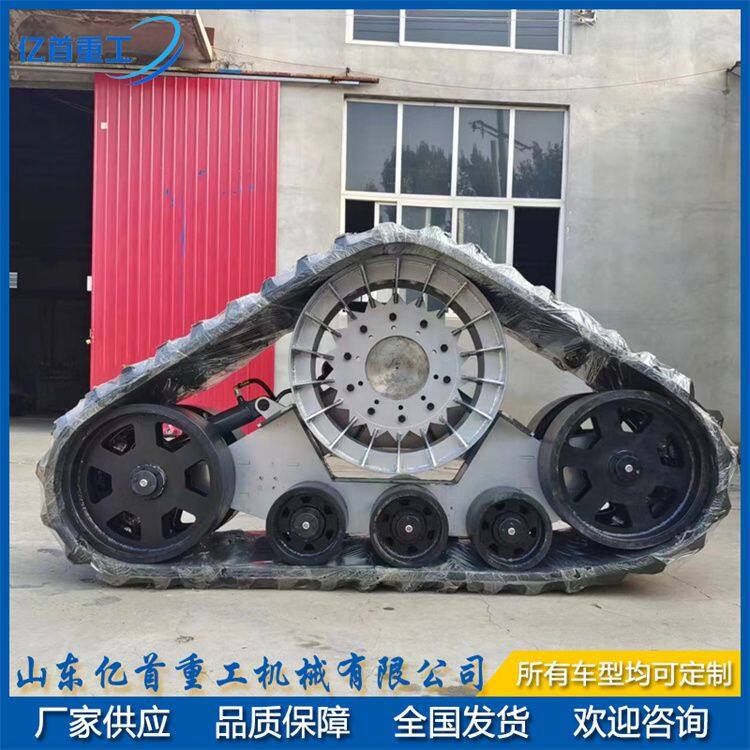

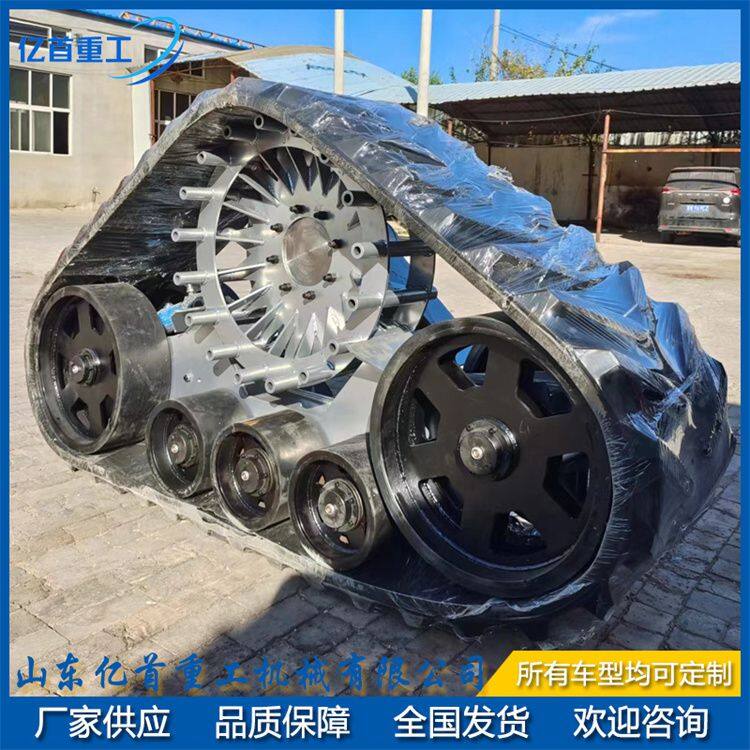

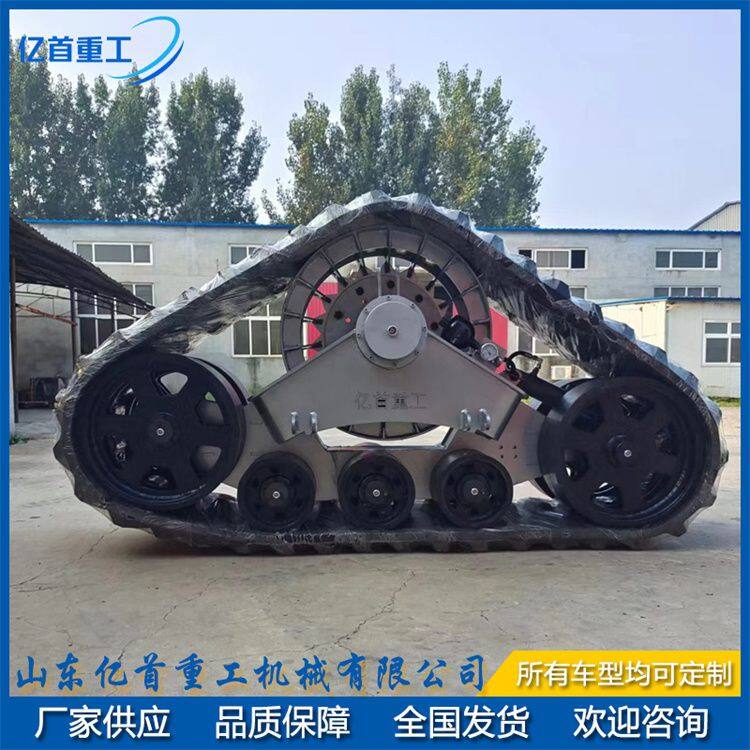

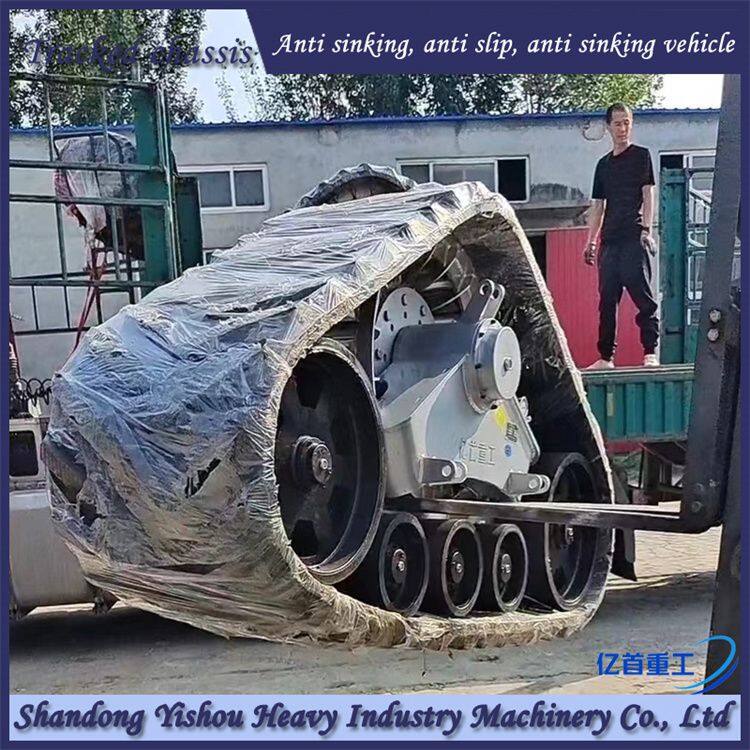

Retrofitting Large Tractors With Triangular Track Wheels for Anti Slip and Anti Sinking
- Each port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
-
Installation of Large Rubber Track Half Chain Track Harvester
-
Tractor Modification Anti Sinking Semi Chain Track Anti-skid on Muddy Ground
-
Modification of Agricultural Tractors With Triangular Track Wheels for Anti-skid in Muddy Swamps
-
Retrofitting Agricultural Tractors With Anti Sinking Semi Chain Rails for Stable and Reliable Operation in Muddy Deserts
-
Corn Harvester Modified With Triangular Track Wheels for Anti Slip in Flooded Areas
-
1404 Tractor Modified With Rubber Track, Half Chain Rail, Mud Leveling, Stable and Reliable
Product Details
| Brand Name | Shandong Yishou Heavy Industry | Place of Origin | China | |
| Model Number | model complete |
Product Description
Adjusting the tension of the track can reduce the wear of the drive wheels and prevent the track from deviating from the track. When adjusting, park the tractor on a flat and hard ground, place a wooden strip on the track pin shaft at both ends of the track between the two support rollers, and measure the distance from the upper surface of the track pin shaft at the sag of the track to the lower plane of the wooden strip. When the tightness is normal, this distance should be 30-50mm. If it does not meet the requirements, the adjustment nut of the tension bolt of the guide wheel can be tightened, and the adjustment can be made by changing the front and rear positions of the guide wheel. If the tensioning bolt has been adjusted to the bottom but the track is still too loose, one section of the track plate should be removed before adjustment. After adjusting the tension appropriately, the compression length of the buffer spring should be 260-265mm to ensure normal buffering effect. Otherwise, it should be readjusted to the standard.
