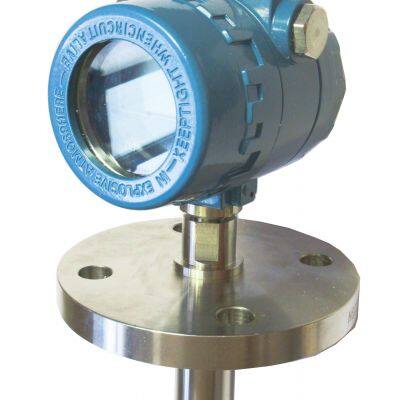

Help CenterPlug-in Crude Oil Water Analyzer
Related Products
Product Introduction
SY-HSY series moisture analyzer adopts advanced matrix high-precision sensing structure combined with hierarchical identification and error correction function technology and dual-channel technology, breaking through the traditional measurement methods. Hardware and software adopt temperature compensation to solve the interference of measurement environment and temperature drift on measurement accuracy. A table can achieve water content, temperature information, etc., but also through the upper computer software to collect data for calculation and processing to obtain more information, such as water content, temperature, water curve and other information, remote upgrade program and modify parameters, through the upper computer one-time calibration, reduce workload, improve efficiency, to achieve digital management.
Can be used in oilfield wellhead, combined station pipeline, chemical plant production line water detection, high water cut, low water cut crude oil and exported crude oil, benzene and other organic liquids; In addition to pipelines, it can also be used for storage tanks or irregular containers for heavy oil and high waxy crude oil, which is not easy to maintain.
The calibration method is humanized, and the calculation of high and low water content is automatically switched to ensure that the water content value is stable and reliable. The actual calibration can be carried out based on the laboratory data. The debugging software can write the calibration value at one time, and the linear range of high and low water content can be arbitrarily calibrated according to customer requirements.
In nuclear power plants, there are certain standards for the ratio of resin, water and cement, so the measurement and control of resin amount is an important index in curing treatment. However, due to the difficulty of this measurement technology, there is no real water content analysis, layered water content and other measurement related products at home and abroad, we use radiation resistance process processing technology and core patent technology analysis and processing to solve this measurement technical problem.
Industrial standard electrical signal output and can be transmitted to DCU, DCS, PLC, industrial acquisition module, industrial control computer and other equipment for monitoring and control, improve the automation level of production. Can be widely used in nuclear power, petroleum, electric power, chemical, textile, steel, shipbuilding, pharmaceutical, granary, coking, food, sewage treatment, environmental protection and other industries, users praise, to solve customer measurement problems.
Main feature
* Remote upgrade program, modify the calibration parameter function;
* Software and hardware simultaneous temperature compensation, dual-channel processing technology, innovative technology;
* Accurate measurement, stable, reliable, long service life, durable maintenance free;
* Industrial high definition low power OLED Chinese character display;
* Output 4-20 MA analog signal RS485 signal, real-time online measurement;
* Suitable for various working environments, not affected by temperature, pressure, density, dust, steam, viscosity and other factors;
* No mechanical sliding part, no stuck phenomenon occurs;
* Explosion-proof design, anti-lightning, strong anti-interference ability, can be used in flammable and explosive places;
* At present, the domestic technology is leading, intelligent, stable performance.
Main technical parameters
| Model Number | SY-HSY |
| measuring range | 0~100% and any calibration range |
| supply voltage | 24VDC（18~30V） |
| maximum load | 24VDC 500Ω |
| output mode | 4~20mA or RS485 |
| Average power consumption | ≤2W |
| measurement accuracy | ±0.1% |
| minimum resolution | 0.01 |
| pressure range |
0~5MPa |
| installation site | Indoor/outdoor (with rain cover) according to the site working conditions |
| operating temperature | -30~80℃ |
| medium temperature | -30℃～140℃(Higher temperatures need to be customized) |
| relative humidity | 30%～95% |
| sheating material | PTFE |
| erection joint | External straight pipe thread G2¼ or flange |
| status display | 64×128 OLED Chinese characters low power consumption |
| explosion-proof sign | Ex ia IIBT4 |
