Electric Winch European Design Bridge Crane A5 Boxed Type Workshop
- Qingdao port,China
- T/T L/C
- 65 days
You May Like
-
General Type Winch Trolley Double Girder Bridge Crane A6 Heavy Duty
-
Electric Slewing Jib Crane Cantilever 360 Degree Electric Traveling Chain Hoist
-
CD/MD Electric Hoist Traveling Wire Rope M3 ISO FEM International Standards
-
Electric Hoist Single Girder Bridge Crane A4 Boxed Beam for Workshop
-
European Design Electric Traveling Wire Rope Hoist M4 FEM ISO Certificates
-
European Design Electric Winch Double Girder Bridge Crane Eot M5 FEM
Product Details
| Brand Name | Kuangyuan | Place of Origin | China | |
| Model Number | KSQ | Certification | CE,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 18months | |
| Application | General industry | Condition | New | |
| Max. Lifting Load | 450t | Span | 18m | |
| Rated Lifting Moment | / | Rated Loading Capacity | 5~450t | |
| Max. Lifting Height | 10m |
Product Description
Product Description:

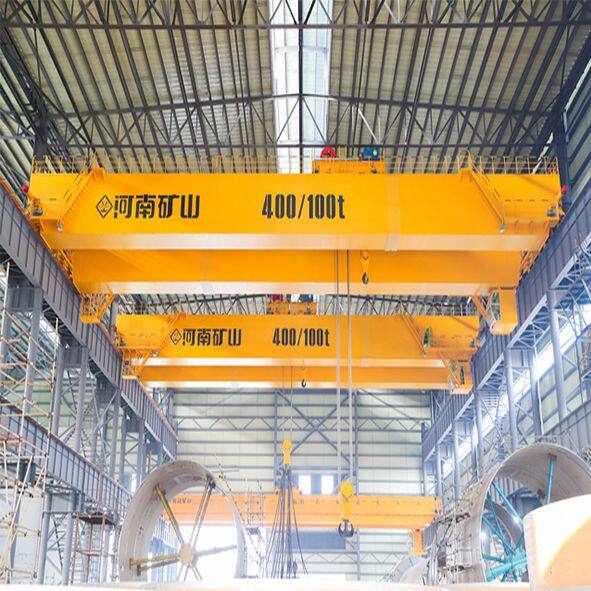

Euro design double girder winch bridge crane VFD speed control
The European design double girder overhead crane is a more widely used lifting machine, which is mainly composed of a box bridge, lifting electric winch trolley, trolley running mechanism and electrical control system. Generally,the pick-up device is the hook.
A track is laid above the main girder for the crane trolley to move laterally in the direction of the main girder. The main beam is welded to the box-shaped end beam, which is arranged with joints in the middle and bolted or pinned for the bridge to be split and transported.
The operation mode has three types of operation: pendant line button control, wireless remote control and driver's cab. There are two types of cabs, open and closed, with adjustable seats, insulated mats on the floor and toughened glass in the windows.
Also, The crane can be equipped with motor grabs, electromagnetic suction cups and other pick-up devices to meet the needs of lifting many types of materials.
The cranes are suitable for loading and unloading in factories, warehouses and yards where the ambient temperature is -20°C to 50°C and the relative humidity is not greater than 85%, and are not allowed to work in flammable, explosive or corrosive atmospheres.
Product specification:
| Capacity: 5,10,16/3.2,20/5,32/5,50/10T, up to 450/80T |
| Span: 10.5-31.5 m or more |
| Lifting height: 6-30 m or more |
| Lifting speed: 0.9-15 m/min or more |
| Cross traveling: 5~45 m/min or more |
| Long traveling: 20~92 m/min or more |
| Widely used in: Factories, warehouses, etc. |
