Product Description:

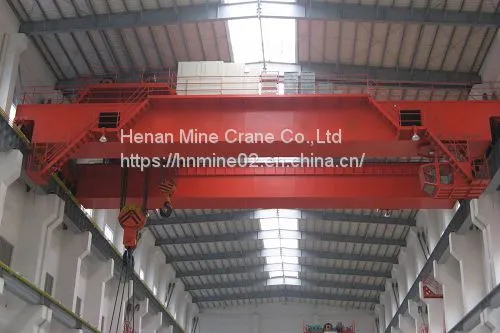

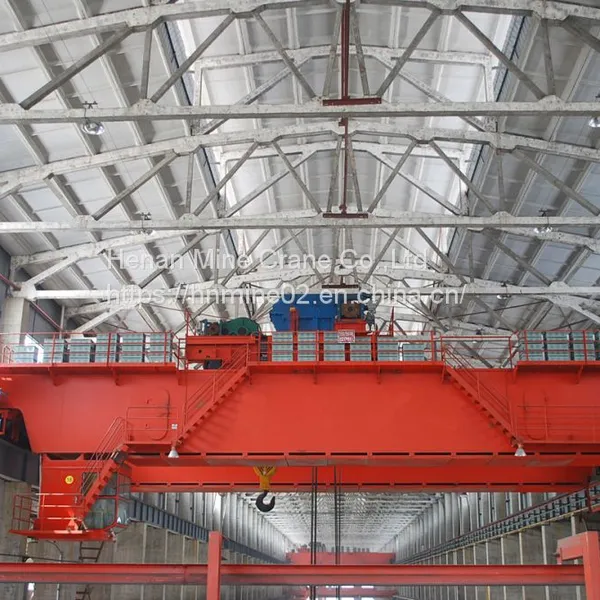

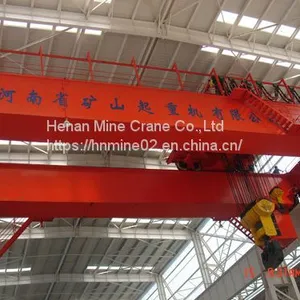

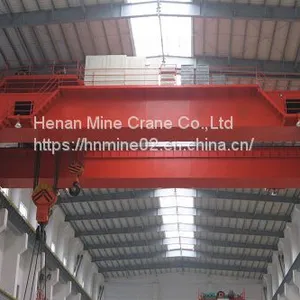

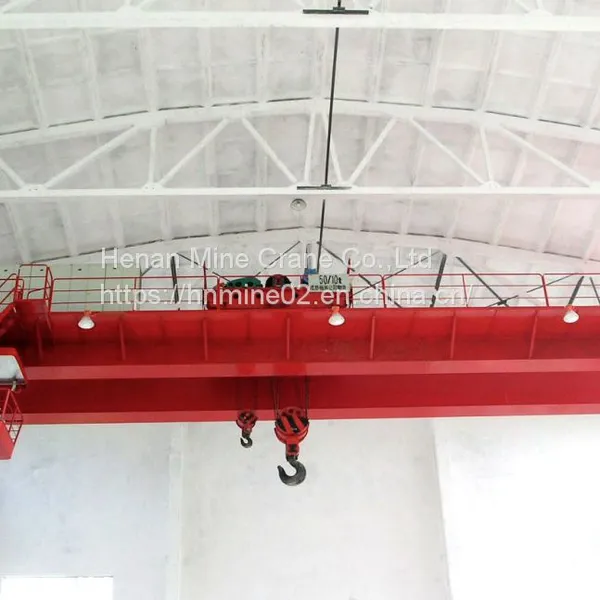

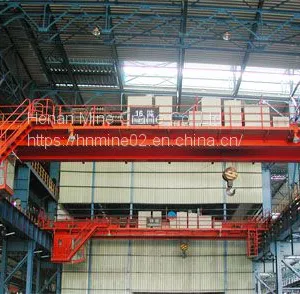

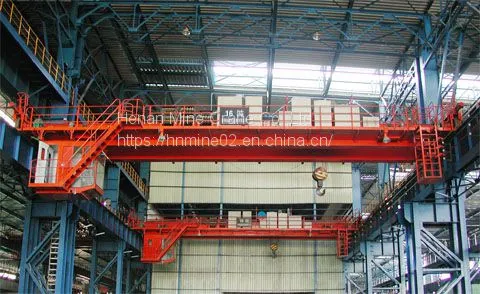

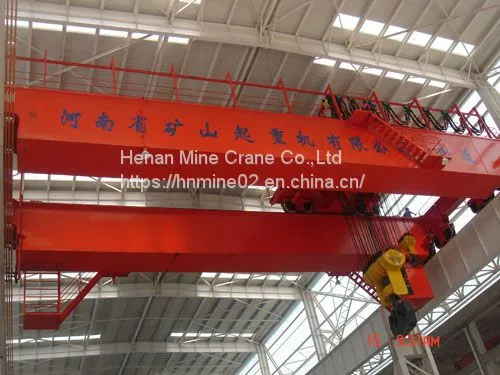

Double girder Hook overhead crane
Hook bridge crane is a general bridge crane which is widely used in the lifting machinery.Its lifting capacity is from 5tons to 450/80tons,and its working duty is A1~A8 according to the frequency of usage.It is suitable for loading, unloading and hoisting work in factories, warehouses and freight yards where the ambient temperature is -20ºC~40ºC and the relative humidity is not more than 85%. It is forbidden to work in the environment of flammable, explosive and corrosive gas.
Product configuration:
QD type hook crane is mainly composed of a box-shaped bridge,a trolley traveling mechanism, a crane traveling mechanism and an electrical control system. The lifting mechanism is a hook.
Track is laid on the main beam for the trolley to move laterally along the direction of the main beam. The main girder is welded with the box-shaped end girder, and the end girder is arranged with joints, bolts or pin connections for the crane to be disassembled and transported.
The control method has three ways mainly: pendant line button control, wireless remote control and aerial cabin control, generally standard way is cabin control.
There are two types of cabin : open and closed, with adjustable seats, insulating pads on the bottom plate, and tempered glass for window glass. Air conditioners, sounders, walkie-talkies and other items can be configured according to users' requirements.
Product specification:
| Item | 125/32 | 160/50 | 200/50 | 250/50 | 300/40 | 350/75 | ||
| lifting capacity(t) | main hook | A5 | 125 | 160 | 200 | 250 | 300 | |
| A6 | 125 | 200 | 350 | |||||
| aux.hook | A5 | 32 | 50 | 50 | 50 | 40 | ||
| A6 | 32 | 50 | 75 | |||||
| span(m) | 13~31 | 17 | 22 | |||||
| lifting height(m) | main hook | A5 | 20 | 30 | 22 | 28 | 24 | |
| A6 | 20 | 32 | 25 | |||||
| aux.hook | A5 | 22 | 32 | 26 | 32 | 32 | ||
| A6 | 22 | 32 | 40 | |||||
| working duty | A5,A6 | A5 | A5,A6 | A5 | A5 | A6 | ||
| lifting speed(m/min) | main hook | A5 | 4.4 | 3.7 | 2.8 | 2.3 | 0.84 | |
| A6 | 4.4 | 3.1 | 1 | |||||
| aux.hook | A5 | 9.4 | 9.8 | 9.8 | 9.8 | 5.8 | ||
| A6 | 9.4 | 9.8 | 5.22 | |||||
| traveling speed(m/min) | trolley | A5 | 41.4 | 28 | 28 | 28 | 8.1 | |
| A6 | 41.4 | 28 | 5.8 | |||||
| crane | A5 | 78,68 | 68,66 | 66,58 | 43 | 17.7 | ||
| A6 | 78,68 | 58,43 | 22 | |||||
| steel track recommended | QU100 | QU120 | ||||||
| power supply | 380V 50Hz 3-Ph,AC | |||||||
| lifting capacity(t) | main hook | 400 | 450 |
| aux.hook | 80 | 80 | |
| span(m) | 21 | 20.8 | |
| lifting height(m) | main hook | 25 | 25 |
| aux.hook | 30 | 33 | |
| working duty | A1-A3 | ||
| speed(m/min) | main lifting | 1.165 | 0.895 |
| aux lifting | 4.78 | 4.84 | |
| trolley traveling | 5 | 5.1 | |
| crane traveling | 30 | 20 | |
| steel track recommended | QU120 | ||
| power supply | 380V 50Hz 3-Ph,AC | ||
