Vacuum Hydraulic Oil Dehumidifier/Waste Oil Purification Machine

The capability this hydraulic oil recycling machine is removing contamination down less than 1-3 micron, dehydration, demulsification by physical reaction, and change the color by adding chemical silica gel,the recycled oil can be reused as the lubricant oil again after treatment.

The hydraulic oil recycling machine can recycle waste Lubrication oil, gear oil, high viscosity oil, diesel oil, hydraulic oil turbine oil and refrigerant oil.

this machine utilizes a physiochemical reaction to eliminate the acidic component, absorb the sulfur content and the tiny impurities for changing the color to light yellow or limpid.

Specifications:

The machine contain following main parts:

◆Vacuum Dehydration (Degas) System

1 The vacuum vessel can increase evaporation area efficiently. The heater, being placed on the vacuum vessel, becomes an evaporator. Thus the evaporation area of vacuum vessel is three times more than that of the general vacuum vessel.

2 The optimal structure of the dehydration (degas) system enlarges the surface area of oil exposed to the vacuum system and extends the flowing distance of the oil in the vacuum system.

◆Electrical Apparatus Controlling System

1 The main components of the electrical apparatus made by Schneider or Siemens

2 Having several protection systems which will avoid oil ejection, overload and over voltage etc.

◆Filter Elements(particulate matter removal)

1, Stainless steel filters can remove 99.5% particles.The sizes of the filter elements and aperture dwindle gradually in the different filtering stages. The impurities with different particulate sizes are filtered step by step. The capability of removing particulate matters and impurities is improved greatly by this method.

2, The filtering system has stable and prefect filtering fineness. The filtering fineness has several grades, including 1, 2, 3, 5, 6, 10, 20 micron etc.

◆Electric heater

Oil Heater System assures less than 1.0w/cm2. the temperature rang is 40C to 80C. The heater is controlled automatically. The heater will stop automatically when the oil temperature reaches 80 degree, and it will begin to heat when the temperature is lower than 40degree. Being installed with safety protection devices, the heating system is secure and reliable. The heater will stop operation automatically when the oil volume of inlet is too low to avoid the damages of the heater.

◆Infrared Oil-level Controlling System

1, The oil-level floating ball or infrared liquid level automatic controller system are installed in the vacuum vessel to control the oil level so as to avoid the oil being suctioned into vacuum pump in the operation.

2, When oil quantity is lower than the level of the float ball, then the oil pump will start-up automatically and pump oil into the vacuum vessel, when oil is up to the floating ball level, pump will stop automatically

◆Vacuum Pump

Rotary Vane Vacuum Pumps, is a basic equipment used for pumping air from sealed vessels to attain vacuum condition.

Our Service:

1) Professional manufacturers and leaders in this field.

2) More than 20years oil recycling machine trading experience.

3) Engineers with over 30 years oil refining experiences.

4) QC department.

5) Product safety and pollution free are our priorities.

6) Keep developing machines all the time.

7) 24hours on-line service.

8) SO, CE, BV and national patents.

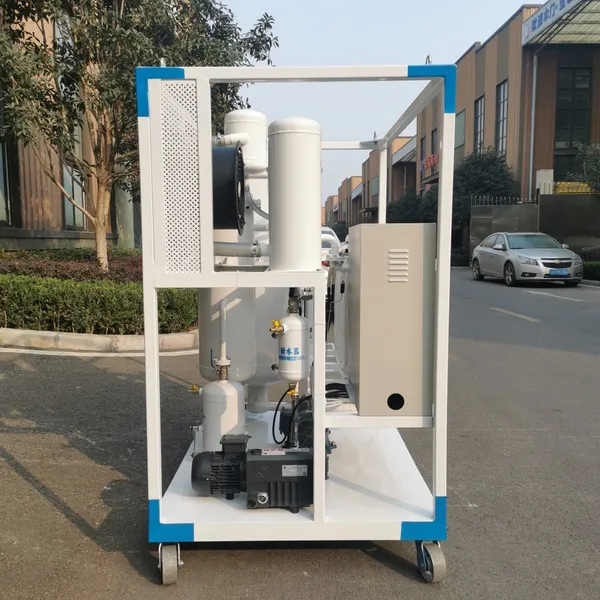

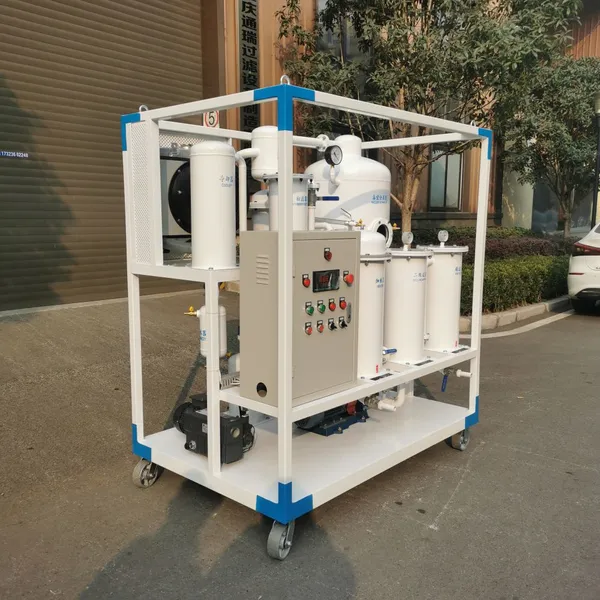

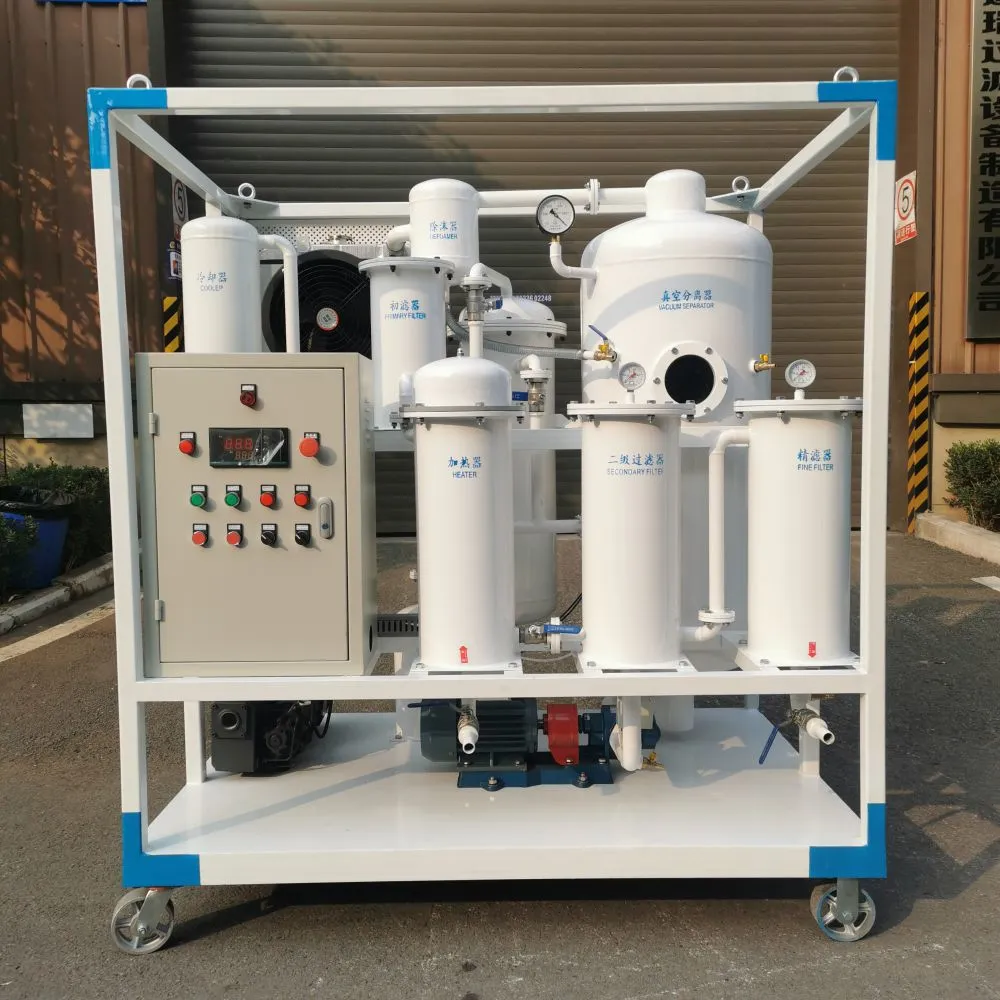

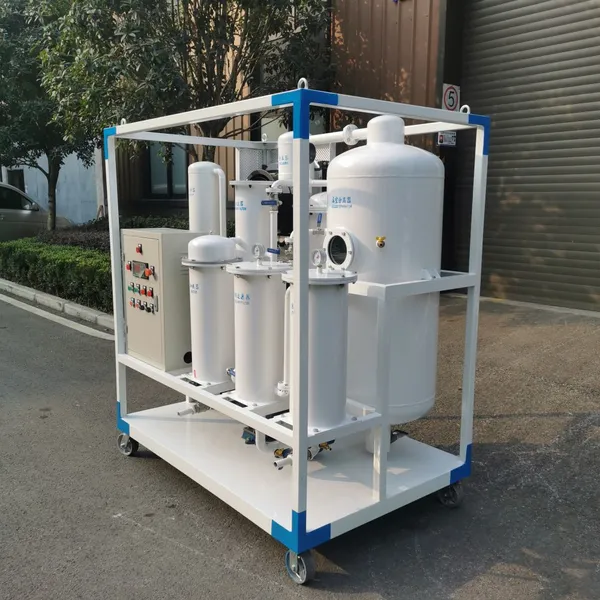

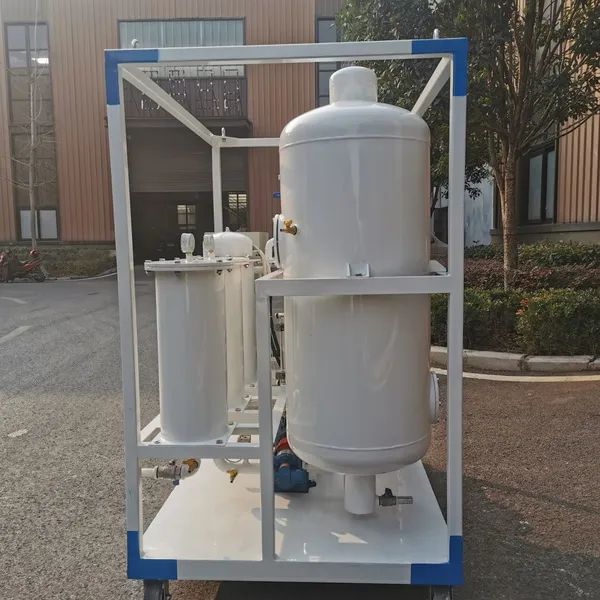

Hydraulic oil recycling machine pictures:
