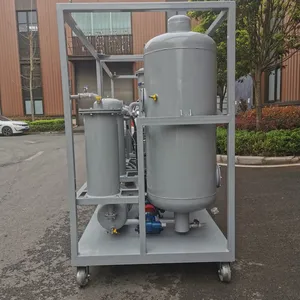

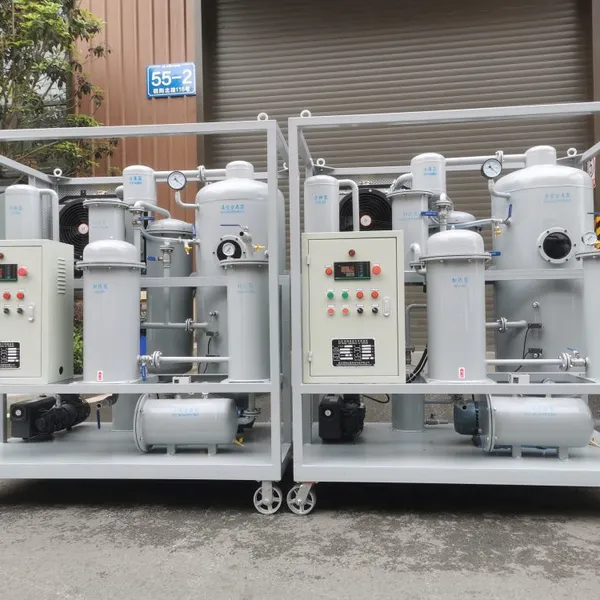

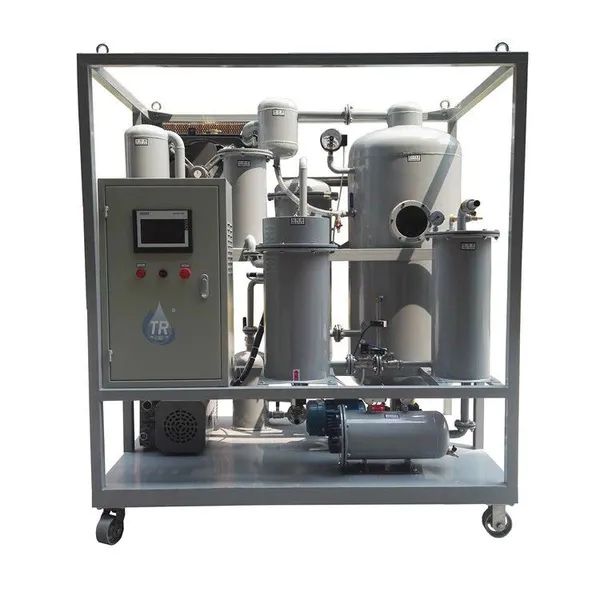

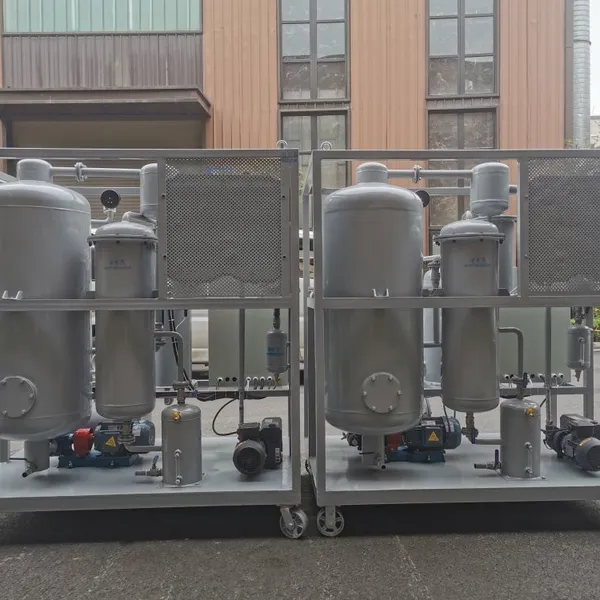

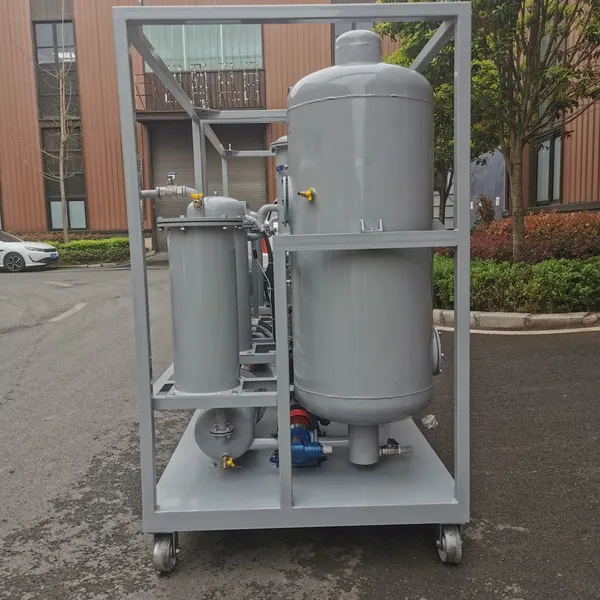

Machine Oil Purifier Lubricant Oil Recycling Equipment

Usage scope

Machine oil purifier is used to process and regenerate unqualified hydraulic oil, lubricating oil, refrigeration oil, anti-wear hydraulic oil, heat transfer oil, quenching oil, cleaning oil, anti-rust oil and other high-precision oil products (phosphate ester fire-resistant oil is made of stainless steel) .

Product advantages

1. Using domestic or imported multi-layer stainless steel mesh filtration and composite polymer adsorption, the deep-level, high-precision FH double-rectangular filtration system is used, which has super dirt holding capacity and high filtration accuracy.

2. The use of strong magnetic filter material can effectively remove metal impurities such as iron filings.

3. Use domestic or imported H, P, M polymer materials to completely break demulsification.

4. The combination of coalescence separation and vacuum compound three-dimensional three-dimensional flash evaporation makes dehydration and degassing faster and more thorough.

5. The world's leading multi-U-type gradually densified carbon cellulose far-infrared heater, efficient and uniform heating, energy saving and consumption reduction.

6. Pure physical filtering will never harm the essence of oil and various additives.

7. The strong wind cooling technology makes the water and steam rapidly condense and precipitate to protect the vacuum pump.

8. The infrared liquid level controller is used to automatically control the oil in and out of the equipment to ensure the balance of oil in and out.

Oil sample

Technical Parameter

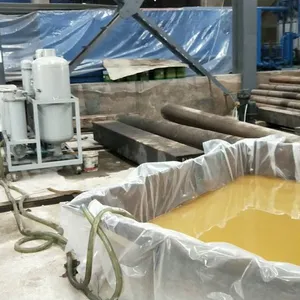

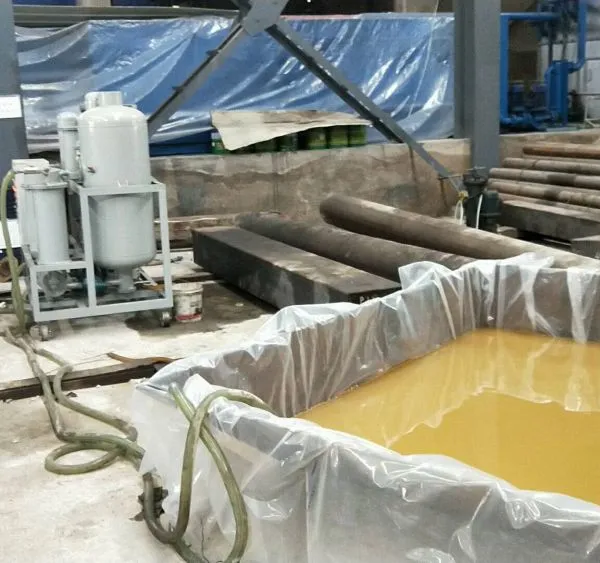

Working site

Instructions for use

Machine oil purifier is equipped with a pressure protector, usually set at 0.4MPA. When the filter pressure reaches 0.4MPA, the equipment will brake and stop to protect the safe operation of the equipment. The filter screen of the primary filter should be removed and cleaned frequently to keep it clean to avoid blockage and cause insufficient oil intake or high pressure. When it is found that the oil intake of the oil filter becomes small, it means that the impurities in the filter screen of the primary filter have increased, and it needs to be cleaned immediately. During operation, pay attention to whether the operating noise of the pump and the corresponding motor is normal. If any abnormality is found, it should be eliminated immediately to avoid burning the motor or affecting the life of the oil pump. When the machine is not in use, drain the vacuum pump oil and inject new oil.
