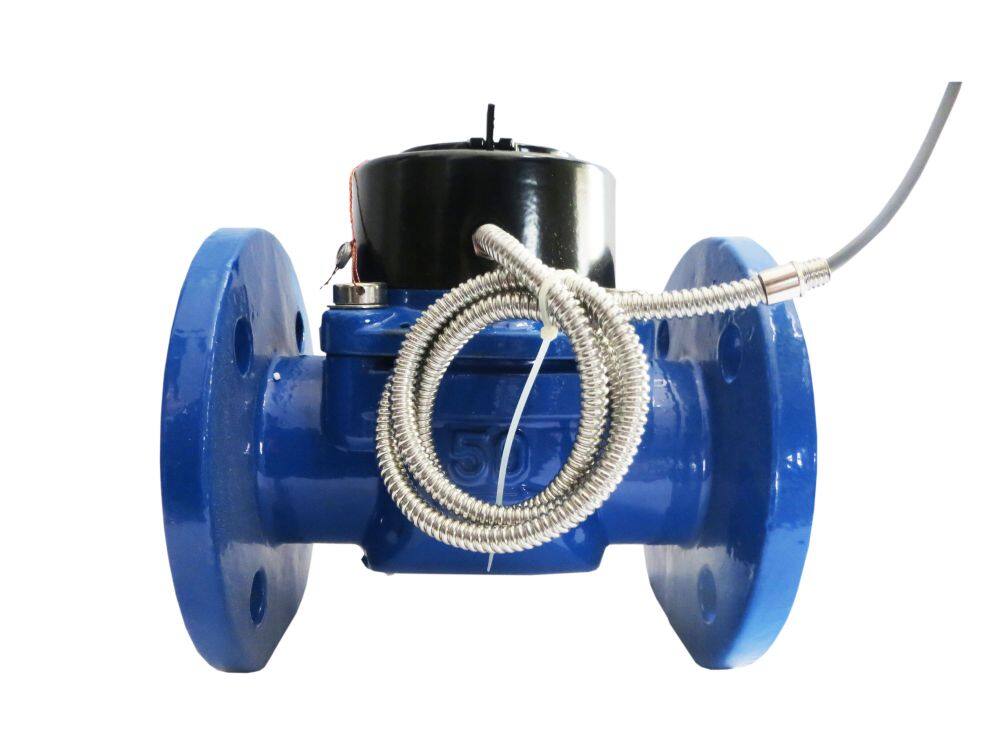

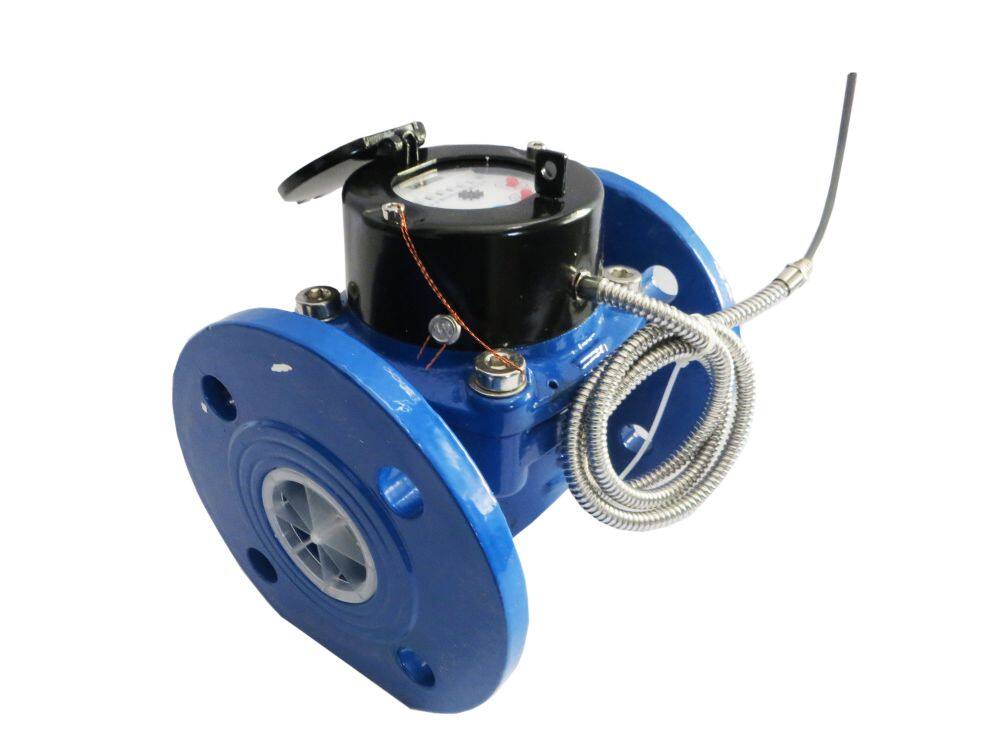

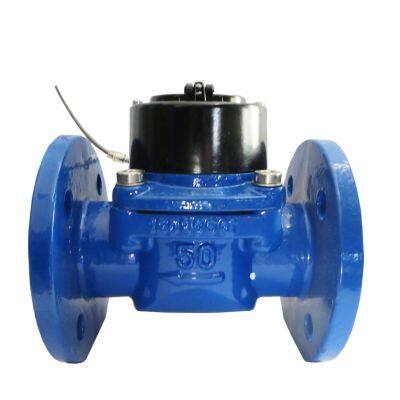

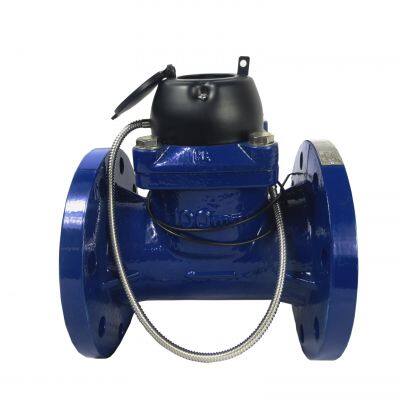

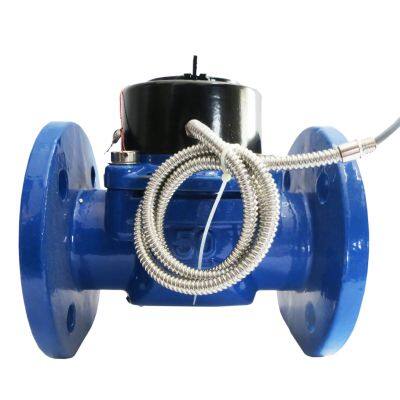

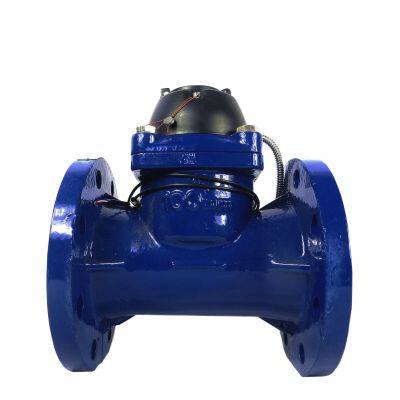

remote water meter

1.Product overview

Vortex flow meter is desianed based on the principle of Carmen vortex principle and electromagnetic induction principle. The meter has the advantages of simple structure, wide measuring range and good anti-vibration performance with micro power consumption and easy installation and maintenance. Products are widely used for flow measurement in petroleum, chemical, metallurgy, environmental protection and urban water supply and drainage industries.

2.Main technical parameters

Nominal diameter(mm):DN15~DN300

Nominal pressure(MPa):1.1.6,2.5,4,16,25,32,35.45

Accuracy level: 2.0

Functional characteristics

 body adopts the integrated design, which can record and save the user's water consumption in real time, or directly read the current cumulative count;

 can monitor the running situation of water meter in real time, complete the transcription and storage of water meter data;

 water meter data can be transmitted remotely, and the smart meter head has nonlinear correction function and data storage and query function;

 Signal output: pulse signal, RS485, Modbus protocol, RS232, 4-20mA analog signal and other signals are optional.

 Water meter has the features of wide flow range, strong anti-interference ability, sand prevention, scale prevention, high temperature resistance, corrosion resistance, low power consumption, on-site display and remote transmission.
