Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 10kw Three Phase 380V Air-cooled Silent Diesel Generator 292F Diesel Engine

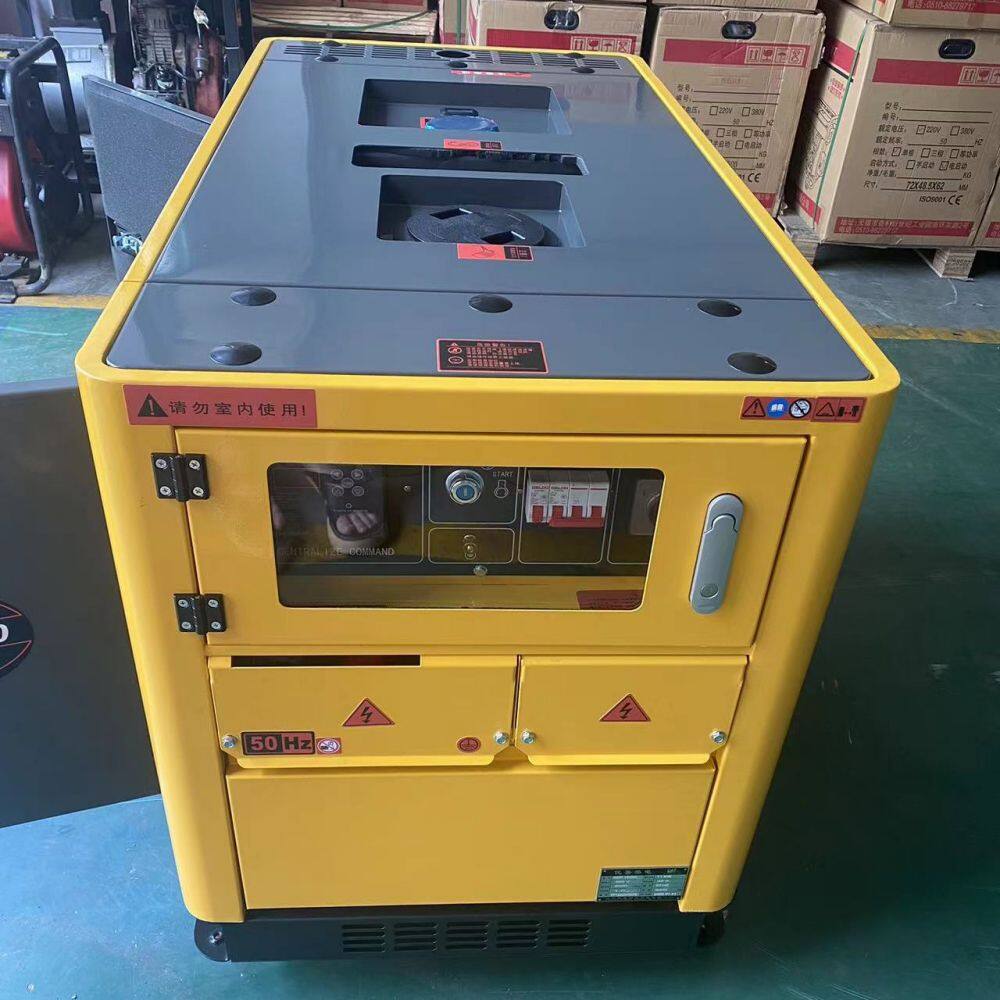

10kw Three Phase 380V Air-cooled Silent Diesel Generator 292F Diesel Engine
US$ 1850 - 1950
MOQ: 20 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
20 days
Related Products
-
10kw Dual Power Air-cooled Silent Diesel Generator 292F Diesel EngineUS$ 1900 - 2000MOQ: 20 Sets -
2.8kw Single Phase 220V Air-cooled Silent Diesel Generator 178Fdiesel EngineUS$ 430 - 450MOQ: 20 Sets
-
4.5kw Single Phase 220V Air-cooled Silent Diesel Generator 186Fdiesel EngineUS$ 500 - 550MOQ: 20 Sets
-
4.5kw Three Phase 380V Air-cooled Silent Diesel Generator 186F Diesel EngineUS$ 510 - 560MOQ: 20 Sets
-
4.5kw Dual Power Air-cooled Silent Diesel Generator 5kw Dual Voltage Low Noise Diesel GeneratorUS$ 530 - 580MOQ: 20 Sets
| Model | DG15000SE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 10.5 11 |
| Max. Power(KW) | 11.5 12 |
| Rated Output Current（A ) | 15 15.8 |
| DC Output | 12V 8.3A |
| Phase | Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 26 |
| Engine Model | 292FE |
| Start Method | Electric start |
| Engine Type | 2 cylinders、Vertical、4 stroke、Air-cooled |
| Bore*Strokke[mm] | 2-92*75 |
| Displacement | 0.997 |
| Compression Ratio | 19:1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 14.1 15.0 |
| Oil Capacity[L] | 2.75 |
| Fuel Consumption[g/kwh] | ≤290 ≤297 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 1250*650*760 |
| Packing Size [mm] (L*W*H) | 1300*700*880 |
| Net Weight/Gross Weight[Kg] | 300/320 |
