Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Jack > TGD-200 Twin Ram Air Hydraulic Pit Jack
US$ 2200 - 2800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Truck-O-Liner
Place of Origin:
China
Model Number:
TGD-200
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
15 days
Related Products
Brand Name
Truck-O-Liner
Place of Origin
China
Model Number
TGD-200
Type
Hydraulic Jack
Certification
CE
Min Height
576mm
Max Height
996mm
Capacity (Load)
21-30T

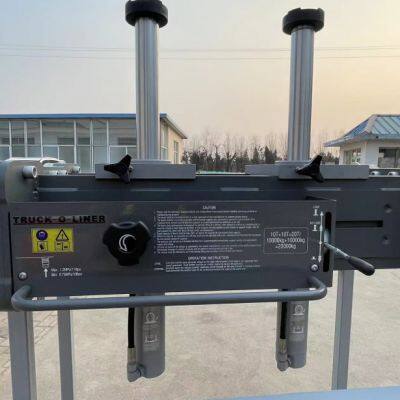

TGD-200 pit jack is twin ram air hydraulic pit jack that is designed and manufactured by Doocar Liner. The hydraulic pit jack features:
1.Standard air hydraulic twin ram pit jack.
2.Two independently controlled cylinder heads allow for safe and balanced lifting.
3.Speed reduction valve
4.Precision air hydraulic components (with fast-moving cylinders).
5.Lateral movement cylinder head
6.The height of jack is adjustable according to actual demand.
7.The rack can be adjusted to meet all lift.
8. The pit jack has wide applicability and can be used for lifting beams, gearbox bases, supporting bridges, etc.
Equipped with two 100MM height increasing pads.

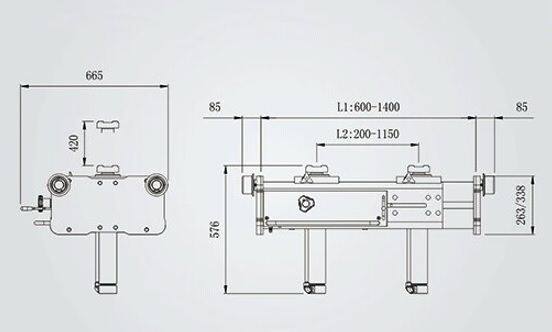

Specifications
| capacity | air pressure | stroke | min height | max height | width L1 | lifting L2 | depth | L1 option | L2 option |
| 20 T | 0.75-1.2Mpa | 420mm | 576 | 996mm | 600-1400mm | 200-1150mm | 665mm | 600-800 840-1140 1100-1400 | 200-630 200-890 200-1150 |
