Doocar D5000 Floor Puller Frame Straightening System

DOOCAR D5000 floor puller is a floor-based auto body collision repair system that offers affordability and space efficiency, making it perfect for auto body shops where space can't be permanently dedicated to a conventional car bench system. It also provides additional pulling capability to your body shop when required.

Features:

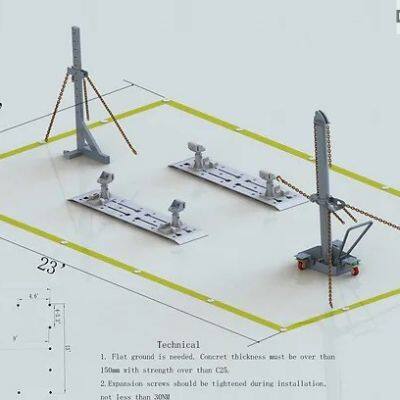

1. Floor pot pulling system, the  dimension is 5000x7000MM working space, easy and fast installation.

2. 35CrMo alloy steel floor anchor pot, high strength, durable and easy to install.

3. Lengthened and widened high-strength alloy steel main clamp fixing plate, quick and convenient installation; high strength, can quickly tighten the main clamp.

4. Classic French CELLETE main clamp, 35CrMo alloy steel jaws, strong clamping force, good wear resistance and long life. Can be positioned, locked, supported, and the height can be quickly adjusted.

5. Q345 alloy steel pull tower, classic platform equipment pull tower, can straighten and repair vehicles at any angle.

6. The pulling tower is equipped with a 10-ton hydraulic working cylinder and a 10-ton high-pressure hydraulic pump, which is powerful, safe and reliable, and efficient in collision repair.

7. Equipped with heavy-duty mobile universal wheels and patented compression spring design mechanism, the tower post is flexible to move and works firmly and reliably.

8. The pulling tower is equipped with a 5-meter high-strength G80-grade straightening chain, which is convenient for straightening and has a wide range of uses.

9. It is equipped with a full range of 35CrMo alloy steel straightening fixtures, which meet the standards of car bench equipment and can meet the collision repair of different accident vehicles.

10. It can be equipped with an accurate and easy-to-operate measuring tram gauge, equipped with data of various car models.

11. The floor pot pulling system has high working efficiency, which can effectively reduce the invalid time of vehicles getting on and off the bench and fixed, and increase the effective working time. It occupies less space, the site can be flexibly applied, and there is no need for a large space occupied by bench equipment.

12. This floor pulling system is highly practical. Cars, minibuses, light trucks, regardless of the size of the accident, can quickly repair different damaged parts. Reduce operating costs and increase space and equipment utilization.

13. The floor straightening system will be an ideal choice for those repair shops that do not have space for a universal frame racks or collision repair benches.
