High Speed Washer for Paper Making Machine
- Qingdao Port
- T/T
- 7 days
You May Like
-
Hydro Pulper Machine Hydrapulper Machine for Paper Mill
-
MBR Membrane Bioreactor for Wastewater Treatment Plant
-
MBR Membrane Bioreactor for Wastewater Treatment Plant
-
Paper Mill High Consistency Pressure Screen for Paper Pulp
-
Pulp Refiner Machine High Consistency Refiner for Paper Mill
-
Paper Pulp Making Machinery Double Disc Refiner
Product Details
Warranty | 1 Year |
Product Description

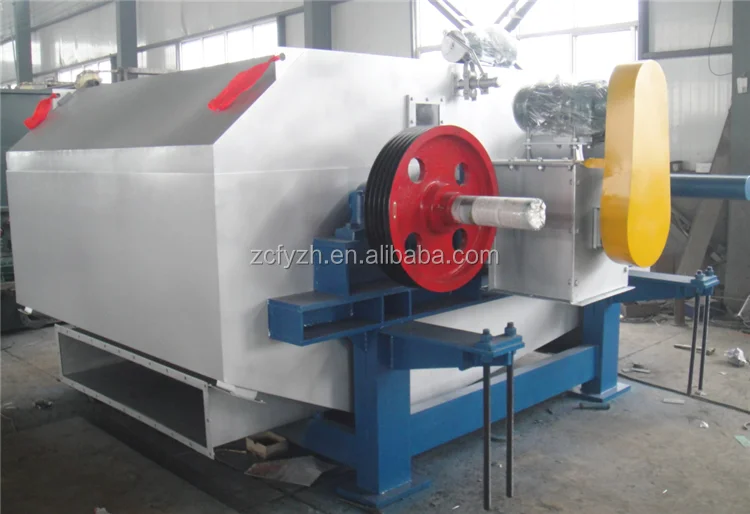

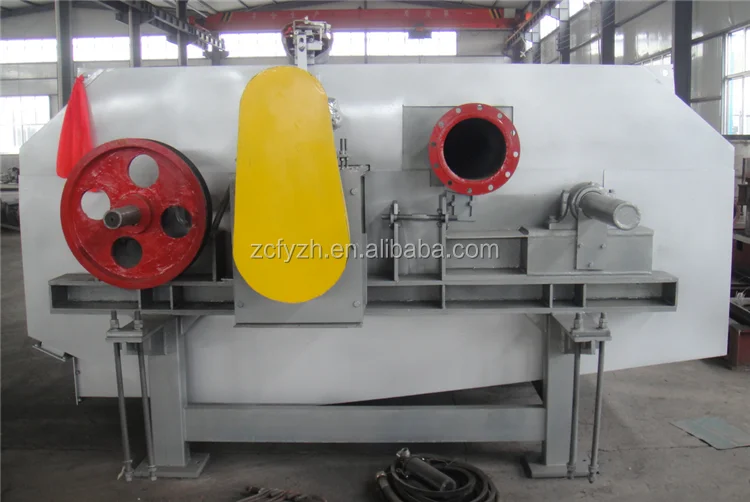

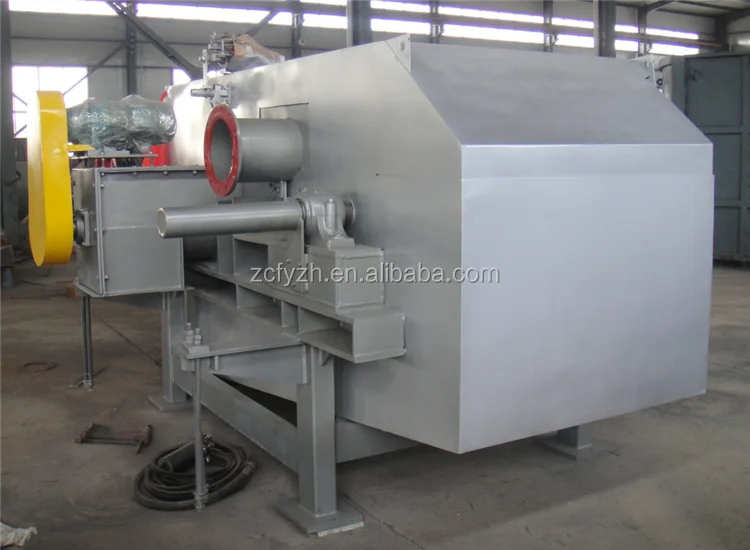

FGX high speed pulp washing machine is a new generation of washing and concentrating equipment. It can not only wash, but also concentrate, high efficiency of impurity removal and dehydration effect, obvious water-saving effect, especially suitable for waste paper deinking pulp and concentration.
The equipment has high deinking efficiency for small impurities such as ink ions and filler, etc. It can be widely applied to the washing and concentration of recycled pulp for waste newsprint, waste books and periodicals.
Model | FGX-1 | FGX-2 | FGX-3 | FGX-4 | FGX-5 | FGX-6 | FGX-7 |
Concentration of inflow pulp(%) | 0.8-1.2 | ||||||
Concentration of output pulp(%) | 10-12 | ||||||
Production capacity(T/D) | 20-30 | 40-60 | 60-90 | 80-120 | 100-150 | 150-200 | 180-250 |
Width of filter screen(mm) | 547 | 1067 | 1499 | 1930 | 2500 | 3000 | 3500 |
Power of motor(KW) | 7.5 | 11 | 15 | 22 | 30 | 37 | 45 |
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, such as The FGX high speed pulp washing machine, sewage treatment equipment, with high technical content, it has reached the domestic advanced level in the same industry.
Fangyuan Zhonghe adhere to the business purpose and policy of "custom is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The FGX high speed pulp washing machine we manufactured were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for 20 years' experience
Q2. How to proceed an order for the FGX high speed pulp washing machine from factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
Q4. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be finished before the guarantee date.
Q5: Do you offer guarantee for the FGX high speed pulp washing machine?
A: Yes, under the right condition , we offer different time warranty for our products.
Q6. How to pack the FGX high speed pulp washing machine?
A: Standard oversea packages or according to customer's requirement will be used.
If you have special package requirements, we will pack as required, but the fees will be paid by customers.
Q7. How to install after the FGX high speed pulp washing machine arriving destination?
A: We will provide detailed drawings to you. If it is necessary, we will send technical engineers to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
