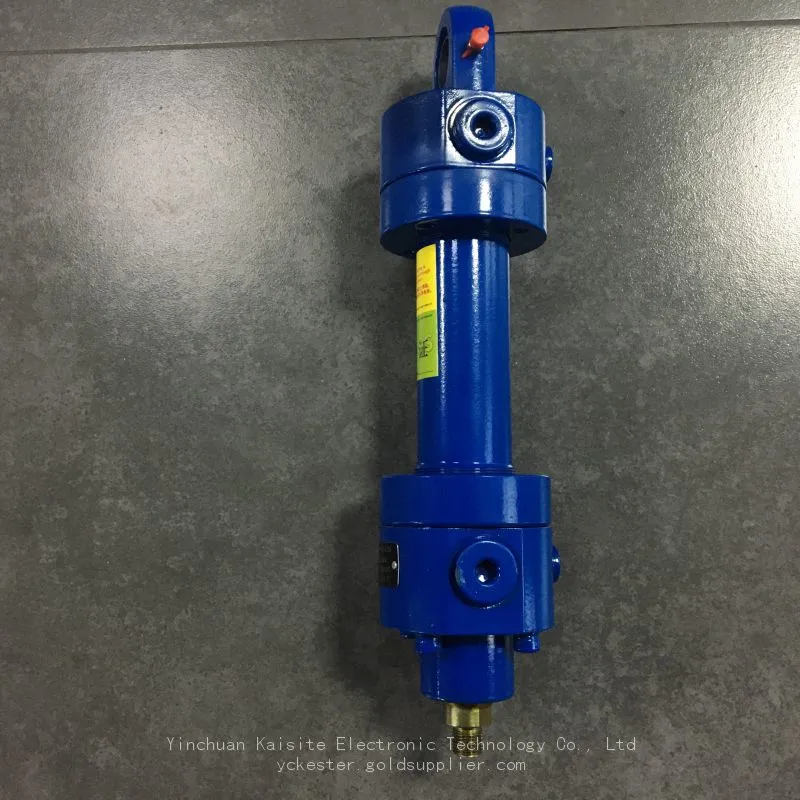

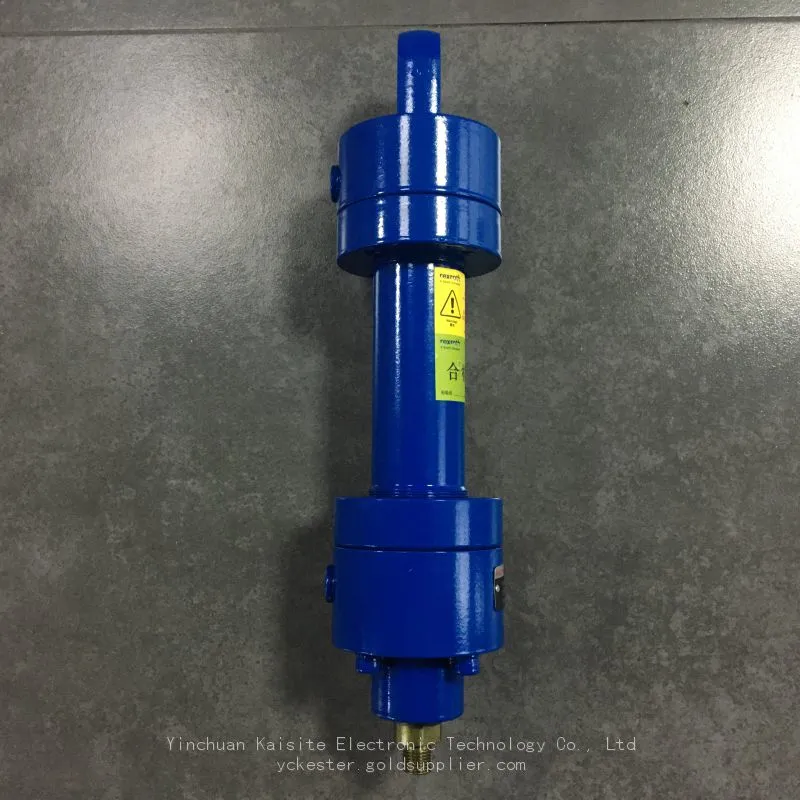

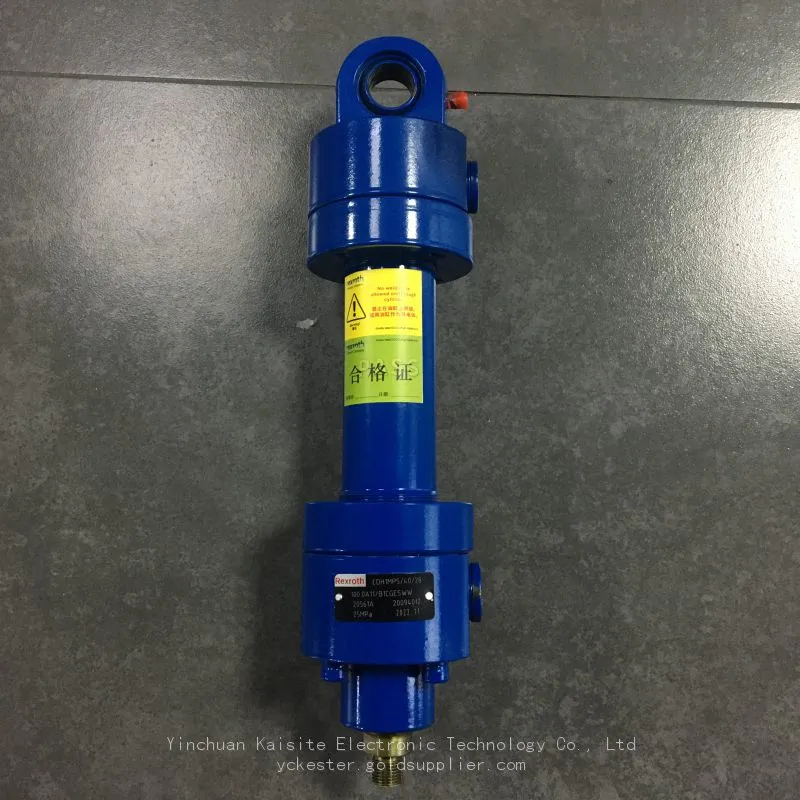

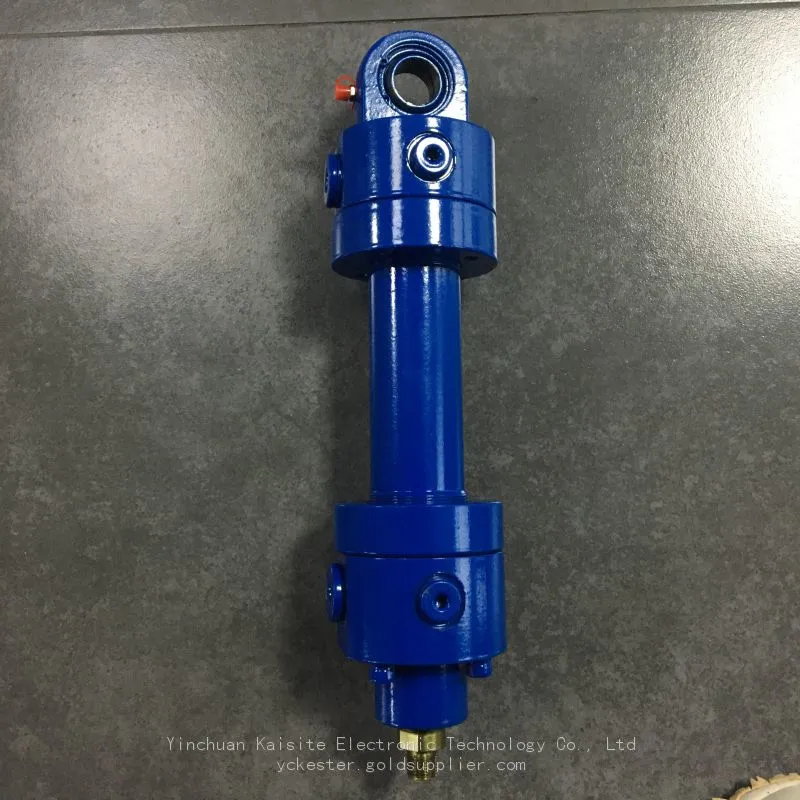

Rexroth Long-Life Design High-Performance High Efficiency Oil Cylinder

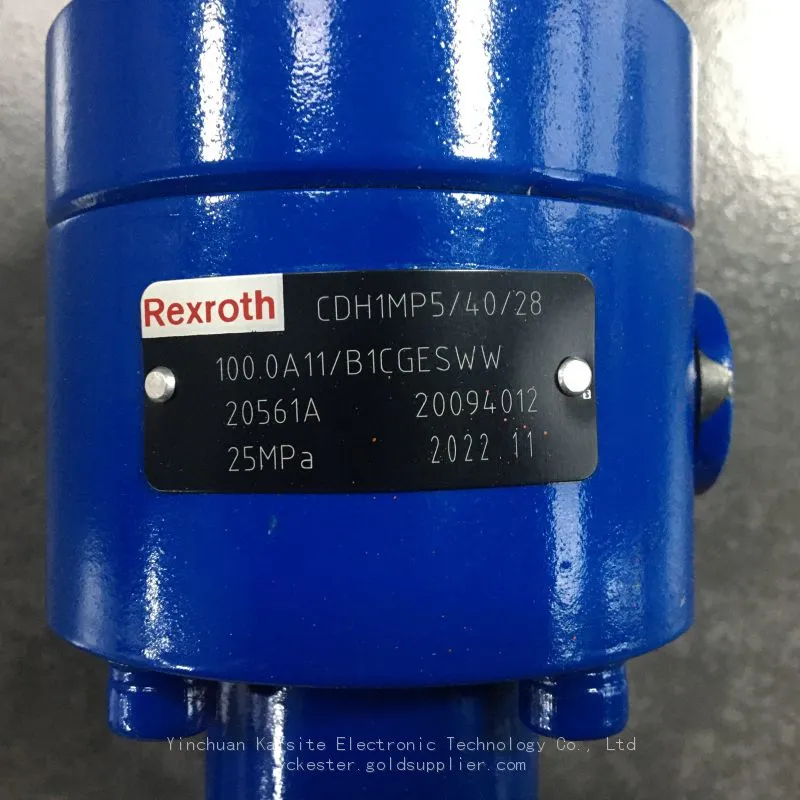

CDH1MP54028100.0A11BICGESWW
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
Brand |
Rexroth |
Model |
CDH1MP54028100.0A11BICGESWW |
Color |
Blue |
Place Of Origin |
Germany |
Material |
Cast Iron |
Power Source |
Electric |
Advantages
Standardized Interchangeable DesignComplies with ISO 6020/2, DIN 24554, and NF/ISO 6020/2 standards, offering versatile installation dimensions for easy system design and maintenance.
Convenient Installation And MaintenanceThe rear flange (MP5) mounting structure with integrated guide sleeve allows for quick and simple on-site maintenance; the piping connection positions at the cylinder head and bottom are freely selectable for easy assembly.
High-Performance Sealing System
The model suffix "A11BICGESWW" indicates a special sealing configuration suitable for various media and operating conditions, ensuring high sealing reliability.
Optional Buffering DeviceSupports self-adjusting or adjustable end-position buffering to reduce impact and extend the life of the hydraulic cylinder and system.
Wide Operating ParametersRated pressure 70 bar, maximum operating pressure up to 105 bar (depending on plunger diameter and mounting type), operating temperature range -20°C to +80°C, offering strong adaptability.
Long-life designUnder rated operating conditions, the service life can reach ≥10,000,000 double-stroke cycles or 3,000 km piston stroke, with a failure rate of less than 5%.
Application Areas
Industrial Manufacturing
Suitable for various automated production lines, presses, forming machines, and other equipment requiring precise linear drive.
Metallurgical Machinery
Used in high-load, high-impact conditions such as rolling mill equipment and forging machinery.
Heavy EquipmentSuitable for continuous high-intensity operation scenarios such as mining machinery, port machinery, and construction machinery, bearing heavy loads and harsh environments.
Machine Tool Industry
Clamping, positioning, and feeding actuators for CNC machine tools.
Marine And OffshoreHydraulic systems for offshore platform lifting devices and ship steering gears that meet corrosion resistance and reliability requirements.
