IEC 60068-2-75 IK08 5J Spring Impact Hammer
US$ 200 - 5000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Pego
Place of Origin:
China
Model Number:
IK-SH08
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days
Related Products
-
IEC 60598-1 and IEC 60950-1 Impact Test Device With a Steel BallUS$ 2000 - 6000MOQ: 1 Set -
IEC 60068-2-75 Spring Hammer Calibration DeviceUS$ 2000 - 5000MOQ: 1 Set
-
IEC 60068-2-75 Annex B.3 Figure B.5 Spring Hammer Calibration Device CalibratorUS$ 3000 - 10000MOQ: 1 Set
-
IEC60598-1 Diameter of 50mm Steel Impact BallUS$ 80 - 200MOQ: 1 Piece
-
IEC 60529 IPX1 IPX2 IPX3 IPX4 Comprehensive IP Waterproof Test Chamber for House-hold ApplianceUS$ 5000 - 15000MOQ: 1 Set
Brand Name
Pego
Place of Origin
China
Model Number
IK-SH08
Usage
Impact Testing Machine

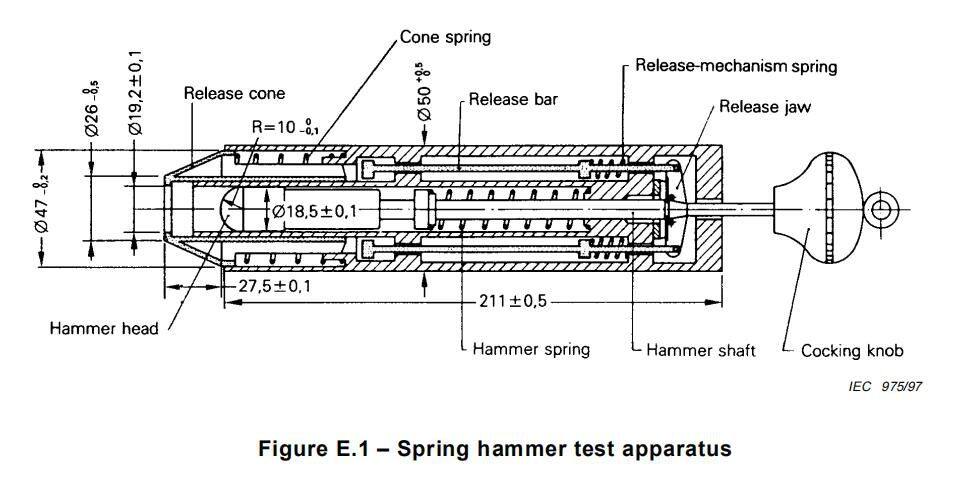

IEC 60068-2-75 IK08 5J Spring Impact Hammer
1. Introduction:
IK ratings are defined as IKXX, XX is a number from 00 to 10 which indicates the degrees of protection provided by enclosures against external mechanical impacts. The different IK rating relate to the ability of an enclosure to resist impact energy levels measured in joules (J). The spring impact hammer is designed according to IEC60068-2-75 Ehb, and can applicate to IEC60598, IEC60068-2-75 and etc.
Degrees of protection against external mechanical impacts
IK01 |
IK02 |
IK03 |
IK04 |
IK05 |
IK06 |
IK07 |
IK08 |
IK09 |
IK10 |
0.14J |
0.2J |
0.35J |
0.5J |
0.7J |
1J |
2J |
5J |
10J |
20J |
2. Parameters
Model |
IK07 |
IK08 |
Impact Energy |
2.00±0.05J |
5.00±0.25J |
Tolerance |
±5% |
±5% |
Equivalent mass |
500g±5g |
1.7kg±2% |
Trigger force |
||
Total mass |
1500g±10g |
