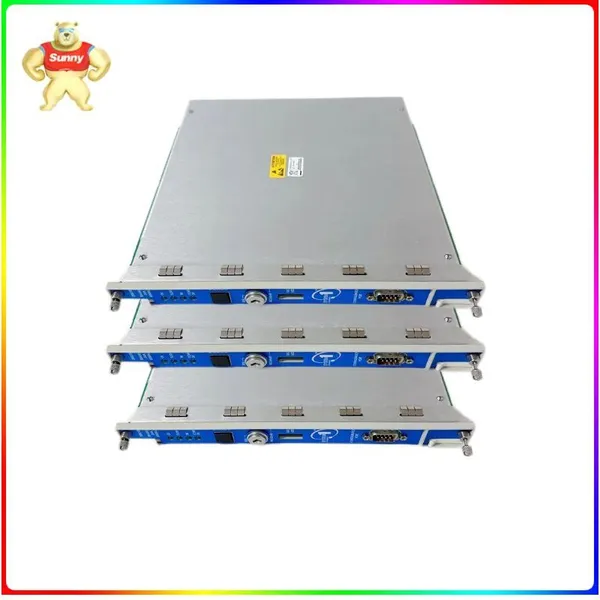

3500/22M 288055-01 Interface module Rear card: 3500/22M 146031-01
3500/22M 288055-01 Transient Data Interface Module Technical Manual
3500/22M 288055-01 is a high-performance transient data interface module launched by Bently Nevada, a subsidiary of GE. As the core component of the 3500 series vibration monitoring system, it is mainly used for condition monitoring and data transmission of rotating machinery. This module integrates rack interfaces with high-speed data acquisition functions and is widely used in critical equipment protection scenarios in industries such as power and petrochemicals.
Core information of the product
Basic positioning and functional architecture
This module serves as the "data hub" of the 3500 monitoring system and undertakes three core functions:
Data acquisition and integration: Synchronously collect 22 channels of analog and digital signals, support multiple types of parameters such as vibration, shaft displacement, and temperature, and be compatible with incremental encoders, thermocouples (E/J/K/T types), and RTD sensors.
Protocol conversion and transmission: High-speed data upload is achieved through 100Base-FX Ethernet (or 10Base-T/100Base-TX adaptive interface), and it also supports protocols such as Modbus RTU and CAN, enabling seamless integration between PLC and upper computer systems.
System configuration management: As an essential component of the rack (occupying slot 1 of Rack 3500), parameters such as alarm thresholds and sampling frequencies can be configured through the System 1 monitoring software without affecting the security of the core monitoring link.
Model Code Analysis
Explanation of the meaning of the model segment
3500 Product Series (Bently Nevada 3500 Vibration monitoring System)
22M module type (22-channel transient data interface)
Specific model code of 288055-01 (hardware version identification)
Key technical parameters
Electrical and performance parameters
Specific specifications of parameter categories
The channel configuration is 22 channels, supporting both analog and digital input and output
The sampling performance features a maximum sampling rate of 256kHz, with an accuracy of ±0.05% (speed) and ±1% (vibration).
Communication interface: 100Base-FX Ethernet (default), RS232/485 serial port
The maximum Ethernet transmission rate for data is 1Mbps
The power supply requirement is 220V AC, and the power consumption is 10.5W
Input types: E/J/K/T type thermocouple, two-wire/three-wire RTD, incremental encoder signal
Output types: analog quantity, digital quantity, relay contact output
Environment and physical parameters
Operating temperature: -40°C to + 85°C (Wide temperature design, suitable for extreme industrial environments)
