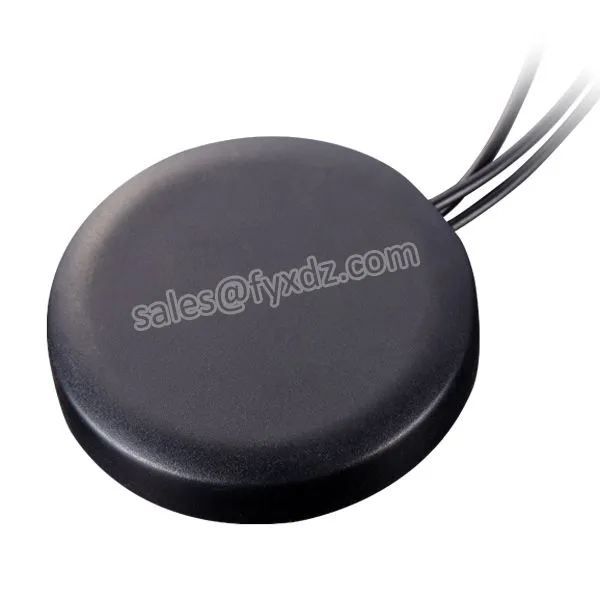

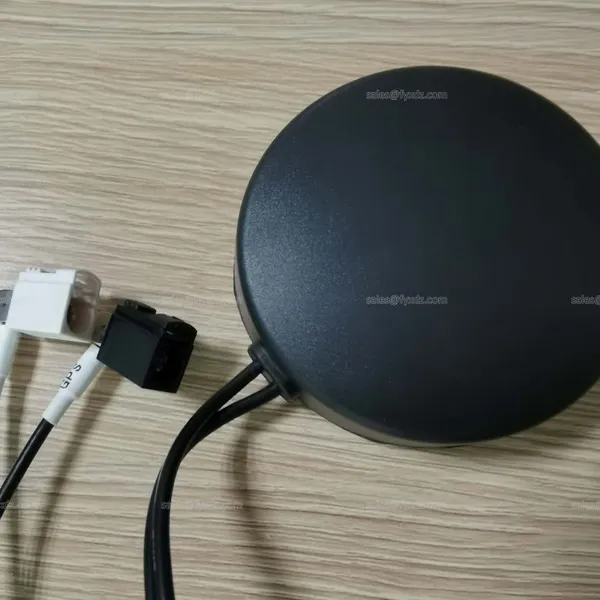

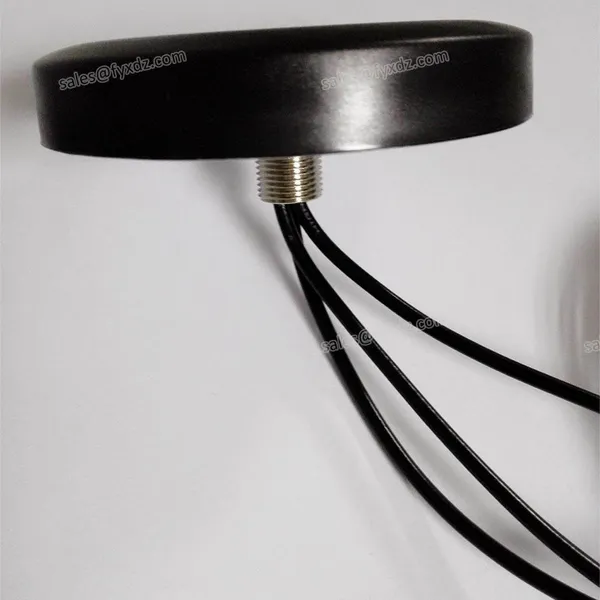

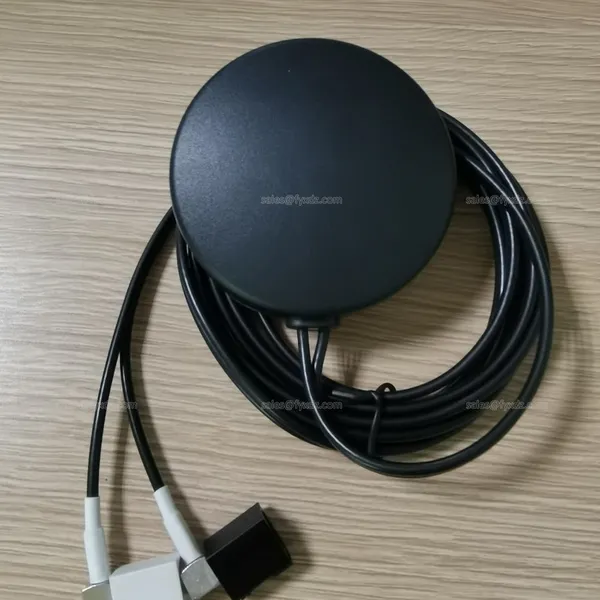

Combo 4G LTE Cellular GNSS Adhesive Magnetic Mount Antenna for Vehicle Car Truck Bus 2 in 1 MIMO Antenna
Application: The GPS Glonass LTE Combination Antenna is used in automotive electronics, vehicle positioning, navigation, anti-theft, area measurement, monitoring devices, etc.; emerging electronic products and consumer electronics, which need to enhance the navigation, such as handheld navigation devices, tablet computers, etc.
Product Details - GNSS Glonass LTE Combo Antenna
I. Electrical Specifications
Frequency range (MHz): GNSS/GLONASS: 1575.42/1602MHz; LTE: 700-960/1710-2700MHz
Gain: GPS+GLONASS: 28dBi; LTE: 2dBi
Polarization type: RHCP (right-handed circularly polarized)
VSWR: ≤2.0
Input impedance (Ω): 50
DC voltage (V): 3.0-5.0
DC current (mA): 5~15
Input connector type: GPS+GLONASS with Fakra C; LTE with Fakra D
II. Mechanical Specifications
Dimensions (mm): 80x14.5mm
Cable length (mm): RG174, 3000mm
Operating temperature(°C): -40～75
Housing color: Black
Waterproof: IP66

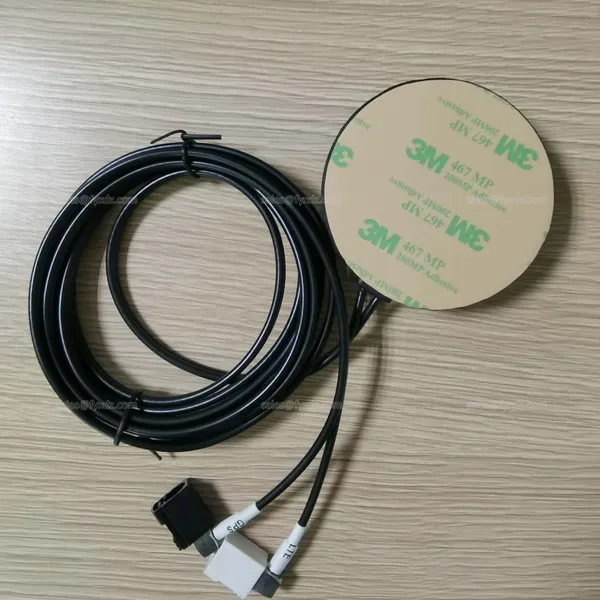

Installation method: Magnetic Mount or adhesive mount
RoHS compliant
