Home > Electrical & Electronics > Antenna > Communication Antenna > GNSS Antenna GPS Glonasss Receiver BNC External Marine Fish Boat Marine Antenna

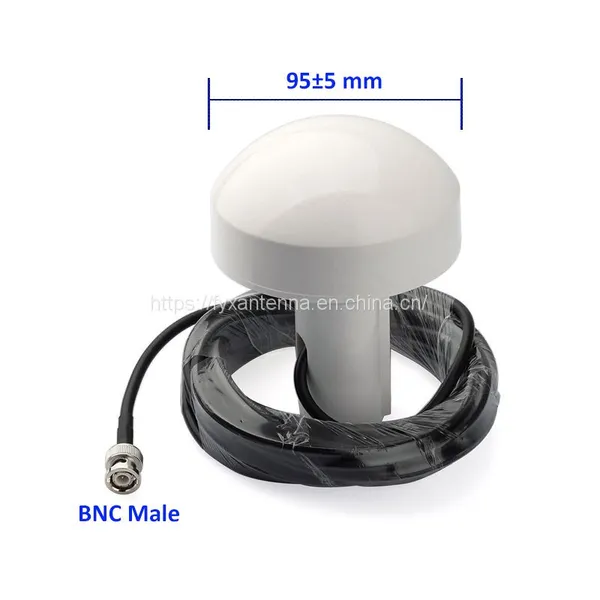

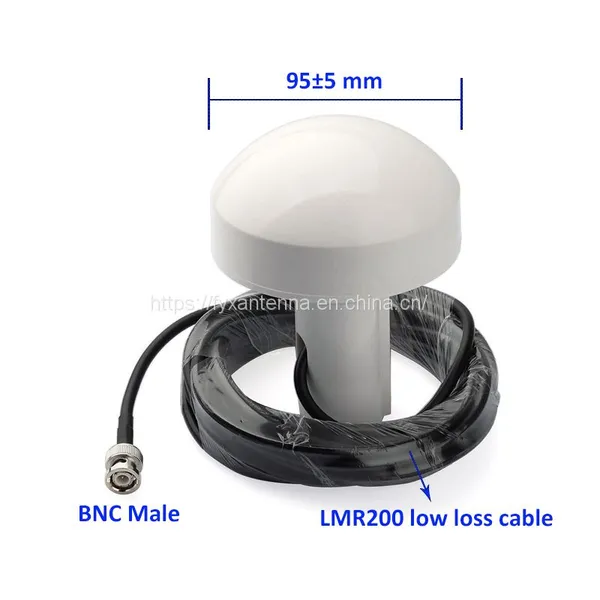

GNSS Antenna GPS Glonasss Receiver BNC External Marine Fish Boat Marine Antenna
US$ 10 - 16
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Feiyuxin
Place of Origin:
China
Model Number:
FYX-GPS03
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMD GPS Module Active Ceramic Patch RF Antenna 18x18x4 mmUS$ 1.15 - 1.59MOQ: 1000 Pieces -
GNSS Receiver GPS GLONASS L1 Antenna Adhesive Magnetic MountUS$ 1.2 - 1.9MOQ: 500 Pieces
-
Iridium Antenna Patch 1616-1626MHz Roof Screw Mount AntennaUS$ 1.8 - 2.4MOQ: 500 Pieces
-
Active GPS GLONASS Antenna Tracking Ceramic Patch Magnetic Base Chip ReceiverUS$ 1.3 - 1.9MOQ: 1000 Pieces
-
MCX Male Plug Car Auto GPS Active Navigation AntennaUS$ 1.7 - 2.6MOQ: 1000 Pieces
Brand Name
Feiyuxin
Place of Origin
China
Model Number
FYX-GPS03
GNSS Antenna GPS Glonasss Receiver BNC External Marine Fish Boat Marine Antenna
GPS GLONASS Marine Antenna Specifications
I. Electrical Specifications
Frequency range (MHz): GPS 1575.42 / GNSS 1602
Antenna LAN Gain (dBi): 28
Polarization type: RHCP (right-handed circularly polarized)
VSWR: ≤1.8
Input impedance (Ω): 50
DC voltage (V): 2.2-5.0
DC current (mA): 5~15
Input connector type: SMA, SMB, Fakra or customized
II. Mechanical Specifications
Dimensions (mm): 95x126mm
Cable length (mm): RG58, 0.3 meter
Operating temperature(°C): -40～75
Housing color: Black
Waterproof: IP66
Installation method: Pole mount
RoHS compliant
