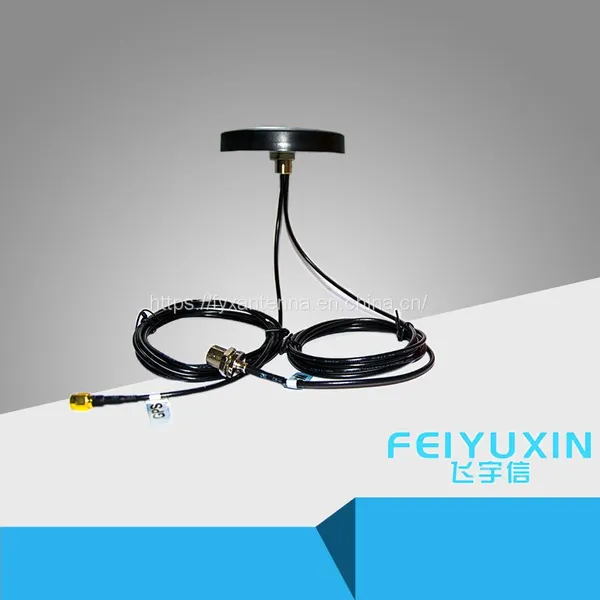

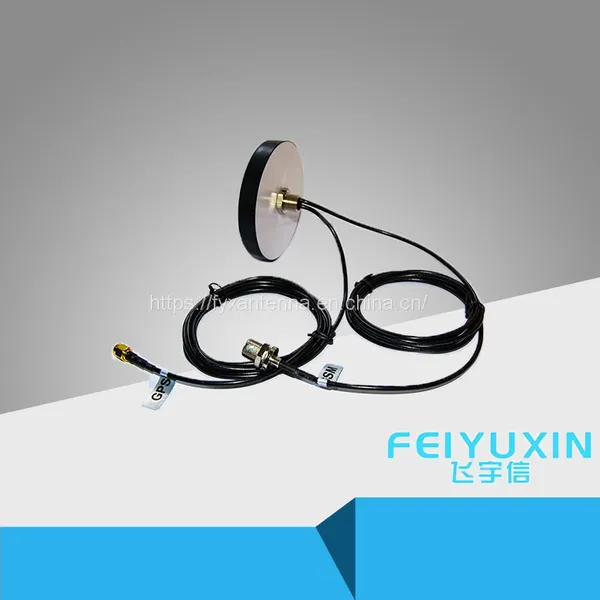

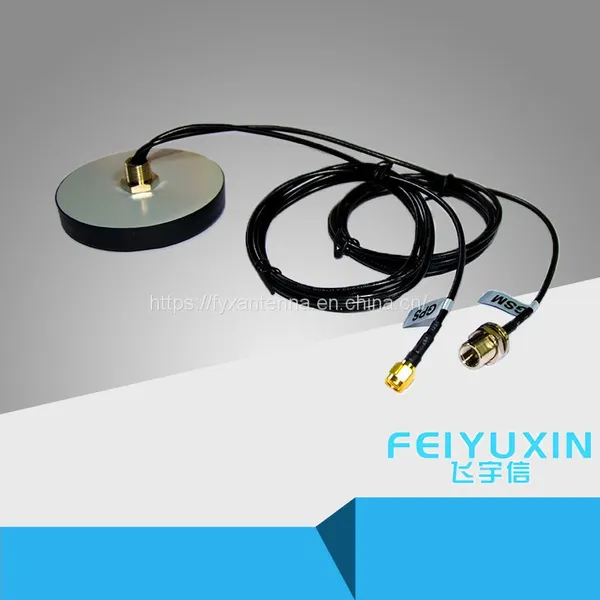

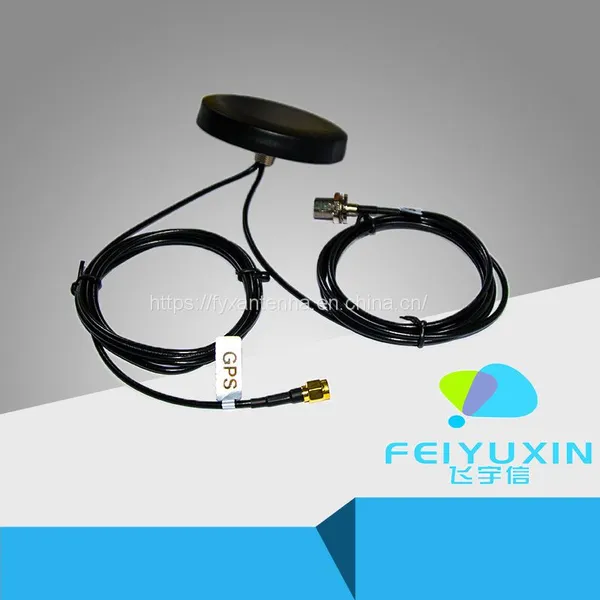

MIMO LTE GPS/Glonass 2 in 1 Combination Screw Mount Vehicle Antenna
GPS/Glonass+LTE Antenna Specifications
I. Electrical Specifications
GPS Glonass Frequency (MHz): 1575.42MHz / 1602MHz
Antenna LAN Gain (dBi): 28
Polarization type: RHCP (right-handed circularly polarized)
VSWR: ≤1.8
Input impedance (Ω): 50
DC voltage (V): 2.2-5.0
DC current (mA): 5~15
GSM Frequency (MHz): 700-960/1710-2700MHz
VSWR: ≤3.0
Gain (dBi): 2
Input connector type: SMA, SMB, Fakra or customized
II. Mechanical Specifications
Dimensions (mm): Φ80x15mm
Cable length (mm): RG174, 3000mm
Operating temperature(°C): -40～75
Housing color: Black
Waterproof: IP66
Installation method: Magnetic Mount or adhesive mount
RoHS compliant
