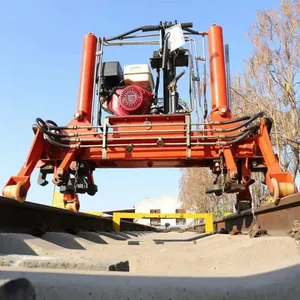

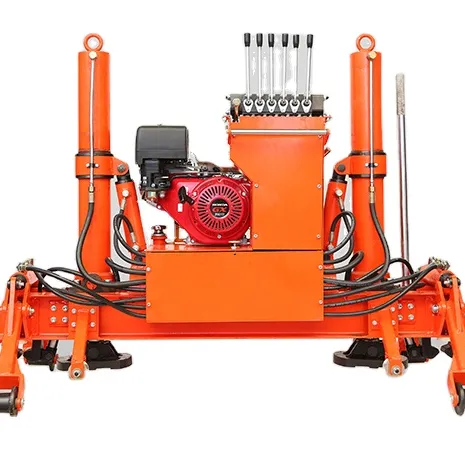

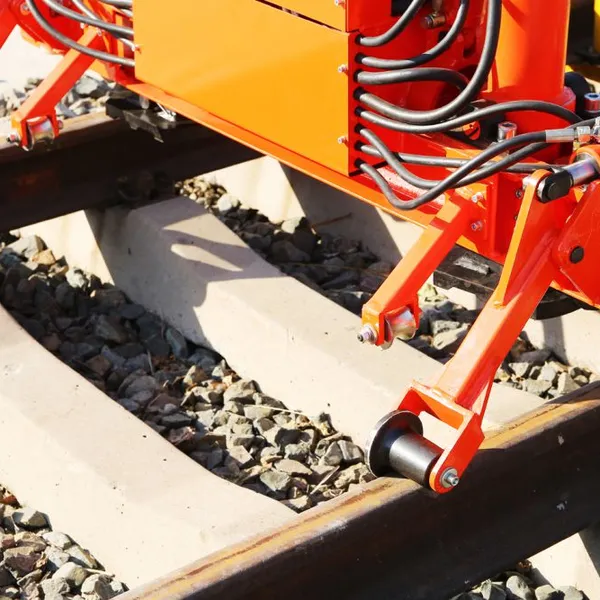

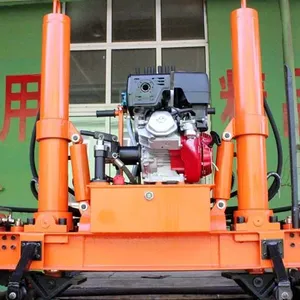

Yqbj-300*200II Hydraulic Rail Lifting and Lining Machine
US$ 3300 - 3500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
linkage
Place of Origin:
China
Model Number:
Yqbj-300*200II
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Related Products
-
Rail Tamping Machine Railway Ballast Tamper for Track Maintenance WorkNegotiableMOQ: 1 Set -
Automatic Hydraulic Rail Tamping MachineNegotiableMOQ: 1 Set
-
YCD-2 Hydraulic Railway Turnout Tamping Machine for Track MaintenanceNegotiableMOQ: 1 Set
-
Portable Rail Tamping Machine for Track Maintenance WorkNegotiableMOQ: 1 Set
-
Rail Petrol Ballast Tamper Machine EquipmentNegotiableMOQ: 1 Set
Brand Name
linkage
Place of Origin
China
Model Number
Yqbj-300*200II
Dimensions (L x W x H) (mm)
1916*980*1425mm
YQBJ-300*130 Railway Track Lifting Machine
This product has the fuction of lifting and lining. Its structure is simple, light, flexible, safe and reliable. This machine is
powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.
powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.
PRODUCT SPECIFICATIONS
item |
YQBJ-300*130 |
Type |
rail lifting & lining machine |
Material |
stainless steel |
Dimensions (L x W x H) (mm) |
1750*900*1500mm |
Place of Origin |
China |
weight |
550kg |
warrange |
1 year |
Max. lifting force |
150KN*2 |
Max. lining force |
130KN |
Max. lifiting stroke |
1020mm |
| Max. lining stroke | ≥310mm/time |
| System pressure | 20Mpa |
| Working force | ≤200KN |
