Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine

Wuhan Linkage Track Equipment Co.,Ltd
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine thumbnail-1
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine thumbnail-2
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine thumbnail-3
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine thumbnail-4
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine thumbnail-5
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine photo-1
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine photo-2
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine photo-3
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine photo-4
Electric Rail Drilling Machine Railroad Drill Machine Light Weight Rail Drill Machine photo-5
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
linkage rail
Place of Origin:
China
Model Number:
LJ-LDG1901
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name linkage rail
Place of Origin China
Model Number LJ-LDG1901
Material Stainless Steel
Dimensions (L x W x H) (mm) 515*148*390mm

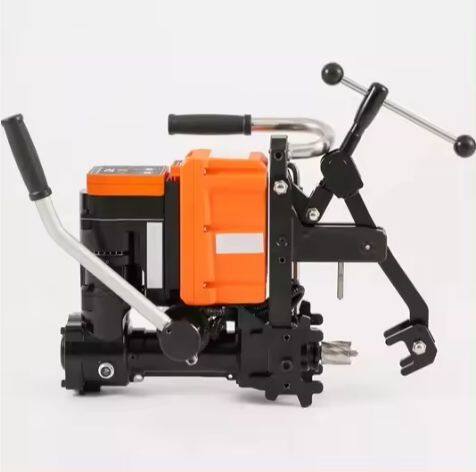

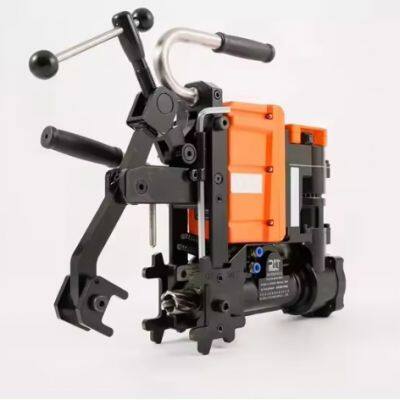

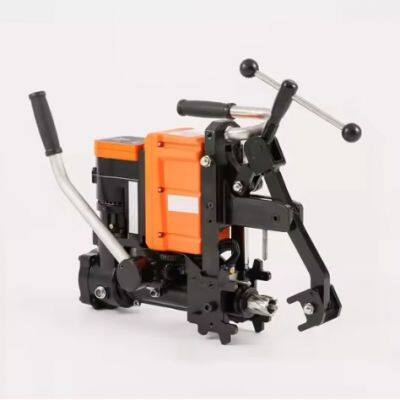

LJ-LDG1901 Electric Rail Drilling Machine
36V Intelligent lithium battery rail drilling machine
*Fully waterproof design, support rainy day work
*Clean energy, green and pollution-free
*Intelligent control system, keeps drilling at a constant speed, and displays the number of holes with remaining power
*Super endurance capability : Drilling more than 40 holes each charge (31 mm diameter hole)
Drilling more than 110 holes each charge (13.5 mm diameter hole)
Drilling more than 180 holes each charge (9.8 mm diameter hole)
*Ultra-light weight, only 15.9 kg including battery
*Overload reminder and protection design
*Quick-change design of the drill bit, do not need any additional tools
Specification
Model
LJ-LDG1901
Type
Electric Rail Drilling Machine
Material
Alumilium
Dimensions (L x W x H) (mm)
515*148*390mm
Rotation rate
220-300rpm
Power of motor
2.8 KW
Drill bits range
Φ9.8mm-Φ32mm
Illumination
LED lights
Drill bit clamping
quick change (do not need any additional tools)
Weight
15.9 Kg (including battery pack ) 13.4 Kg (excluding battery pack)
Normal operating temperature requirements
minus 30°C to 45°C
Battery pack voltage
36V
Battery pack capacity
12Ah
Drilling time
<15 S ( 31 mm Diameter)
Waterproof rating of the whole machine
IP 45 ( safe to use in the rainy days)

Product Tags: Rail Drilling Machine , Electric Rail Drilling f , Light Weight Rail Drill Machine
