Help CenterSodium Hypochlorite Naclo Generator (0.8%)
Related Products
-
Offshore Electrolytic Seawater Chlorine Production SystemNegotiableMOQ: 1 Set -
MESH Seawater Electrochlorination NacloNegotiableMOQ: 1 Set
-
PPE Seawater Electrochlorination NacloNegotiableMOQ: 1 Set
-
Seawater Electrochlorine SystemNegotiableMOQ: 1 Set
-
Sodium Hypochlorite Naclo Generator (5%-15%)US$ 10000 - 100000MOQ: 1 Set
Chlorine Capacity: 50~800g/h
Water treatment Capacity:1~20MLD
Salt consumption: 3.5kg/kg Cl2
Power consumption: 4kw/kg Cl2
Plug-Play & Minimal Installation Operation
Full Automatic Running
Enhanced Electode Protection for Longer Shelflife
Triple Protection for Hydrogen gas emission

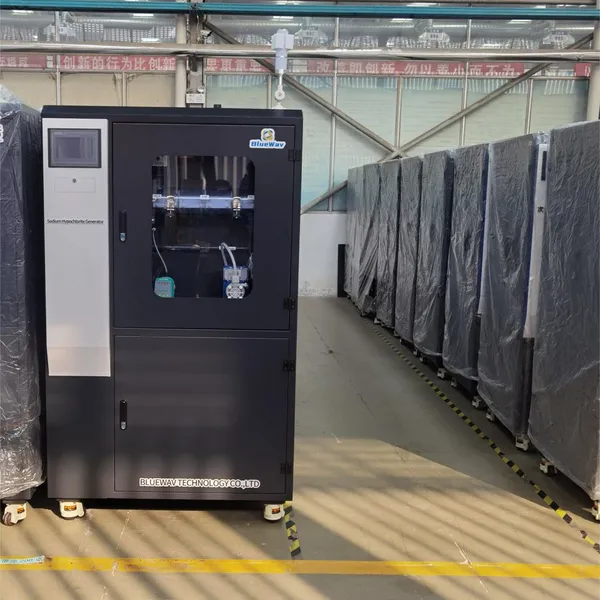

Sodium Hypochlorite Generator is a fully integrated, simple, and skid mounted designed system. The BLUEWAV® technology uses a recirculating method to produce 0.8% strength sodium hypochlorite solution in 556lb(250kg) – 4500lb(2000kg)
NaOCl/day by raw material input of Salt Brine.
How it installs
BLUEWAV® Skid-Mounted design target on provide minimal operator attention for a quick Plug-Play running on site.
Install on site:
Connect to the tap water pipeline;
Connect the chlorination pipeline;
Install hydrogen exhaust pipe
Switch on the power supply;
System Flow
①Influent water passes through a water softener to reduce hardness therefore reducing the scaling of electrodes and lengthening the cleaning time.
② Salt is dissolved by softened water into saturated brine in the tank.
③ The saturated brine will be diluted into 2.5%-3%, then pass through the electrolytic cell and finally be electrolyzed into 0.8% solution of sodium hypochlorite.
④ The 0.8% hypochlorite solution flows into a storage tank. Hydrogen, the only byproduct of the process, is safely vented to the atmosphere.
⑤ Accuracy liquid dosed and controlled by residual chlorine analyser.
