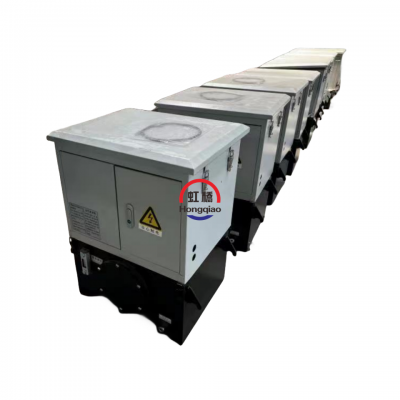

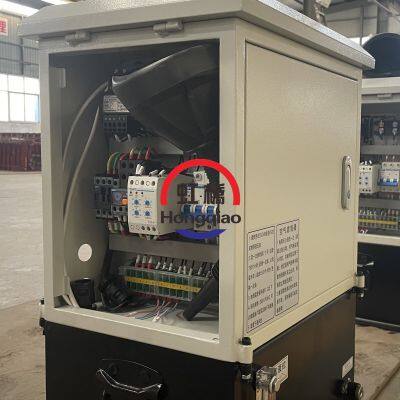

Power Pack with Accumulator Pressure Relay
- 10000 Piece / Pieces per Month
- Shanghai port/Qingdao port
- T/T
- 20 days
Product Details
Brand Name: | Hongqiao | Place of Origin: | China | Model Number: | YPA |
Product Description
1) Specific units:

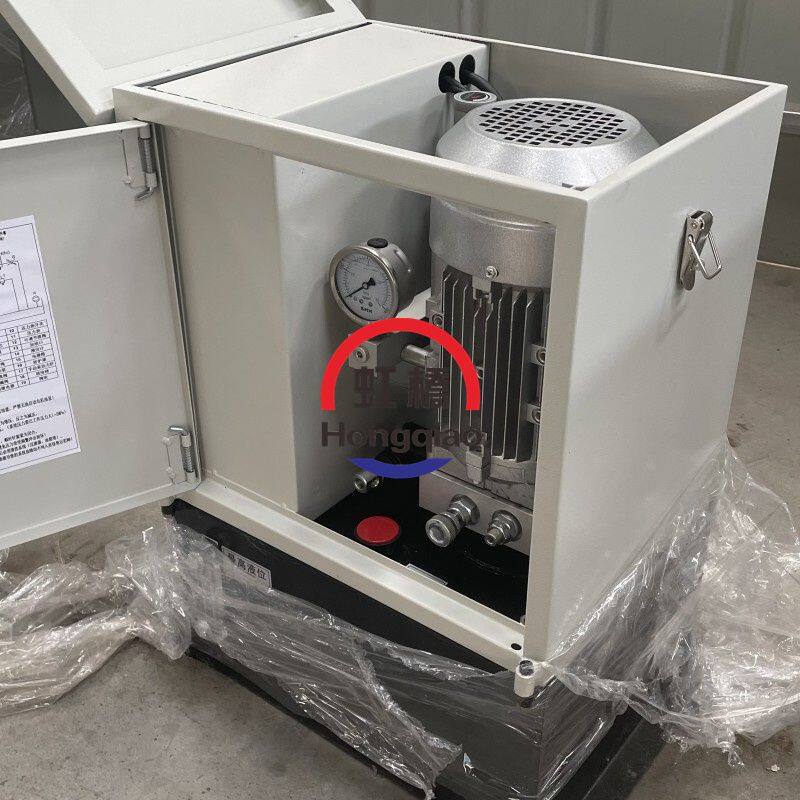

Hydraulic pump, driving motor, oil tank, directional valve, throttle valve and relief valve.
2) Service conditions:
Ambient temperature: 0 ºC - 40 ºC.
Working power supply of motor: three-phase, AC380V, 50HZ;
Pump station control power supply: AC220V, 50HZ (if other voltage is required, please specify in advance when ordering).
3) Sphere of application:
The compatible drive matched to the rail clamp
The compatible drive for the wheel brake
4) Elaborate characteristics:
1. The system have fuction of pressure compensation;
2. Emergency power source with hand pump in special conditions;
3. Advanced in hydraulic components
5) Extraordinary selling points:
Continuous recommendation of new products
Professional quotation with flexible payment term
Sophisticatedhird party inspection
Attentive after-sale service
6) Technical data:
Model | Rated pressure | Flow | Power of motor | volume of oil tank L | Motor power supply |
YPA2.2-15-4 | 5-15 | 4 | 2.2 | 20 | AC380V 50HZ |
YPA3-15-8 | 5-15 | 8 | 3 | 40 | AC380V 50HZ |
YPA4-20-8 | 10-20 | 8 | 4 | 40 | AC380V 50HZ |
YPA4-10-20 | 5-10 | 20 | 4 | 40 | AC380V 50HZ |
YPA5.5-15-20 | 10-20 | 20 | 7.5 | 80 | AC380V 50HZ |
